SAIL-VSCD-M8G-3-1.5U
SAIL-VSCD-M8G-3-1.5U
Dimensioned drawing
SAIL-VSCD-M8G-3-1.5U
Dimensioned drawing
Male, straight
SAIL-VSCD-M8G-3-1.5U
Pole scheme
SAIL-VSCD-M8G-3-1.5U
Pole scheme
M8 = none
SAIL-VSCD-M8G-3-1.5U
Wiring diagram

SAIL-VSCD-M8G-3-1.5U

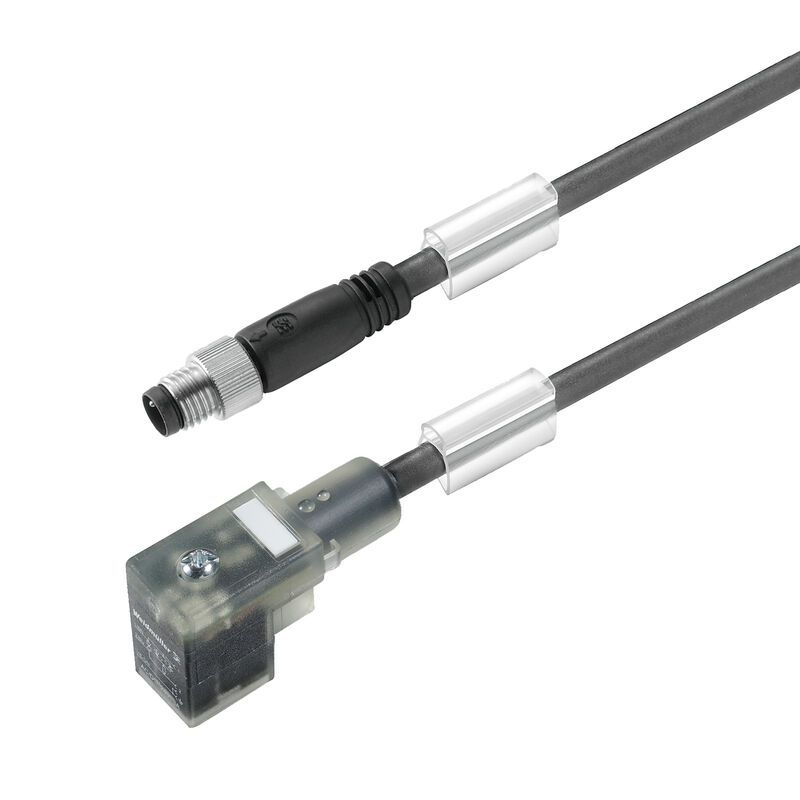

Valve cable (assembled), Straight plug - valve plug, DIN design C (8 mm), M8 = none, Cable length: 1.5 m, PUR, black

Ürün No. 1916700150
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Kábel műszaki adatai Általános műszaki adatok Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Valve cable (assembled), Straight plug - valve plug, DIN design C (8 mm), M8 = none, Cable length: 1.5 m, PUR, black
Číslo objednávky
1916700150
Type
SAIL-VSCD-M8G-3-1.5U
GTIN (EAN)
4032248550227
Qty.
1 adet

Dimensions and weights

Net weight
52 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Kábel műszaki adatai

Acceleration
5 m/s²
Bending cycles
2 Mio
Bending radius, min., moving
10 x średnica kabla
Bending radius, min., stationary
5 x диаметр кабеля
Cable length
1,5 m
Colour coding
brown
blue
Green/yellow
Core cross-section
0,5 mm²
Halogen
No
Insulation
PP
Number of poles
3
Outside diameter
4.6 mm ± 0.2 mm
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
200 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
Welding spark resistance
No

Általános műszaki adatok

All valve plugs are fitted with protective circuits
Diodo soppressore
Codierung
DIN design C (8 mm)
M8 = none
Kontaktoberfläche
tinned
LED
Yes
Nominal current
4 A
Nominal voltage
24 V
Protection degree
IP67
when screwed in
Rango de temperatura caja
-25…+80 °C
Tightening torque
Mounting screw M3: 0.4 Nm
M2.5 mounting screw: 0.3 Nm
M8: 0.5 - 0.6 Nm
Version
Straight plug - valve plug

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-12
ECLASS 15.0
27-06-03-12
