H10,0/22 EB
H10,0/22 EB
Detailed drawing

H10,0/22 EB

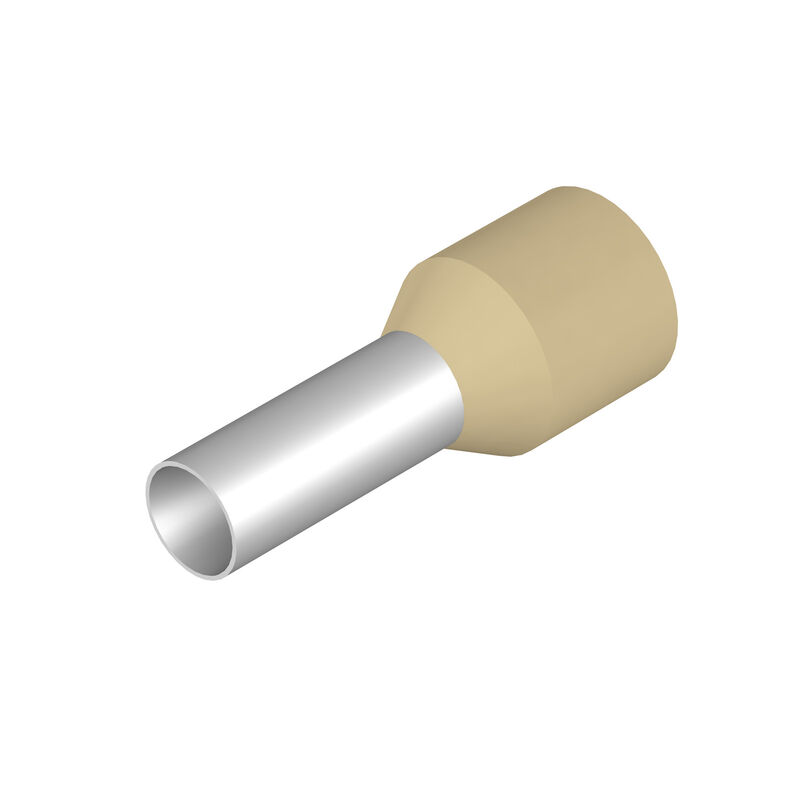

Wire-end ferrule, Standard, 15 mm, 12 mm, Ivory

Item No. 0534200000
Download data sheet Engineering Support Product Downloads
Is accessory of 7 Individual part of 4 Related products 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data Wire-end ferrules Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/bd70fd7c-25a7-46d9-a404-2588bf18d09f/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/b770a92f-60fd-42c9-876f-9d6366f8928c/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E499744

General ordering data

Version
Wire-end ferrule, Standard, 15 mm, 12 mm, Ivory
Order No.
0534200000
Type
H10,0/22 EB
GTIN (EAN)
4008190033460
Qty.
100 items
Packaging
loose

Dimensions and weights

Net weight
0,5 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Technical data

Description of article
Wire end ferrule with plastic collar, ivory
Version
Standard

Wire-end ferrules

Avisoleringslängd
15 mm
Colour code
Weidmueller
Conductor cross-section
10 mm²
Contact surface diameter (D1)
4,5 mm
Contact surface length (L2)
12 mm
L1 в мм
22 mm
Ledardiameter, AWG, max
AWG 8
Metallkapseltjocklek (S1)
0,2 mm
Диаметр изоляции (D2)
7,6 mm
Толщина изоляции (S2)
0,4 mm

Classifications

ETIM 8.0
EC000005
ETIM 9.0
EC000005
ETIM 10.0
EC000005
ECLASS 14.0
27-40-02-01
ECLASS 15.0
27-40-02-01
