一般注文データ

Version
, 수형, 400 V, 35 A, 극 수: 6, 액추에이터 탑재 PUSH IN, 설치 사이즈: 6
Order No.
3023960000
Type
HDC HSB 6 MP
GTIN (EAN)
4099986946545
Qty.
1 adet

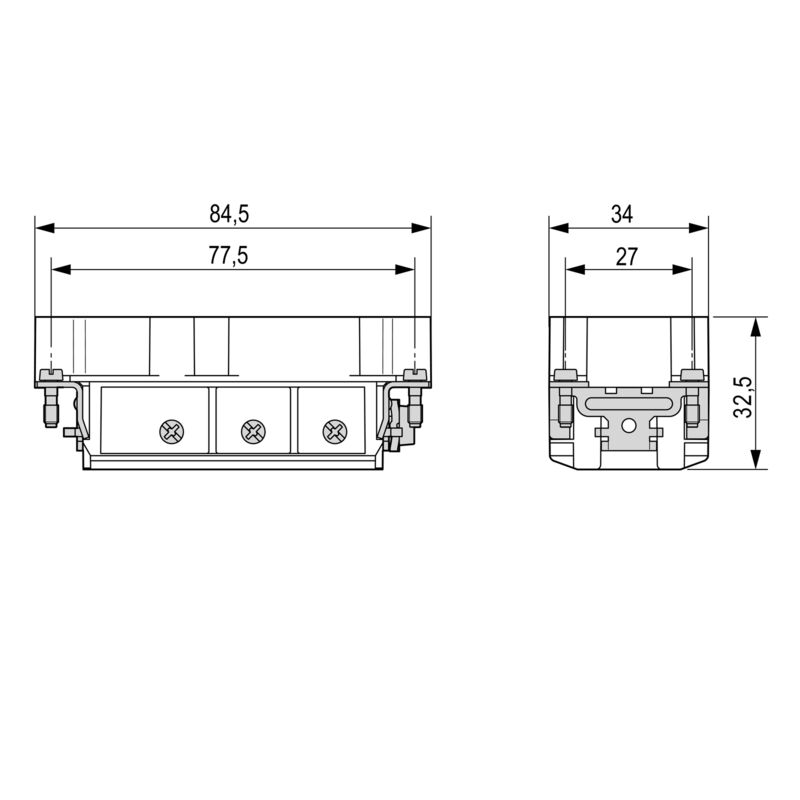

Dimensions and weights

Depth
84,5 mm
Depth (inches)
3,327 inch
Height
32,5 mm
Height (inches)
1,28 inch
Width
34 mm
Width (inches)
1,339 inch
Length
84,5 mm
Length (inches)
3,327 inch
Net weight
50 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions

Total length base
84,5 mm
Width
34 mm

General data

Anslutningstyp
PUSH IN with actuator
Antal poler
6
BG
6
Brännbarhetsklass enligt UL 94
V-0
Färgkod
beige
Genomgångsmotstånd (6)
≤2 mΩ
Grundläggande material
Copper alloy
Installationsstorlek
6
Isolationsmotstånd
1010 Ω
Isoleringsmaterial
PC glass-fibre reinforced (UL-listed and railway-certified)
Isoleringsmaterialgrupp
IIIa
Märkspänning (DIN EN 61984)
400 V
Märkstötspänning (DIN EN 61984)
6 kV
Märkström (DIN EN 61984)
35 A
Märkspänning enligt UL/CSA
600 V AC/DC
Märkspänning, ledare-PE (III/3)
400 V
Märkström (cUR)
  • Wire connection cross section AWG:
    AWG 10
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    8 A
Märkström (UR)
  • Wire connection cross section AWG:
    AWG 10
  • Rated current:
    35 A
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    8 A
Nedsmutsningsgrad
3
Nízká kouřivost podle DIN EN 45545-2
Yes
Número de contactos de potencia
6
Rated voltage conductor-conductor (III/3)
690 V
Serie
HSB
Stickcykler Ag
≥ 500
Stickcykler Au
≥ 500
Tightening torque, max. PE connection
2,5 Nm
Tightening torque, min. PE connection
2 Nm
Typ
Male
Yta
Silver passivated
Överspänningskategori
III
Tipo de protección
IP20

Connection data PE

Blade size, slotted (PE connection)
1 x 5.5
Connection type PE
Screw connection
Fixing screw
M 5
Rated cross-section
6 mm²
Stripping length PE connection
12 mm
Tightening torque, max. PE connection
2,5 Nm
Tightening torque, min. PE connection
2 Nm
Wire cross section, AWG (PE), max.
AWG 10
Wire cross section, AWG (PE), min.
AWG 20

Power contact

Märkspänning (DIN EN 61984) effektkontakt
6 V
Rated current (DIN EN 61984), power contact
35 A

Version

BG
6
Conductor cross-section, max.
6 mm²
Kés mérete, hornyos (csavaros csatlakozás)
SD 0.8 x 4.0
Powierzchnia
Silver passivated
Przekrój przyłącza przewodu, min.
1,5 mm²
Tipo di collegamento
PUSH IN with actuator
Основной материал
Copper alloy
볼륨 저항
≤2 mΩ
설치 사이즈
6

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
