HDC KIT HE-P 10.111 M

HDC KIT HE-P 10.111 M

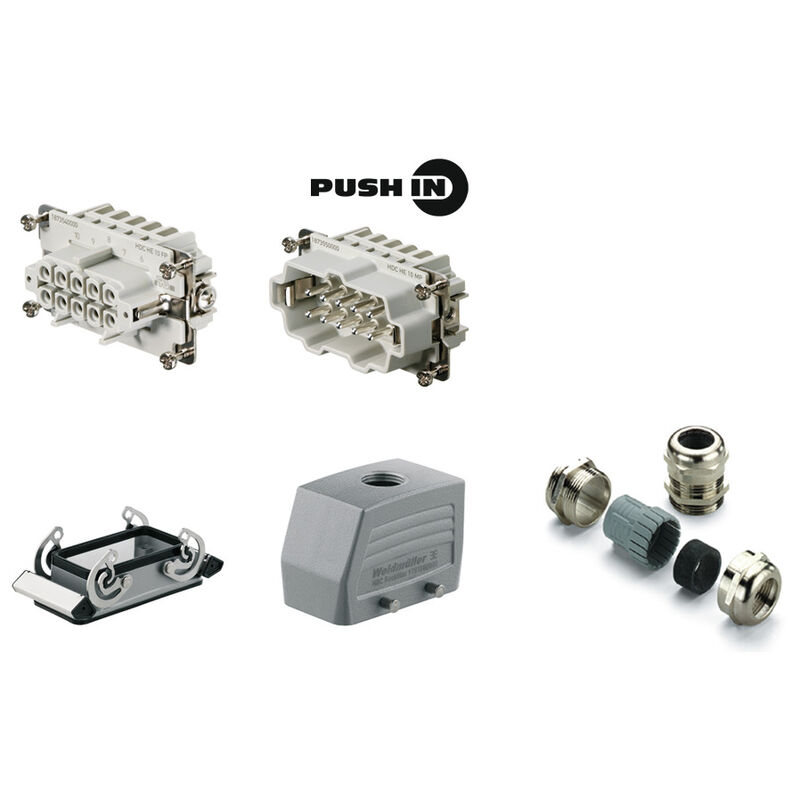

RockStar® HDC kits-Heavy-duty connectors, Kit, HE, Installation size: 4, Poles: 10, PUSH IN, 500 V, 16 A, diecast aluminium, M 25

Produkt ID 1061740000
Download datablad Engineering-support Produktdownloads
Tilbehør 1 Enkeltdele 5 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Version General data Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
RockStar® HDC kits-Heavy-duty connectors, Kit, HE, Installation size: 4, Poles: 10, PUSH IN, 500 V, 16 A, diecast aluminium, M 25
Order No.
1061740000
유형
HDC KIT HE-P 10.111 M
GTIN (EAN)
4032248816422
Qty.
1 Styk

Dimensions and weights

Net weight
446,16 g

Temperatures

Limit temperature
-40 °C ... 100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
Исключение из RoHS (если применимо/известно)
6c
REACH SVHC
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
bfb1c983-6f18-4ba4-8907-38aad6aee076

General data

Baureihe
HE
Provedení povrchu
Powder coating
Schutzart
IP65

Version

Barva (RAL)
RAL 7035
BG
4
Design of locking system
Side-locking clamp on lower side
Instalační velikost
4
Number of cable entry on top
0
Number of cable entry sideways
0
Size of cable entries
M 25
Type of connection
PUSH IN
Těsnění
NBR

General data

Anschlussart PE
Screw connection
Basic material
diecast aluminium
BG
4
Cable gland
M 25
Corriente nominal (DIN EN 61984)
16 A
Installation size
4
Number of poles
10
Rated voltage (DIN EN 61984)
500 V
Series
HE

Version

Basic material
diecast aluminium
BG
4
Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
0,5 mm²
Installation size
4
Surface finish
Powder coating
Type of connection
PUSH IN

Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-44-02-92
ECLASS 15.0
27-44-02-92
