IE-CC-NM-RPSMAM-1M

IE-CC-NM-RPSMAM-1M

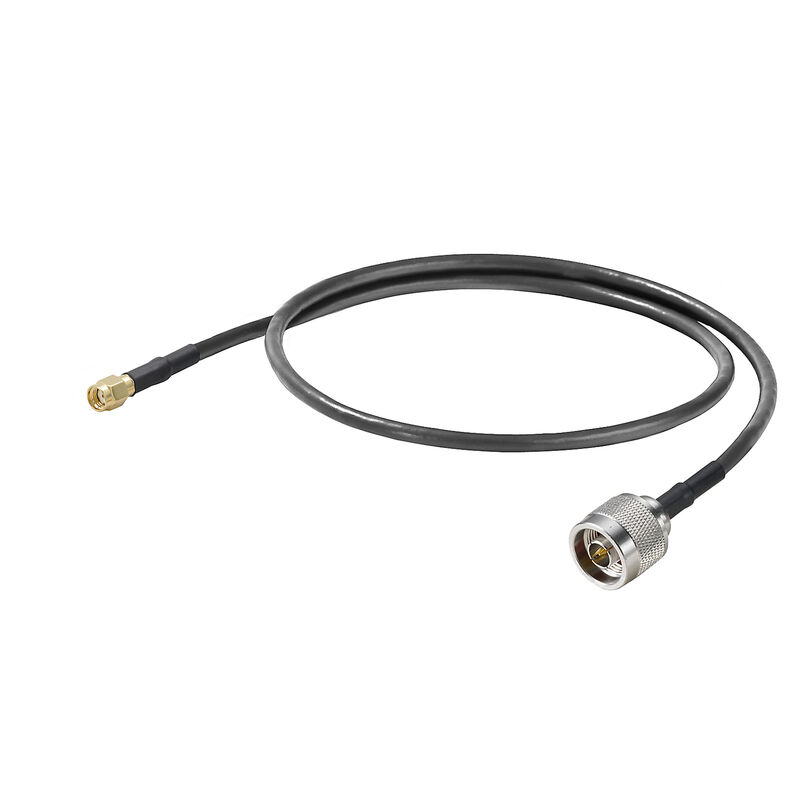

Antenna cable, Connection 1:, N male, Connection 2:, RP-SMA male, Length: 1 m

Tuotteen tunnus 2788040000
Lataa tietosivu Tuotelataukset
On lisävaruste 4 Samankaltaiset tuotteet 27
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Electrical properties of cable Mechanical and material properties of cable Technical data Environmental conditions Classifications

Approvals

ROHS
Conform

General ordering data

Version
Antenna cable, Connection 1:, N male, Connection 2:, RP-SMA male, Length: 1 m
Order No.
2788040000
Type
IE-CC-NM-RPSMAM-1M
GTIN (EAN)
4064675066309
Qty.
1 items

Dimensions and weights

Длина
1 m
Length (inches)
39,37 inch
Net weight
66,5 g

Temperatures

Operating temperature
-40 °C...85 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Electrical properties of cable

Attenuation at 2.4 GHz
0.62 dB/m
Attenuation at 2000 MHz
0.56 dB/m
Attenuation at 5 GHz
0.94 dB/m
Attenuation at 800 MHz
0.34 dB/m

Mechanical and material properties of cable

Barva opláštění
black
Material del revestimiento
PVC
Rayon de courbure min, multiple
25 mm
Sheath diameter
5 mm
UV-resistant
Yes

Technical data

Typ připojení
Connection 1:
N male
Connection 2:
RP-SMA male

Environmental conditions

Operating temperature, max.
85 °C
Operating temperature, min.
−40 °C

Classifications

ETIM 8.0
EC001682
ETIM 9.0
EC001682
ETIM 10.0
EC001682
ECLASS 14.0
27-06-03-10
ECLASS 15.0
27-06-03-10
