SAI-M23-KSC-L-2.5-4.0

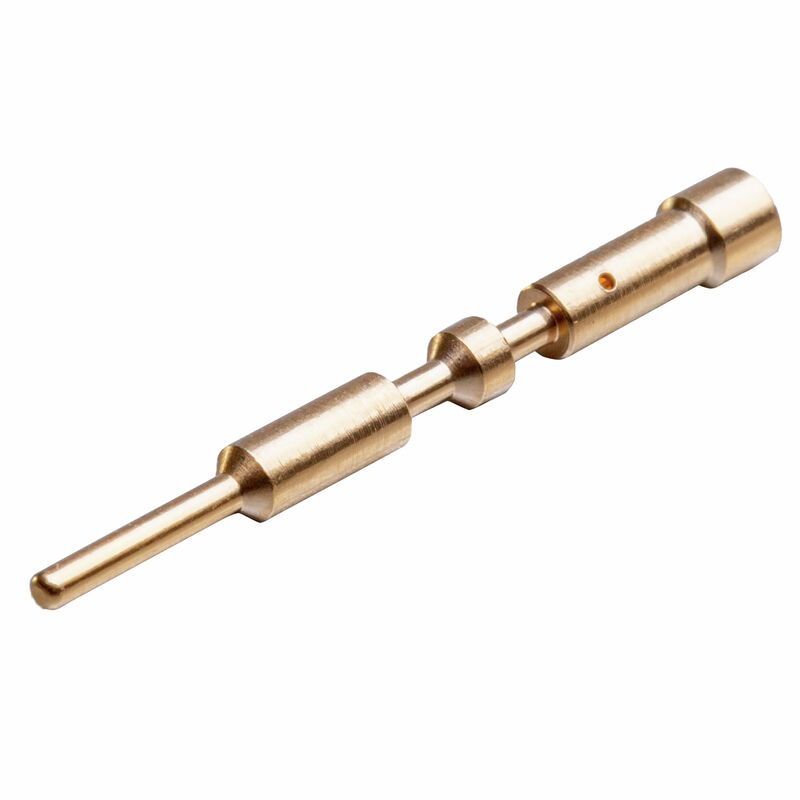

Similar to illustration
SAI-M23-KSC-L-2.5-4.0

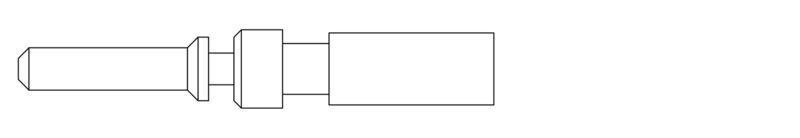

Drawing

SAI-M23-KSC-L-2.5-4.0

Tämä tuote ei ole pian enää saatavana.

Viimeinen tilauspäivä: /Date(1798671600000)/

Sensor/Actuator plug-in connector, Crimp contact

Tuotteen tunnus 1170410000
Lataa tietosivu Tekninen tuki
Lisävarusteet 1 On lisävaruste 3 Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Impostazioni di Pinza crimpatrice SAI M23 Technical data customisable plug-in connectors Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Zertifikat-Nr. (UR)
E344862

General ordering data

Ausfuehrung
Sensor/Actuator plug-in connector, Crimp contact
Order No.
1170410000
Type
SAI-M23-KSC-L-2.5-4.0
GTIN (EAN)
4032248962525
Qty.
50 items

Dimensions and weights

Délka
25,1 mm
Length (inches)
0,988 inch
Net weight
0,704 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Impostazioni di Pinza crimpatrice SAI M23

Settings regarding SAI M23 crimping tool
  • Crimping Tool:
    1
  • Положение держателя:
    7
  • Crimpkontakt:
    Crimp pin power 2 mm
  • Crimping mandrel adjustment acc. to mm²:
    • Wire cross-section:
      2,5 mm²
    • Crimping mandrel adjustment:
      1.47
    • Wire cross-section:
      4 mm²
    • Crimping mandrel adjustment:
      1.6

Technical data customisable plug-in connectors

Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
2,5 mm²
Contact material
Alliage cuivre et zinc
Contact surface
doré
Gender of contact
Érintkező
Insulation resistance
> 1010 Ω
Plugging cycles
> 1000
Type of connection
Crimp connection

Classifications

ETIM 8.0
EC000796
ETIM 9.0
EC000796
ETIM 10.0
EC000796
ECLASS 14.0
27-44-02-92
ECLASS 15.0
27-44-02-92
