SAIL-M12BW-3-20U
SAIL-M12BW-3-20U
Méretrajz
Angled socket
SAIL-M12BW-3-20U
Póluskiosztás
Socket
SAIL-M12BW-3-20U
Kapcsolási rajz

SAIL-M12BW-3-20U

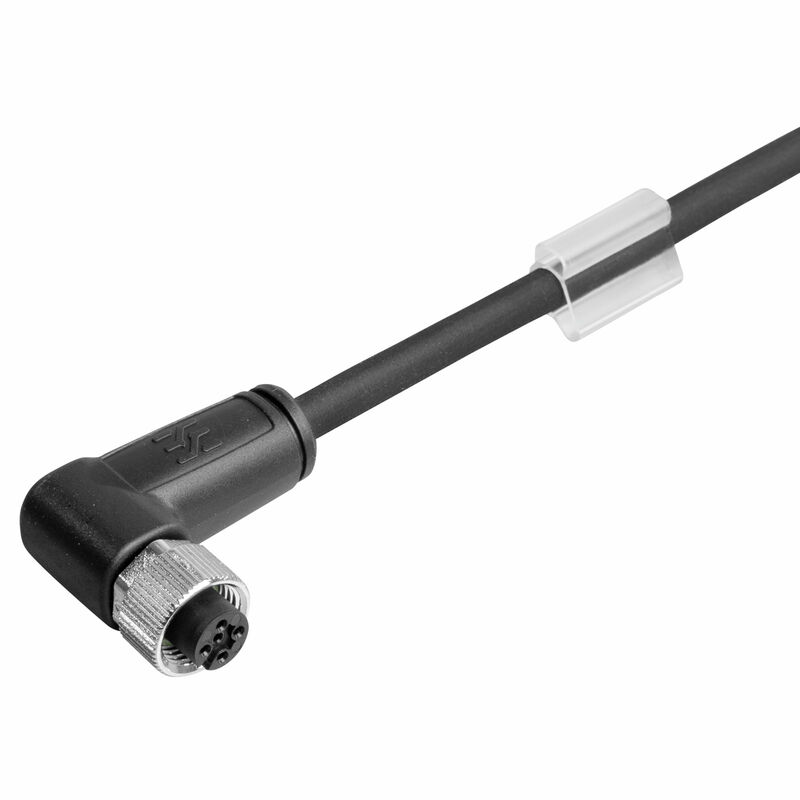

Sensor/actuator line, One end without connector, M12, Number of poles : 3, 20 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

ID výrobku 9457322000
Stáhnout datový list Engineering-support Produktdownloads
Tilbehør 6 Anvendte produkter 12
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 3, 20 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457322000
Type
SAIL-M12BW-3-20U
GTIN (EAN)
4032248877829
Qty.
1 Styk

Dimensions and weights

Net weight
423,28 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Aislamiento
PP
Apantallado
No
Apto para cadena de arrastre
Yes
Bending cycles
12 Mio
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Color de revestimiento
black
Configurable cable length
No
Csavarási ellenállás
180 °/m
Hajlítási ciklusok csavart
> 5 Mio.
Halógenos
No
Hegesztésnek ellenálló
No
Hydrolysis and microbe resistant
Yes
Irradiation crosslinked
No
Kabel hybrydowy
No
LABS-free
Yes
Length of torsion
1 m
Longitud de cable
20 m
Number of poles
3
Número de conductores
3
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Outside diameter
3.8 mm ± 0.15 mm
Rdzeń zgodnie z UL AWM style
10493 (80 °C / 300 V)
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Resistencia al aceite
in accordance with IEC 60811:404
Sección del conductor
0,34 mm²
Sheath material
PUR
Sheath material hygroscopic
Yes
Speed
3,33 m/s
Színkód gyűrű
brown
blue
black
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Welding spark resistance
No
가속
5 m/s²

General technical data

AF size
12 mm
Coding
A-coded
Connection thread
M12
Contact material
Copper alloy
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Socket, angled

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
250 V

General standards

Conector norma
IEC 61076-2-101
N.º de certificado (cULus)
E307231

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, Number of poles: 3, female contact, angled 0°, plug, unshielded

Plug, right

Plug right
Free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
