SAIL-M12GM12G-CD-0.5A
SAIL-M12GM12G-CD-0.5A
尺寸图
Male, straight
SAIL-M12GM12G-CD-0.5A
Rozměrový výkres
Straight socket
SAIL-M12GM12G-CD-0.5A
Schéma pólů
M12, pin, A-coded
SAIL-M12GM12G-CD-0.5A
Schéma pólů
Socket
SAIL-M12GM12G-CD-0.5A
Schéma připojení
SAIL-M12GM12G-CD-0.5A
Ideální nástroj: Screwty ® s momentovou funkcí
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12GM12G-CD-0.5A

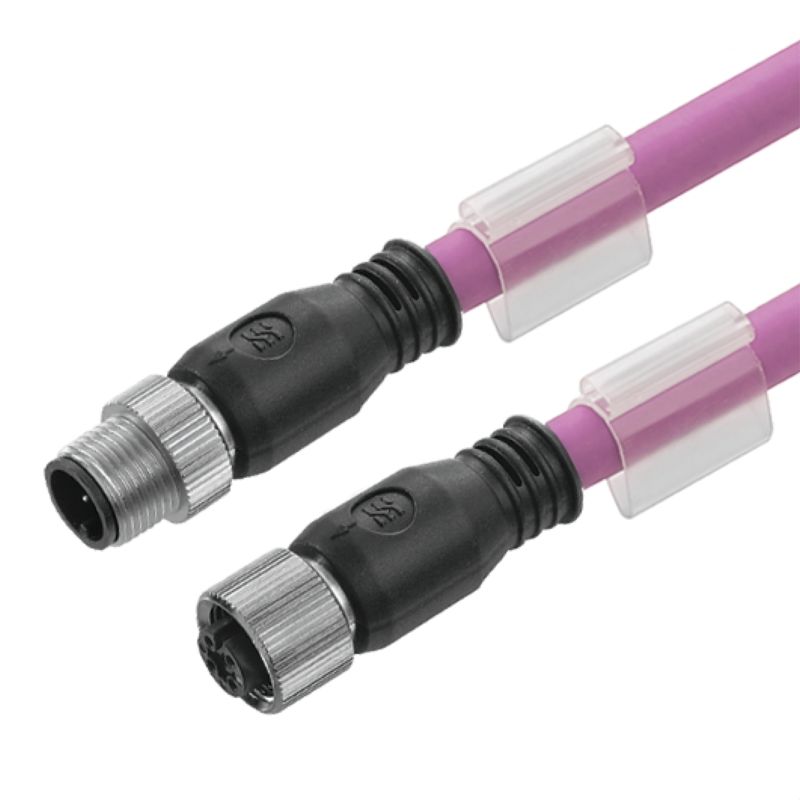

Bus line, Connecting line, M12 / M12, Number of poles: 5, 0.5 m, pin, straight - socket, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 1964710050
Veri sayfasını indir Ürün İndirmleri Mühendislik desteği
İlgili ürünler 16
Approvals General ordering data Dimensions and weights Environmental Product Compliance Tekniska data för kabel Allmänna tekniska data Electrical properties General standards Plug, left Plug, right Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat-Nr. (cULus)
E307231

General ordering data

Utförande
Bus line, Connecting line, M12 / M12, Number of poles: 5, 0.5 m, pin, straight - socket, straight, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Art.nr.
1964710050
Typ
SAIL-M12GM12G-CD-0.5A
GTIN (EAN)
4050118336160
Qty.
1 adet

Dimensions and weights

Längd
0,5 m
Length (inches)
19,685 inch
Net weight
59 g

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Tekniska data för kabel

Acceleration
7 m/s²
Antal poler
5
Bestrålning tvärbunden
No
Beständighet mot svetsgnistor
No
Cavi ibridi
Yes
Couleur de la gaine
violet
Cykle gięcia
5 Mio
Färkodning
red
black
white
blue
Hajlítási sugár, min., mozgó
10 x cable diameter
Halogen
No
Insulation
PE
Longueur du câble
0,5 m
Lunghezza cavo configurabile
No
Materiale della guaina
PUR
Sezione del conduttore
0,34 mm²
Shielded
Yes
Suitable for cable carriers
Yes
Säker mot svetsstänk
No
Temperaturområde, rörligt
-20...80 °C
Tenue aux huiles
EN 50363-10-2
Vezeték keresztmetszet (nyomtatás/online)
2 x 0.34 mm² + 2 x 0.22 mm²
Ytterdiameter
6.9 mm ± 0.3 mm
Огнестойкость
in accordance with IEC 60332-1-2
In accordance with UL1581 UL/ CUL FT1
와이어 개수
5

Allmänna tekniska data

Anslutningsgänga
M12 / M12
Contact material
CuZn35PB2
jumpered
No
Kódolás
A-coded
LED
No
Materiał pierścienia gwintowanego
Brass, nickel-plated
Moment dokręcający
M12: 0.8 - 1.2 Nm
Nominal current
4 A
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
Superficie dei contatti
Gold-plated
Versione
pin, straight - socket, straight
Zakres temperatury obudowy
-25…+85 °C
공칭 전압
125 V
하우징 기본 재질
PUR

Electrical properties

Номинальное напряжение
125 V

General standards

Conector norma
IEC 61076-2-101
N.º de certificado (cULus)
E307231

Plug, left

Stickkontakt vänster
M12, A-coded, Number of poles: 5, male contact, straight, plug, shielded

Plug, right

Wtyk po prawej
M12, A-coded, Number of poles: 5, female contact, straight, plug, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
