SAIL-M8BW-3-1.2U
SAIL-M8BW-3-1.2U
Dimensioned drawing
Angled socket
SAIL-M8BW-3-1.2U
Pole scheme
Socket
SAIL-M8BW-3-1.2U
Wiring diagram

SAIL-M8BW-3-1.2U

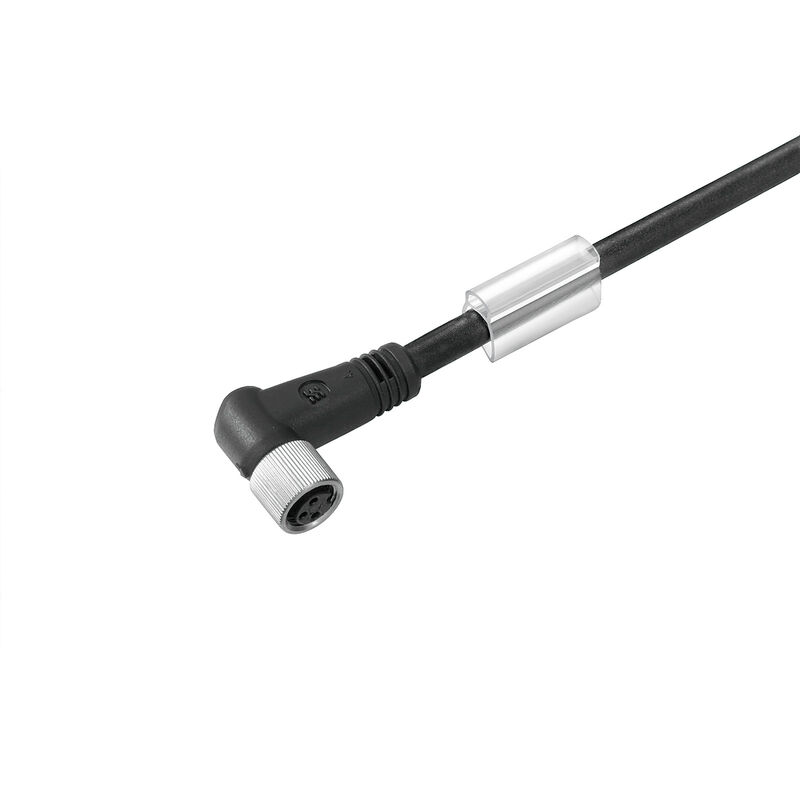

Sensor/actuator line, One end without connector, M8, Number of poles : 3, 1.2 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 9457380120
Download datablad Engineering Support Product Downloads
Tilbehør 6 Anvendte produkter 13
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Connettore maschio sx Connettore maschio dx Product images Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Versione
Sensor/actuator line, One end without connector, M8, Number of poles : 3, 1.2 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457380120
Tipo
SAIL-M8BW-3-1.2U
GTIN(EAN)
4032248228874
Qty.
1 Styk

Dimensions and weights

Diameter
3,6 mm
Net weight
32 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Biegezyklen
5 Mio
Cable length
1,2 m
Campo delle temperature, posa fissa
-50...80 °C
Campo delle temperature, posa mobile
-25...60 °C
Cicli di flessione a torsione
> 5 Mio.
Codifica a colori
brown
blue
black
Core cross-section
0,25 mm²
Diametro esterno
3.6 mm + 0.15 mm
Filo di drenaggio integrato
No
Guaina secondo UL AWM Style
20549 (80 °C / 300 V)
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
Irradiazione con legami trasversali
Ne
Lunghezza cavo configurabile
No
Lunghezza della torsione
1 m
Materiale della guaina
PUR
Nucleo secondo UL AWM Style
10493 (80 °C / 300 V)
Numero di poli
3
Resistance to oils
Yes
Resistance to spread of flame
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2
Resistente alle perle di saldatura
Nej
Resistenza alla torsione
180 °/m
Resistenza alle scintille di saldatura
No
Sheathing colour
black (similar to RAL 9005)
Shielded
No
Suitable for cable carriers
Yes
Vitesse
3,33 m/s

General technical data

Coding
A-coded
Connection thread
M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
Ne
LED
Nein
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
se avvitato
IP69
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M8: 0.5 - 0.6 Nm
Version
Socket, angled

Electrical properties

Resistenza d'isolamento
108 Ω
Tensione nominale
60 V

General standards

Certificate No. (CSA)
200039-2372994
Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-104

Standards

Connector standard
IEC 61076-2-104

Connettore maschio sx

Plug left
M8, IP69, Contatto femmina, Angolato a 90°, Plastica, non schermate

Connettore maschio dx

Plug right
estremità conduttore libera

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
