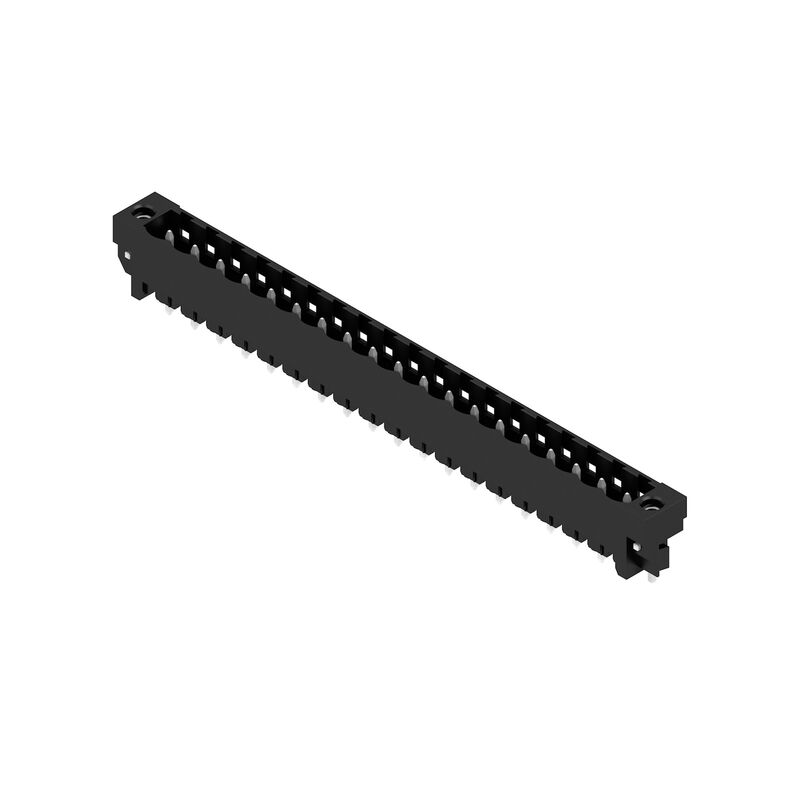

Product image
SL 5.08HC/19/180LF 3.2SN BK BX

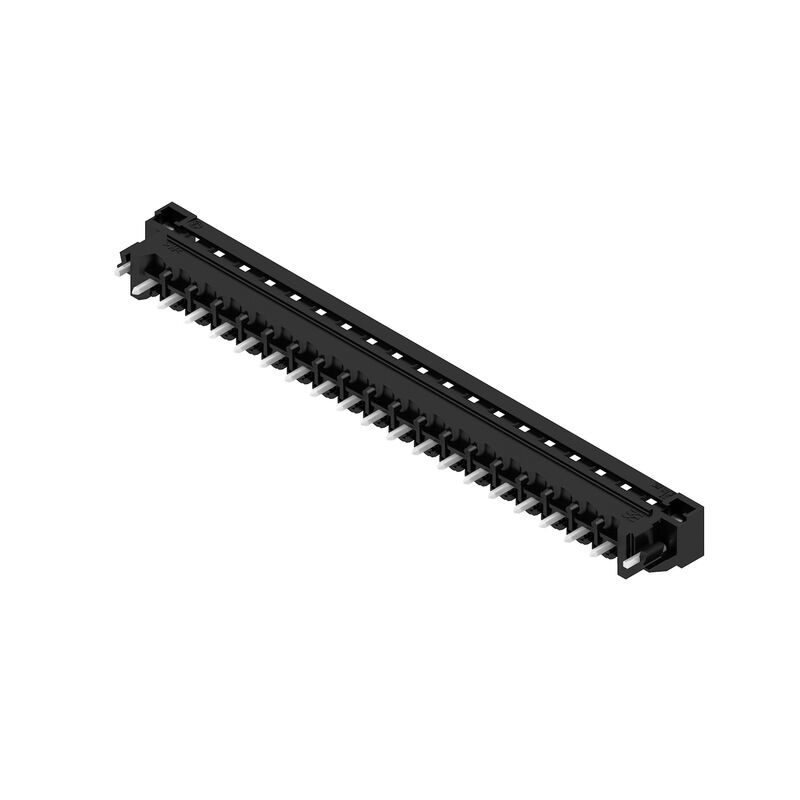

Product image
SL 5.08HC/19/180LF 3.2SN BK BX
Dimensional drawing
SL 5.08HC/19/180LF 3.2SN BK BX
Product benefits
Safe power transmission
Proven properties
SL 5.08HC/19/180LF 3.2SN BK BX
Graph
SL 5.08HC/19/180LF 3.2SN BK BX
Graph
SL 5.08HC/19/180LF 3.2SN BK BX
Graph

SL 5.08HC/19/180LF 3.2SN BK BX

Tämä tuote ei ole enää saatavana.

PCB plug-in connector, male header, Solder flange, THT solder connection, 5.08 mm, Number of poles: 19, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box

Tuotteen tunnus 1149790000
Lataa tietosivu Tekninen tuki Tuotelataukset
On vastine kohteelle 3 Samankaltaiset tuotteet 18
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, Solder flange, THT solder connection, 5.08 mm, Number of poles: 19, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box
Order No.
1149790000
Type
SL 5.08HC/19/180LF 3.2SN BK BX
GTIN (EAN)
4032248933228
Кол.
12 items
Product data
IEC: 400 V / 24 A
UL: 300 V / 18.5 A
Packaging
Box
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1793401200000)/

Dimensions and weights

Depth
8,5 mm
Глубина (дюймов)
0,335 inch
Height
15,2 mm
Height (inches)
0,598 inch
Height of lowest version
12 mm
Width
106,32 mm
Width (inches)
4,186 inch
Net weight
5,914 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Empreinte carbone du produit
  • Cradle to gate:
    0,189 kg CO2 eq.

System specifications

Product family
OMNIMATE Signal - series BL/SL 5.08
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
5,08 mm
Pitch in inches (P)
0,2 "
Outgoing elbow
180°
Number of poles
19
Number of solder pins per pole
1
Solder pin length (l)
3,2 mm
Solder pin length tolerance
+0.1 / -0.3 mm
Forrasztótüske méretei
d = 1.2 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
Forrasztószem lyukátmérő (D)
1,5 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1, mm
91,44 mm
L1 in inches
3,6 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging cycles
25
Plugging force/pole, max.
10 N
Pulling force/pole, max.
7,5 N

Material data

Insulating material
PA GF
Colour
black
Barevný graf (podobné)
RAL 9011
Skupina izolačního materiálu
II
Comparative Tracking Index (CTI)
≤ 600
UL 94 flammability rating
V-0
Materiál kontaktu
Cu-alloy
Érintkező felület
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Dugaszolható csatlakozás rétegszerkezete
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
−25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Bemessungsstrom, min. Polzahl (Tu=20°C)
24 A
Jmenovitý proud, max. počet pólů (Tu=20 °C)
19 A
Rated current, min. number of poles (Tu=40°C)
21 A
Jmenovitý proud, max. počet pólů (Tu=40 °C)
16,5 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
서지 전압 클래스 정격 전압 / 오염 등급 III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Névleges lökőfeszültség a II/2 túlfeszültség osztályhoz / szennyezés mértékéhez
4 000 V
Névleges lökőfeszültség a III/2 túlfeszültség osztályhoz / szennyezés mértékéhez
4 kV
Jmenovité impulzní napětí pro třídu přepětí / stupeň znečištění III/3
4 kV

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
18,5 A
Rated current (Use group D / CSA)
18,5 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
정격 전압(사용 그룹 D / UL 1059)
300 V
Corrente nominale (Gruppo B / UL 1059)
18,5 A
Rated current (Use group D / UL 1059)
10 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
165 mm
VPE width
115 mm
VPE height
35 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Diameter of solder eyelet D = 1.4+0.1mm
  • Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
