THM MT30X 17.5/8 GE
THM MT30X 17.5/8 GE

THM MT30X 17.5/8 GE

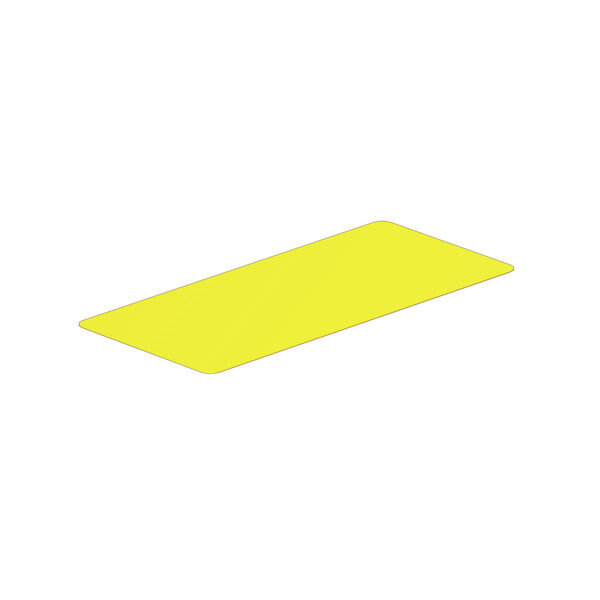

THM, Device markers, 8 x 17.5 mm, yellow

Tuotteen tunnus 2912630000
Lataa tietosivu Tekninen tuki Tuotelataukset
Samankaltaiset tuotteet 26
Approvals General ordering data Dimensions and weights Environmental Product Compliance Datos generales Készülékjelölők Classifications

Approvals

ROHS
Conform

General ordering data

Version
THM, Device markers, 8 x 17.5 mm, yellow
Order No.
2912630000
Type
THM MT30X 17.5/8 GE
GTIN (EAN)
4099986536821
Qty.
2 500 items

Dimensions and weights

Depth
0,08 mm
Depth (inches)
0,003 inch
Height
8 mm
Height (inches)
0,315 inch
Width
17,5 mm
Width (inches)
0,689 inch
Net weight
0,042 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Datos generales

Adhesive
Akril
Basic material
Poliészter
Colour
sárga
Einsatztemperaturbereich, min.
−40 °C
Halogen
아니요
Number of markers per combination

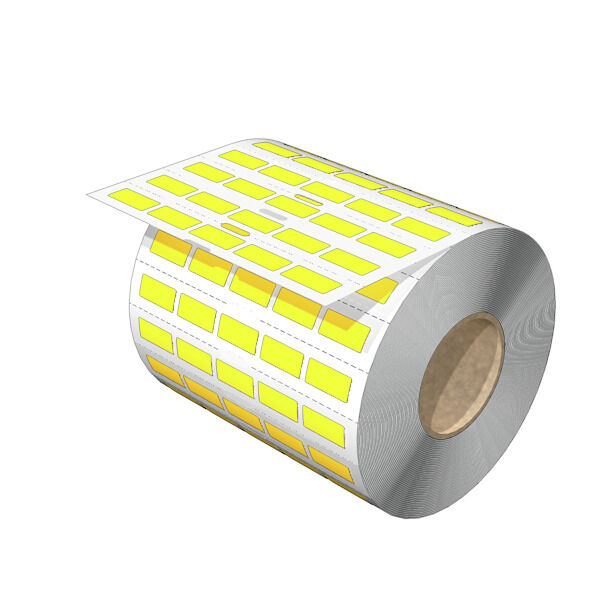

1 Label reel = Device markers
Number of markers per packaging unit
  • forma dostawy:
    Этикетки на катушке
Number per roll
2500
Operating temperature range, max.
150 °C
Printed characters
without
UL 94 flammability rating
V-0
Verze
Self-adhesive
Width
17,5 mm

Készülékjelölők

Halogen
No

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
