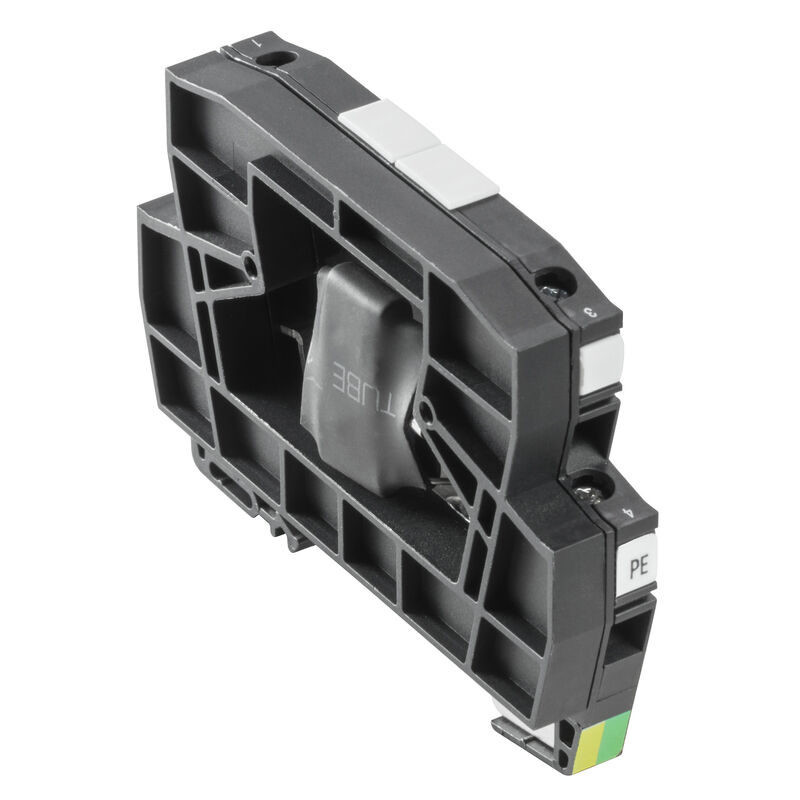

VSSC4 MOV 240VAC/DC
VSSC4 MOV 240VAC/DC
VSSC4 MOV 240VAC/DC

VSSC4 MOV 240VAC/DC

Surge protection for instrumentation and control, Surge protection for measurement and control

Tuotteen tunnus 1064020000
Avaa konfiguraattorissa
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 2 Samankaltaiset tuotteet 7
Approvals General ordering data Dimensions and weights Temperatures Probabilité d'échec Environmental Product Compliance Rated data UL CSA protection data General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Further details of approvals Connection data Electrical data Obecné údaje Ratings IECEx/ATEX/cUL Important note 분류 Tender specification sheets

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319227/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319238/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319252/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319261/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E311081

General ordering data

Version
Surge protection for instrumentation and control, Surge protection for measurement and control
Order No.
1064020000
Type
VSSC4 MOV 240VAC/DC
GTIN (EAN)
4032248829439
Qty.
5 items

Dimensions and weights

Depth
58,5 mm
Depth (inches)
2,303 inch
Height
76 mm
Altezza (pollici)
2,992 inch
Width
6,2 mm
Width (inches)
0,244 inch
Net weight
48 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...70 °C
Humidity
5...96 %

Probabilité d'échec

SIL in compliance with IEC 61508
3
MTTF
4 391 a
SFF
100 %
λges
26
PFH in 1*10-9 per hour
0

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Certificate No. (UL)
E311081
UL certificate
[UL Zertifikat](PDF/E311081VOL1SEC3.pdf)

CSA protection data

Gas group C
IIB
Gas group D
IIA
Gas groups A, B
IIC
Input voltage, max. Ui
407 V
Input-current, max. II
500 mA
Internal capacity, max. CI
2 nF
Internal inductance, max. LI
0 µH

General data

Colour
black
Design
Terminal
Isolating function
No
Mounting rail
TS 35
Optical function display
No
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
UL 94 flammability rating
V-0
Version
Surge protection for measurement and control

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Capacité
0.7 nF
Corrente di dispersione max. (8/20 µs)
15 kA
Discharge current Imax (8/20µs) wire-PE
15 kA
Discharge current In (8/20µs) wire-PE
0.5 kA
IEC 61643-21에 따른 요구 조건 범주
C1
C2
Jmenovité napětí (DC)
339 V
Max. continuous voltage, Uc (AC)
288 V
Número de polos
1
Overload - failure mode
Mode 1
Rated current IN
20 A
Rated load current IL
20 A
Rated voltage (AC)
240 V
Résistance de passage
<0.1 Ω
Spannungsart
AC/DC
Stötströmstålighet C1
0.5 kA 8/20 µs 1 kV 1.2/50 µs
Surge current-carrying capacity C2
1 kA 8/20 μs
Szabványok
IEC 61643-21
Макс. продолжительное напряжение, Uc (DC)
407 V

Further details of approvals

GOST certificate
[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

Connection data

Stripping length
10 mm
Type of connection
Collegamento a vite
Tightening torque, min.
0,5 Nm
Tightening torque, max.
0,8 Nm
Clamping range, min.
0,5 mm²
4 mm²
Wire cross-section, solid, min.
0,5 mm²
Wire cross-section, solid, max.
6 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
4 mm²
Connection cross-section, stranded, min.
0,5 mm²
Connection cross-section, stranded, max.
4 mm²

Electrical data

Voltage type
AC/DC

Obecné údaje

Number of poles
1
Protection degree
IP20
Colour
black

Ratings IECEx/ATEX/cUL

cUL certificate
[cUL Certificate](pdf/VSSC.PDF)

Important note

Product information
Mode 1: State where the voltage-limiting part of the SPD was disconnected. The voltage limiting function is no longer available, but the cable is still functional.

분류

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-01
ECLASS 15.0
27-17-15-01

Tender specification sheets

Long specification
Feed-through terminal, 12.4mm wide with varistor arrester between the signal line connection and the mounting rail potential, TS 35 contact base.A signal with max. 32A can be protected here. When the terminal is fitted, a simultaneous electrically conducting contact is made between the mounting rail (earth) and the reference potential (ground) of the protection circuit in the terminal. Optical identification of the terminal based on the type of protected switching and the voltage level. The terminal can be labelled or marked.
Short specification
Bloc de jonction de passage avec varistance en tant que protection centrale entre raccordement de conducteur de signaux et potentiel de rail profilé, pied de contact TS 35 version : 240 Vuc.
