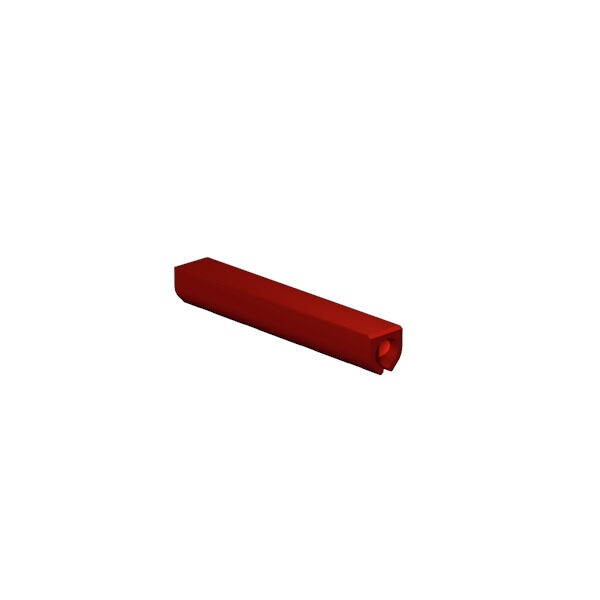

SlimFix, Conductor and cable markers, 1 - 1.3 mm, 21 x 3.2 mm, red

Product ID 1730580003
Gegevensblad downloaden Engineering Support Product Downloads
Verwante producten 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
SlimFix, Conductor and cable markers, 1 - 1.3 mm, 21 x 3.2 mm, red
Order No.
1730580003
Type
VT SF 00/21 MC NE RT V0
GTIN (EAN)
4008190954482
Qty.
800 items

Dimensions and weights

Depth
3,2 mm
Depth (inches)
0,126 inch
Height
21 mm
Height (inches)
0,827 inch
Width
3,2 mm
Width (inches)
0,126 inch
Net weight
0,29 g

Temperatures

Operating temperature range
-50...120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.002 kg CO2 eq.

General data

Alapanyag
Polyamide 66
anpassad skrivare
[PRINTJET CONNECT](~/p/2715590000)
Antal märkningar per kombination
1 MultiCard = Conductor and cable markers
Campo delle temperature di impiego
-50...120 °C
Classe d'inflammabilité selon UL 94
V-0
Couleur
red
Halogène
No
Largeur
3,2 mm
Plage de température d'utilisation, max.
120 °C
Plage de température d'utilisation, min.
-50 °C
Type of printing
neutral
Размер маркировочной области
21 x 3.2 mm
Рекомендованные отрасли промышленности
Transportation
Machinery
패키지 단위당 조합 개수

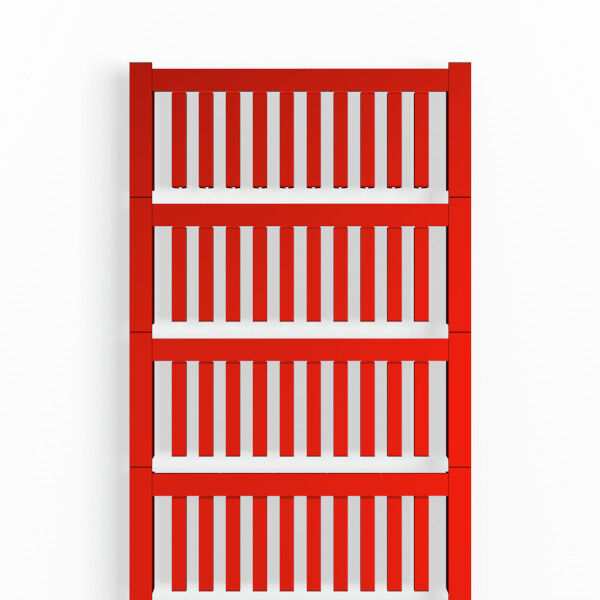

  • Form of supply:
    MultiCard

Conductor and cable markers

Conductor cross-section, max.
0,25 mm²
Conductor cross-section, min.
0,18 mm²
Conductor O.D., min.
1 mm
diámetro externo del conductor
1 - 1.3 mm
Halogen
No
Leiteranschlussquerschnitt
0.18 - 0.25 mm²
Vnější prům. vodiče, max.
1,3 mm

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
