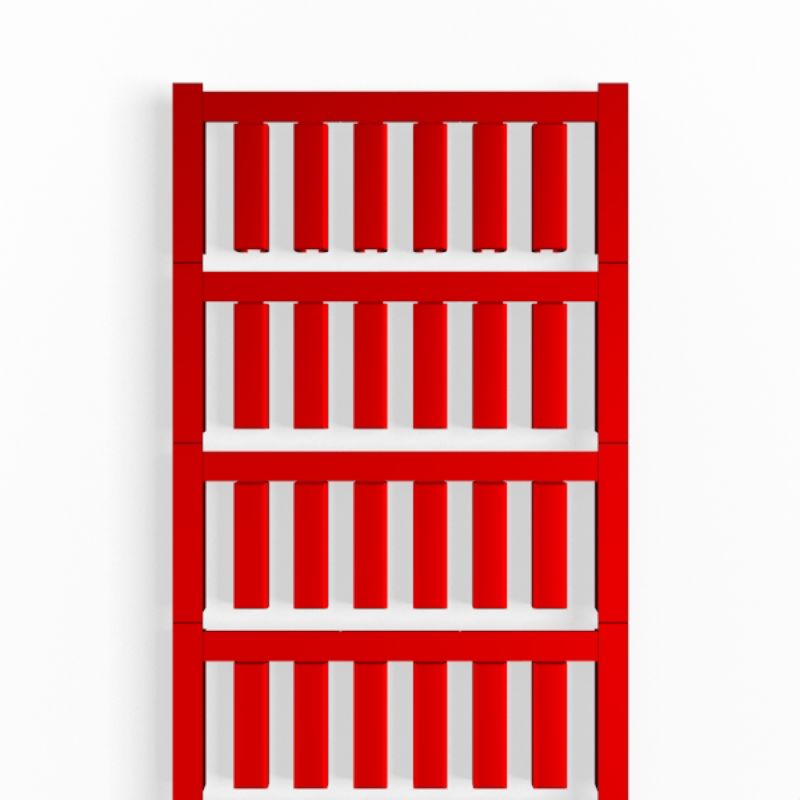

SlimFix, Conductor and cable markers, 3.6 - 6 mm, 21 x 5.7 mm, red

Ürün No. 1689450003
Veri sayfasını indir Engineering Support Product Downloads
İlgili ürünler 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Versione
SlimFix, Conductor and cable markers, 3.6 - 6 mm, 21 x 5.7 mm, red
Rendelési szám
1689450003
Tipo
VT SF 4/21 MC NE RT V0
GTIN (EAN)
4008190872540
Qty.
288 adet

Dimensions and weights

Profondità
6,1 mm
Depth (inches)
0,24 inch
Posizione verticale
21 mm
Height (inches)
0,827 inch
Larghezza
5,7 mm
Width (inches)
0,224 inch
Net weight
0,6 g

Temperatures

Campo delle temperature di impiego
-50...120 °C

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.004 kg CO2 eq.

General data

Basic material
Polyamide 66
Colour
red
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Number of markers per combination
1 MultiCard = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-50...120 °C
Operating temperature range, max.
120 °C
Operating temperature range, min.
-50 °C
Recommended industries
Transportation
Machinery
Size of labelling field
21 x 5.7 mm
Typ av märkning
neutral
UL 94 flammability rating
V-0
Width
5,7 mm

Conductor and cable markers

Conductor O.D., min.
3,6 mm
Наружный диаметр провода
3.6 - 6 mm
Сечение соединительного провода
2.5 - 4 mm²
전선 굵기, 최대
4 mm²
전선 굵기, 최소
2,5 mm²
컨덕터 O.D., 최대
6 mm
할로겐
No

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
