WMF 2.5 FU 100-250V SW

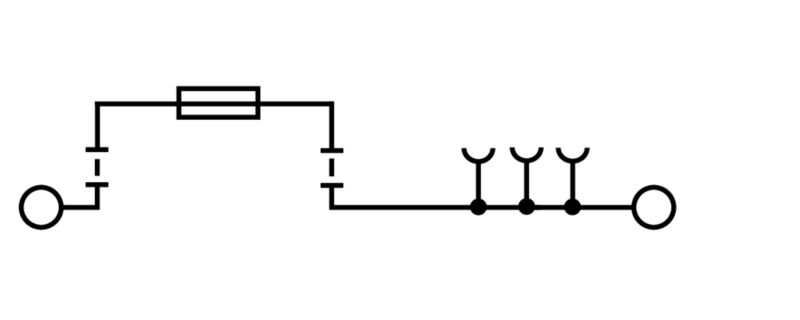

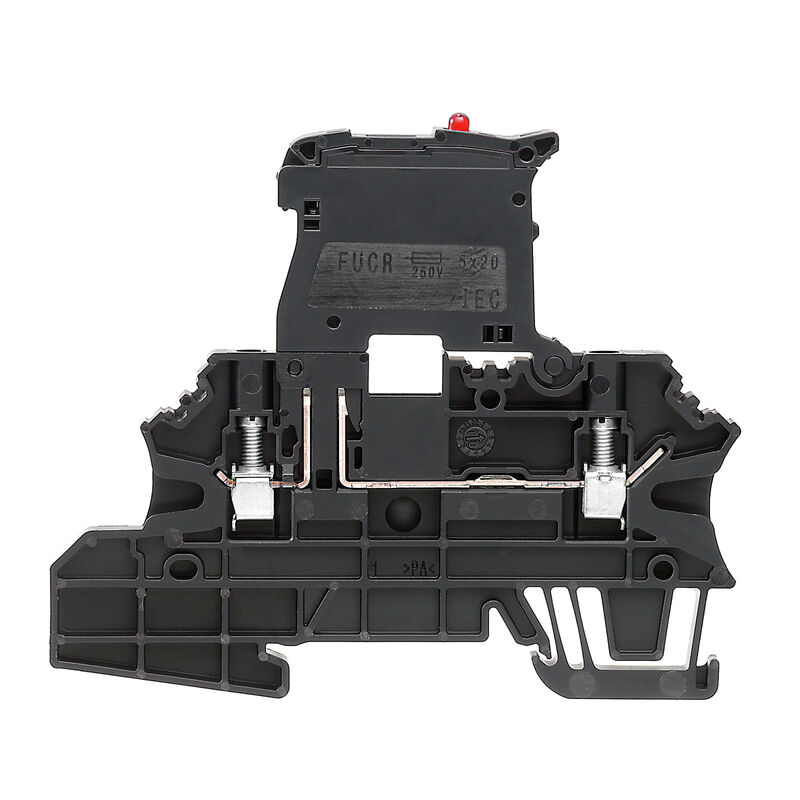

Product image
WMF 2.5 FU 100-250V SW

WMF 2.5 FU 100-250V SW

Fuse terminal, Screw connection, black, 2.5 mm², 6.3 A, 250 V, Number of connections: 2, Number of levels: 1, TS 35

Produkt ID 1162960000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 47 Anvendte produkter 34
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificat Nº (cURus)
E60693
Certificat Nº (cURusEX)
E184763

General ordering data

Version
Fuse terminal, Screw connection, black, 2.5 mm², 6.3 A, 250 V, Number of connections: 2, Number of levels: 1, TS 35
Order No.
1162960000
Type
WMF 2.5 FU 100-250V SW
GTIN (EAN)
4032248992089
Qty.
50 Styk

Dimensions and weights

Depth
74 mm
Depth (inches)
2,913 inch
Depth including DIN rail
74,5 mm
Height
88 mm
Height (inches)
3,465 inch
Width
5,08 mm
Width (inches)
0,2 inch
Net weight
17,318 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7cI
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Farbe
black
Klasifikace hořlavosti UL 94
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
DEMKO14ATEX1389U
Certificate No. (IECEX)
IECEXUL14.0097U
Current (ATEX)
6.3 A
Wire cross section max. (ATEX)
4 mm²
Current (IECEX)
6.3 A
Wire cross section max. (IECEX)
4 mm²
Marking EN 60079-7
Ex ec II C Gc
Ex 2014/34/EU label
II 3 G

System specifications

Versión
Screw connection
Fuse isolator
for plug-in cross-connector
One end without connector
Tapa final obligatoria
Yes
Potenciálok száma
1
Number of levels
1
Number of clamping points per level
2
Úrovně propojené interně
Yes
PE připojení
No
Tragschiene
TS 35
Fonction PE
No

Additional technical data

Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,5 mm²
Clamping screw
M 3
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
1,5 mm²
Connection direction
on side
Gauge to IEC 60947-1
A3
Number of connections
2
Stripping length
10 mm
Tightening torque, max.
0,6 Nm
Tightening torque, min.
0,5 Nm
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,5 mm²

CSA rating data

Certificate No. (CSA)
200039-1057876
Current size B (CSA)
17 A
Current size C (CSA)
17 A
Current size D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG

General

Mounting rail
TS 35
Standards
IEC 60947-7-3
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26

Rating data

Bemessungsquerschnitt
2,5 mm²
Rated voltage
250 V
Bemessungsspannung DC
250 V
Nennstrom
6,3 A
Proud při maximu vodičů
6,3 A
Normen
IEC 60947-7-3
Résistance de passage selon CEI 60947-7-x
1,33 mΩ
Tension de choc nominale
8 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Kategorie rázového napětí
III
Závažnost znečištění
3

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size B (cURus)
17 A
Průřez vodiče propojení v terénu max. (cURus)
12 AWG
Velikost proudu C (cURus)
17 A
Velikost proudu D (cURus)
5 A
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V
Wire cross section max. (cURus)
12 AWG
Wire cross section min. (cURus)
26 AWG

Important note

Product information
The voltage depends on the selected fuse element or the selected indicator light

Classifications

ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
