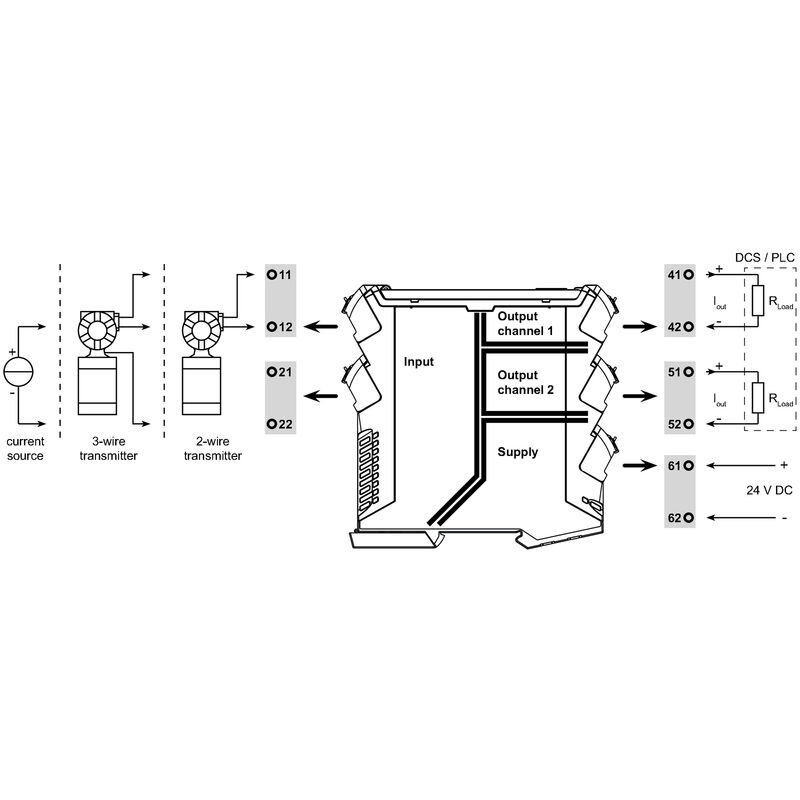

Dimensioned drawing
ACT20P-CI-2CO-P
Similar to illustration
ACT20P-CI-2CO-P

ACT20P-CI-2CO-P

Analogue isolating amplifier, Input : 0(4)-20 mA, Output : 2 x 0(4) - 20 mA, Signal distributor, HART®

Item No. 2489710000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 2 Individual parts 1 Related products 6
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Input Output Output (analogue) General data Insulation coordination Data for Ex applications (ATEX) Connection data Part description Classifications

Approvals

Сертификаты
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
Сертификаты
CULUS;
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E469563
Certificate no. (cULusEX)
E338066

General ordering data

Version
Analogue isolating amplifier, Input : 0(4)-20 mA, Output : 2 x 0(4) - 20 mA, Signal distributor, HART®
Заказ №
2489710000
Тип
ACT20P-CI-2CO-P
GTIN (EAN)
4050118535167
Qty.
1 items

Dimensions and weights

Depth
113,7 mm
Depth (inches)
4,476 inch
Высота
127,1 mm
Height (inches)
5,004 inch
Szerokość
12,5 mm
Width (inches)
0,492 inch
Net weight
125 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-20 °C...60 °C
Humidity at operating temperature
0...95 % (no condensation)
Humidity
5...95 %, no condensation

Probability of failure

SIL az IEC 61508 szerint
None

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924

Input

Input current
0...20 mA
4…20mA
Input signal
HART signal® bidirectional
Number inputs
1
Sensor
2-wire transmitter (without own power supply)
3-wire sensor
4- wire sensor (with own power supply)
Sensor supply
> 17 V DC at 20 mA
Voltage drop
ca. 3.8 V @ RLoad = 0 Ω; ca. 15 V @ RLoad = 600 Ω; (Iinput = 20 mA)

Output

Load impedance current
<300 Ω
Number of outputs
2
Output current
0…20 mA (if input: 0…20 mA)
4…20 mA (if input: 4…20 mA)
HART® digital signal
Type
active
connected control must be passive

Output (analogue)

Number analogue outputs
2

General data

Accuracy
<0.1 % of end value
Configuration
none
Mounting rail
TS 35
Nominal power consumption
2 VA
Operating altitude
≤ 2000 m
Protection degree
IP20
Spotřeba proudu
≤60 mA (24V power supply, 20mA output)
Step response time
≤ 0,5 ms
Supply voltage
20…30 V DC
Temperature coefficient
80 ppm/K
Type of signal forwarding according to HART®
unchanged

Insulation coordination

EMC standards
EN 61326-1
Galvanic isolation
3-way isolator
between input ⁄ output ⁄ supply
Impulse withstand voltage
4 kV (1.2/50 µs)
Insulation voltage
2 kV inputs / outputs / power supply
Insulation voltage input or output/supply
2 kV inputs / outputs / power supply
Pollution severity
2
Surge voltage category
III
Test voltage
0,3 kV

Data for Ex applications (ATEX)

Marking
II 3 G Ex ec IIC T5 Gc

Connection data

결선 유형
PUSH IN
Tightening torque, min.
0,4 Nm
Tightening torque, max.
0,6 Nm
Clamping range, rated connection
2,5 mm²
Clamping range, min.
0,5 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0,2 mm²
Wire cross-section, solid, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,2 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,2 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²

Part description

Product description
The non-adjustable DC isolating amplifier ACT20P-CI-2CO isolates analogue standard current signals from a power source or from a 2- or 3-wire sensor. An analogue input current signal is converted linearly and doubled to provide two galvanically isolated output current signals. The power supply is galvanically isolated from the input and output (4-way isolation).

Properties
  • HART-compatible for 0.5 - 2.5 kHz
  • The active or passive mA signal inputs are fully galvanically isolated.
  • Operating status display on a front panel LED
  • Galvanic 4-way isolation between input, output and supply.


Classifications

ETIM 8.0
EC002653
ETIM 9.0
EC002653
ETIM 10.0
EC002653
ECLASS 14.0
27-21-01-20
ECLASS 15.0
27-21-01-20
