Tools, Sheathing strippers

Item No. 9030060000
Download data sheet Product Downloads
액세서리입니다 2261 Componente singolo di 8 Verwante producten 5
General ordering data Dimensions and weights Environmental Product Compliance Technical data Stripping tools Classifications

General ordering data

Version
Tools, Sheathing strippers
Order No.
9030060000
Type
AM 12
GTIN (EAN)
4008190337827
Qty.
1 items

Dimensions and weights

Depth
10 mm
Depth (inches)
0,394 inch
Height
46 mm
Height (inches)
1,811 inch
Width
97 mm
Width (inches)
3,819 inch
Net weight
32.42 g

Environmental Product Compliance

RoHS Compliance Status
Not affected
REACH SVHC
Lead 7439-92-1
SCIP
cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0

Technical data

Description of article

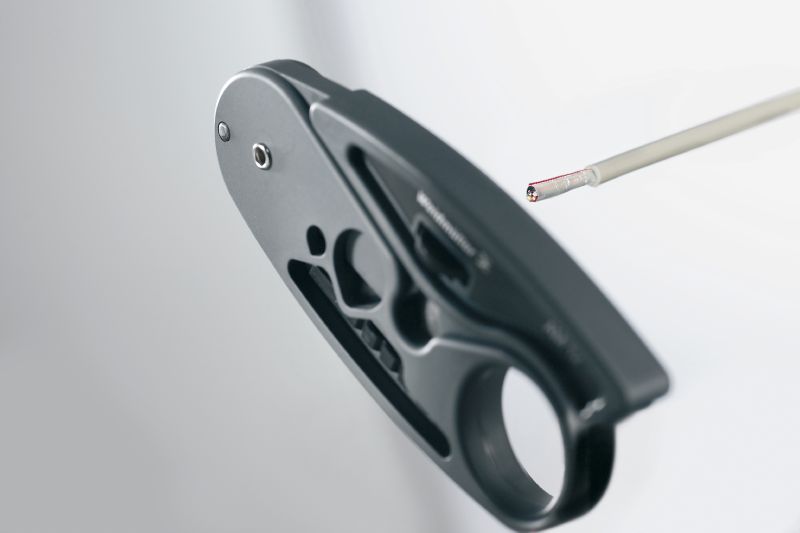

Sheathing stripper for UTP and STP data cables

Stripping tools

Avisoleringsområde AWG, min.
18 AWG
Conductor cross-section, max.
122 mm²
Głębokość cięcia
adjustable
Kabeltyp
UTP and STP data cables
kable przesyłu danych UTP i STP średnica maks.
8 mm
Ledardiameter, min.
0.2 mm²
Max. conductor diameter
12.5 mm
Min. conductor diameter
0.5 mm
Měděný kabel – pružný, max.
4 mm²
Зона снятия изоляции AWG, макс.
11 AWG

Classifications

ETIM 8.0
EC000163
ETIM 9.0
EC000163
ETIM 10.0
EC000163
ECLASS 14.0
21-04-90-90
ECLASS 15.0
21-04-90-90
