BCZ 3.81 AH10 BK BX

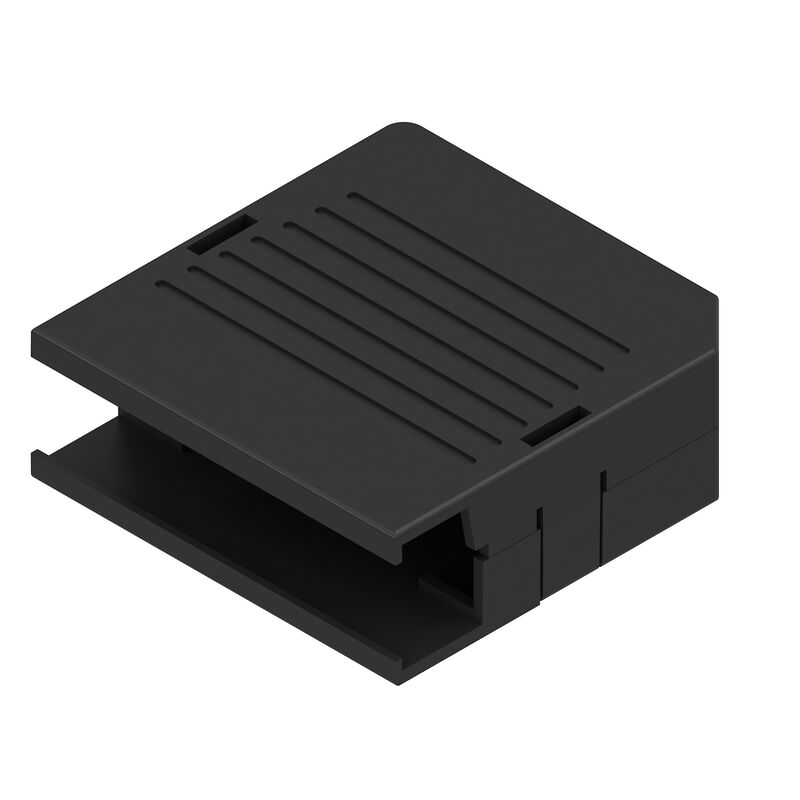

Product image
BCZ 3.81 AH10 BK BX

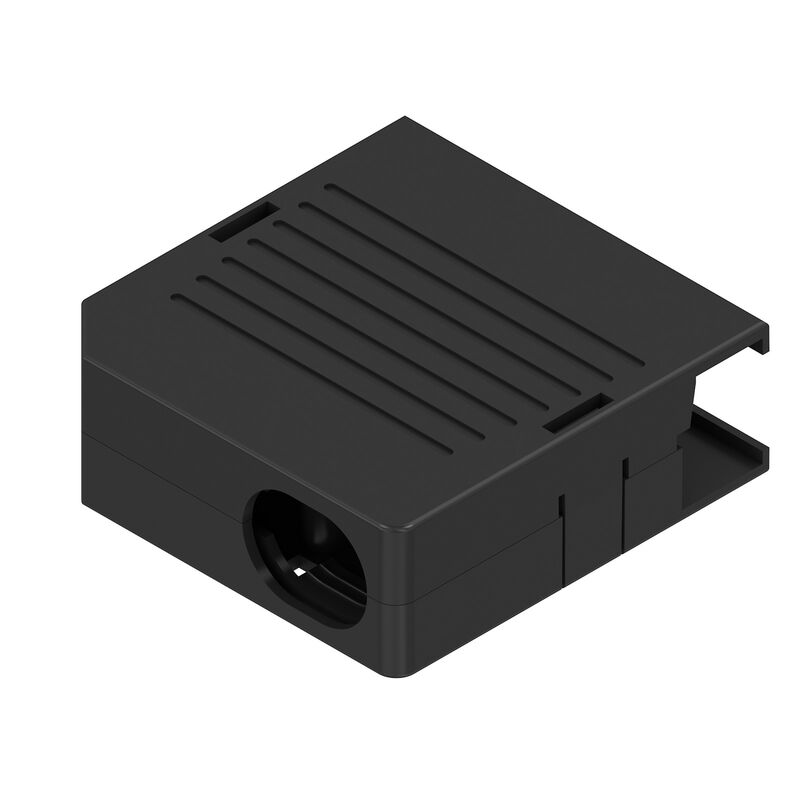

Product image
BCZ 3.81 AH10 BK BX
Example of use
BCZ 3.81 AH10 BK BX
Dimensional drawing

BCZ 3.81 AH10 BK BX

PCB plug-in connector, Accessories, Hood, black, Number of poles: 10

Item No. 1005350000
Download data sheet Engineering Support Product Downloads
Is accessory of 9 Related products 32
Approvals General ordering data Dimensions et poids Environmental Product Compliance System specifications Material data Rated data acc. to IEC Packing Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, Accessories, Hood, black, Number of poles: 10
Order No.
1005350000
Type
BCZ 3.81 AH10 BK BX
GTIN (EAN)
4032248752577
Množství
10 ks
Údaje výrobku

Balení
Box

Dimensions et poids

Nettó tömeg
7.4 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Signal - series BC/SC 3.81
Pitch in mm (P)
3.81 mm
Pitch in inches (P)
0.15 "
Number of poles
10
L1 w calach
0.15 "
Количество полюсных рядов
1
Tightening torque
  • Torque type:
    Cover screw
  • Usage information:
    • Tightening torque:
      • min.:
        0.4 Nm
      • max.:
        0.5 Nm

Material data

Insulating material
PA 66 GF 30
Colour
black
Colour chart (similar)
RAL 9011
Grado inflamabilidad según UL 94
V-0
접점 재질
Cu-alloy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984

Packing

Packaging
Box
VPE length
144 mm
VPE width
125 mm
VPE height
41 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-46-04-05
ECLASS 15.0
27-46-04-05
