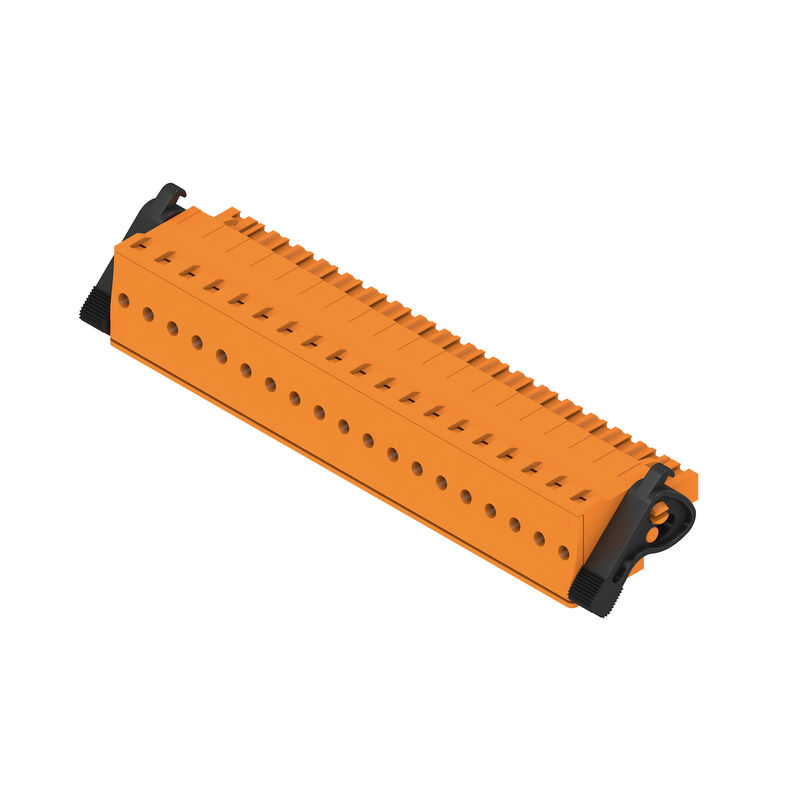

Produktillustration
Avbildning liknande
BLF 5.08HC/19/270LR SN OR BX

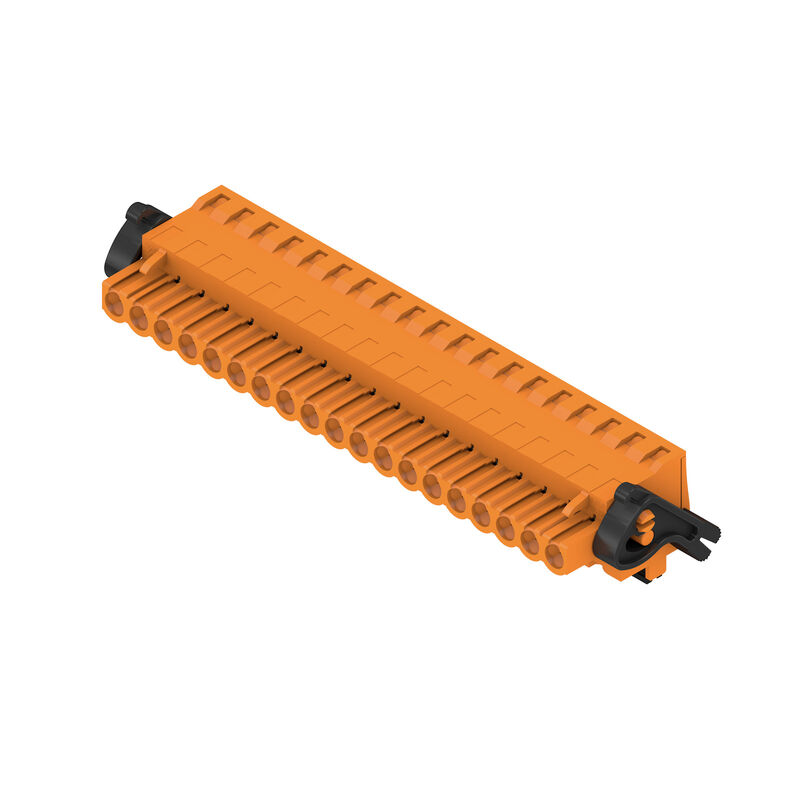

Produktillustration
BLF 5.08HC/19/270LR SN OR BX
Dimensional drawing
BLF 5.08HC/19/270LR SN OR BX
Graph
BLF 5.08HC/19/270LR SN OR BX
Produktfördel
Uncompromising functionality
High vibration resistance
BLF 5.08HC/19/270LR SN OR BX
Produktfördel
Solid PUSH IN contact
Safe and durable
BLF 5.08HC/19/270LR SN OR BX
Produktfördel
Cost-effective wiring
Quick and intuitive operation
BLF 5.08HC/19/270LR SN OR BX
Produktfördel
Wide clamping range
Tool-free wire connection
BLF 5.08HC/19/270LR SN OR BX
Produktfördel
Self-locking
Immediately on plugging in
BLF 5.08HC/19/270LR SN OR BX
Produktfördel
Gentle unlocking
Low mechanical stress

BLF 5.08HC/19/270LR SN OR BX

PCB plug-in connector, female plug, 5.08 mm, Number of poles: 19, 270°, PUSH IN with actuator, Clamping range, max. : 3.31 mm², Box

Item No. 1983250000
Download data sheet Engineering Support Product Downloads
Accessories 4 Counterparts 14 Related products 23
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Märkdata enligt IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Dopuszczenia
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Wersja
PCB plug-in connector, female plug, 5.08 mm, Number of poles: 19, 270°, PUSH IN with actuator, Clamping range, max. : 3.31 mm², Box
Nr zam.
1983250000
Typ
BLF 5.08HC/19/270LR SN OR BX
GTIN (EAN)
4032248687343
Ilość
12 items
Product data
IEC: 400 V / 24 A / 0.2 - 2.5 mm²
UL: 300 V / 18.5 A / AWG 26 - AWG 12
Packaging
Box

Dimensions and weights

Głębokość
29,6 mm
Depth (inches)
1,165 inch
Wysokość
23,2 mm
Height (inches)
0,913 inch
Szerokość
106,34 mm
Width (inches)
4,187 inch
Masa netto
37,25 g

Environmental Product Compliance

Status zgodności z dyrektywą RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Ślad węglowy produktu
  • Cradle to gate:
    1,212 kg CO2 eq.

System Parameters

Produktfamilie
OMNIMATE Signal - series BL/SL 5.08
Anschlussart
Field connection
Wire connection method
PUSH IN with actuator
Raster w mm (P)
5,08 mm
Raster in Zoll (P)
0,2 "
Kierunek odejścia przewodu
270°
Polzahl
19
L1 i mm
91,44 mm
L1 i tum
3,6 "
Liczba rzędów
1
Polreihenzahl
1
Rated cross-section
2,5 mm²
Beröringsskydd enligt DIN VDE 57
Safe from finger touch
Érintésvédelem a DIN VDE 0470 szerint
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Koderbar
Yes
Avisoleringslängd
10 mm
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Plugging force/pole, max.
7 N
Pulling force/pole, max.
5,5 N

Material data

Materiał izolacyjny
PBT
Barwny
orange
Colour of operational elements
black
Tabela kolorów (podobny)
RAL 2000
grupa materiałów izolacyjnych
IIIa
Porównywalny wskaźnik śledzenia (CTI)
≥ 200
UL 94 flammability rating
V-0
Materiał styków
Cu-alloy
Powierzchnia styku
tinned
Struktura warstwowa wtyku
4...8 µm Sn hot-dip tinned
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
−30 °C
Temperature range, installation, max.
100 °C

Conductors suitable for connection

Zakres zaciskania, min.
0,13 mm²
Zakres zaciskania, maks.
3,31 mm²
przekrój przyłącza przewodu AWG, min.
AWG 26
przekrój przyłączeniowy przewodu AWG, maks.
AWG 12
jednodrutowe, min. H05(07) V-U
0,2 mm²
jednodrutowe, maks. H05(07) V-U
2,5 mm²
cienkodrutowe, min. H05(07) V-K
0,2 mm²
cienkodrutowe, maks. H05(07) V-K
2,5 mm²
z AEH z kołnierzem DIN 46 228/4, min.
0,25 mm²
z AEH z kołnierzem DIN 46 228/4, maks.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
z końcówką kablową wg DIN 46 228/1, maks.
2,5 mm²
Passtift enligt EN 60999 a x b; ø
2.8 mm x 2.0 mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025870000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004050000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9025860000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0542500000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9019100000
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0282800000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      0186500000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0635100000
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        10 mm
    • Recommended wire-end ferrule:
      9004080000
    • Stripping length:
      • nominal:
        13 mm
    • Recommended wire-end ferrule:
      9036220000
Tekst referencyjny
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Märkdata enligt IEC

testad enligt standard
IEC 60664-1
IEC 61984
Prąd znamionowy, min. liczba biegunów (Tu=20°C)
24 A
Prąd znamionowy, maks. liczba biegunów (Tu=20°C)
19 A
Prąd znamionowy, min. liczba biegunów (Tu=40°C)
21 A
Prąd znamionowy, maks. liczba biegunów (Tu=40°C)
16,5 A
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia II/2
400 V
napięcie znamionowe przy kat. przepięć/stopniu zanieczyszczenia III/2
320 V
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения III/3
250 V
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
znamionowe napięcie udarowe przy kat. przepięć/stopniu zanieczyszczenia III/3
4 kV
odporność na zwarcia
3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Jmenovité napětí (aplikační skupina B / CSA)
300 V
Nennspannung (Use group D / CSA)
300 V
Prąd znamionowy (grupa użytkowa B / CSA)
10 A
Prąd znamionowy (grupa użytkowa D / CSA)
10 A
przekrój przyłącza przewodu AWG, min.
AWG 12
przekrój przyłącza przewodu AWG, maks.
AWG 26
Odniesienie do wartości znamionowych
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Certifikat nr (cURus)
E60693
Märkspänning (användargrupp B / UL 1059)
300 V
Tensión nominal (Use Group D / UL 1059)
300 V
Courant nominal (groupe d'utilisation B / UL 1059)
18,5 A
Corrente nominale (Gruppo D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Ledardiameter AWG, max.
AWG 12
Odniesienie do wartości znamionowych
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
338 mm
Szerokość VPE
130 mm
Wysokość VPE
27 mm

Type tests

Test: wytrzymałość znaczników
  • Standard:
    DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96
  • Test:
    mark of origin, type identification, pitch, type of material, date clock
  • Evaluation:
    available
  • Test:
    durability
  • Evaluation:
    passed
Test: nieprawidłowe połączenie (brak możliwości wymiany)
  • Standard:
    DIN EN 61984 section 6.3 and 6.9.1 / 09.02, DIN EN 60512-13-5 / 11.08
  • Test:
    180° turned with coding elements
  • Evaluation:
    passed
  • Test:
    visual examination
  • Evaluation:
    passed
Test: przekrój zaciskowy
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 04.08
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.2 mm²
    • Type of conductor and conductor cross-section:
      solid 2.5 mm²
    • Type of conductor and conductor cross-section:
      stranded 2.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
Test uszkodzenia i przypadkowego poluzowania przewodników
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    0.7 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      H07V-K2.5
  • Evaluation:
    passed
  • Requirement:
    0.9 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 12/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed
Test wyciągania
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 26/1
    • Type of conductor and conductor cross-section:
      AWG 26/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H05V-U0.5
    • Type of conductor and conductor cross-section:
      H05V-K0.5
  • Evaluation:
    passed
  • Requirement:
    ≥50 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      H07V-K2.5
  • Evaluation:
    passed
  • Requirement:
    ≥60 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      AWG 12/1
    • Type of conductor and conductor cross-section:
      AWG 12/19
  • Evaluation:
    passed

Important note

Zgodność IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Uwagi
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Crimping shape "A" for wire end ferrules with PZ 6/5 crimping tool recommended.
  • The test point can only be used as potential-pickup point.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-02-02
ECLASS 15.0
27-46-02-02
