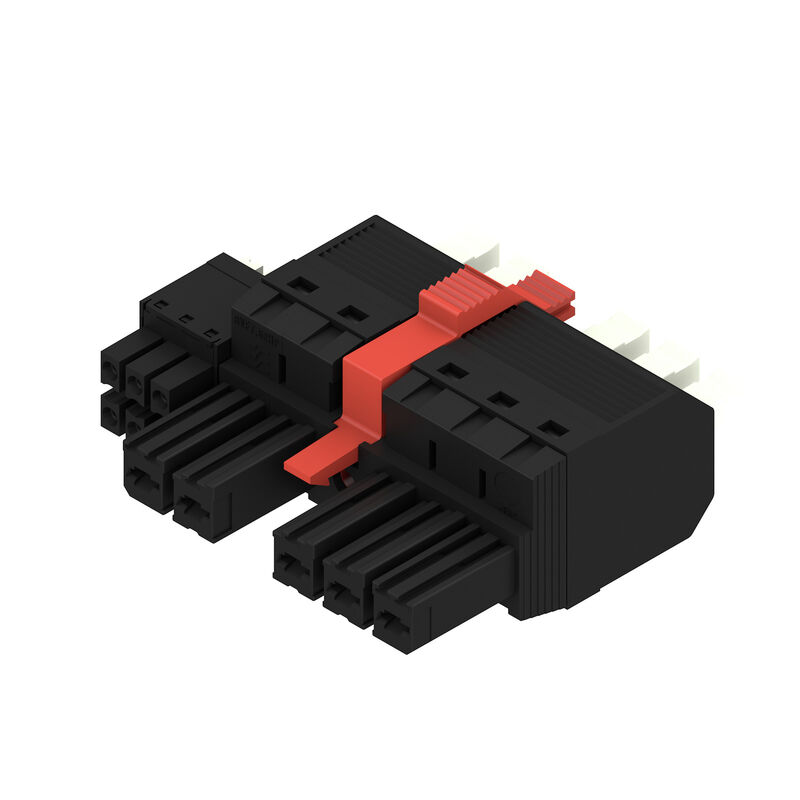

BVFL 7.62HP/05/180MF4 BCF/06R SN BK BX
Illustration du produit

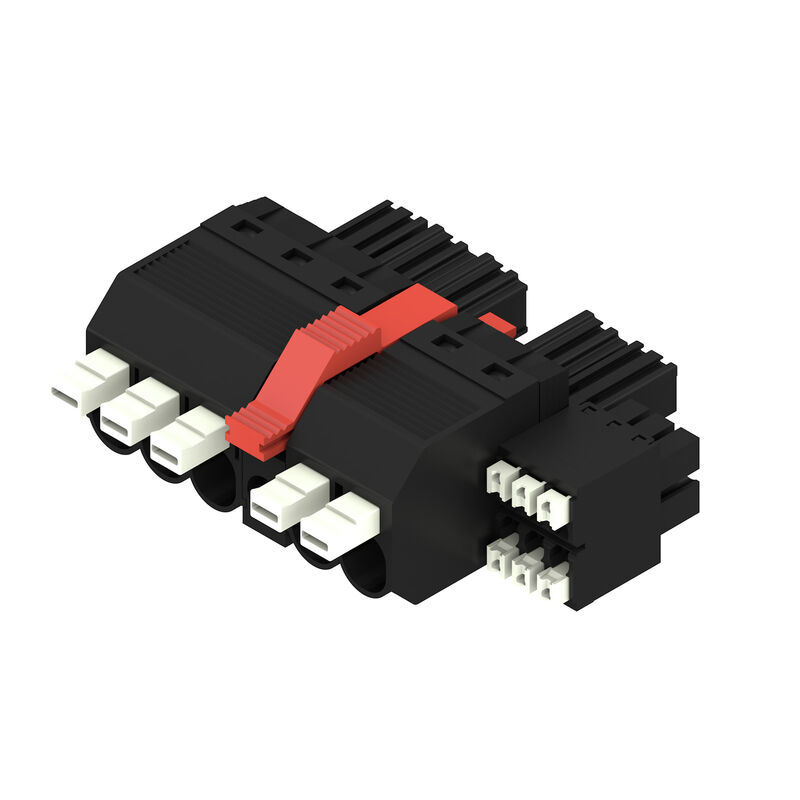

BVFL 7.62HP/05/180MF4 BCF/06R SN BK BX
Illustration du produit
BVFL 7.62HP/05/180MF4 BCF/06R SN BK BX
Dimensional drawing
BVFL 7.62HP/05/180MF4 BCF/06R SN BK BX
Graph
BVFL 7.62HP/05/180MF4 BCF/06R SN BK BX
Avantages produit
Single-handed operation
Automatic latching

BVFL 7.62HP/05/180MF4 BCF/06R SN BK BX

PCB plug-in connector, female plug, 7.62 mm, Number of poles: 5, 180°, PUSH IN with actuator, Clamping range, max. : 6 mm², Box

Item No. 2549520000
Download data sheet 엔지니어링 지원 제품 다운로드
Accessories 5 Counterparts 4 Related products 27
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to UL 1059 Packing Technical data - hybrid Conductors that can be connected - Hybrid Important note Classifications

Approvals

Agréments
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, female plug, 7.62 mm, Number of poles: 5, 180°, PUSH IN with actuator, Clamping range, max. : 6 mm², Box
Référence
2549520000
Type
BVFL 7.62HP/05/180MF4 BCF/06R SN BK BX
GTIN (EAN)
4050118559057
Qty.
30 items
Product data
IEC: 1000 V / 38 A / 0.5 - 6 mm²
UL: 600 V / 35 A / AWG 24 - AWG 8
Packaging
Box

Dimensions and weights

Net weight
34,642 g

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Famille de produits
OMNIMATE Power - series BV/SV 7.62HP
Type de raccordement
Field connection
Wire connection method
PUSH IN with actuator
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Conductor outlet direction
180°
Nombre de pôles
5
L1 en mm
38,1 mm
L1 en pouce
1,5 "
L2 en mm
7,62 mm
L2 en pouces
0,3 "
Nombre de pôles
1
Section nominale
6 mm²
Protection au toucher selon DIN VDE 57 106
Safe from finger touch
Protection au toucher selon DIN VDE 0470
IP 20
Résistance de passage
4.50 mΩ
Codable
Yes
Stripping length
12 mm
Screwdriver blade
0.6 x 3.5
Plugging cycles
25

Material data

Insulating material
PA GF
Colour
black
Colour of operational elements
white
Colour chart (similar)
RAL 9011
Insulating material group
II
Comparative Tracking Index (CTI)
≥ 500
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Layer structure of plug contact
6...8 µm Sn glossy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
-50 °C
Operating temperature, max.
125 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
125 °C

Conductors suitable for connection

Clamping range, min.
0,5 mm²
Clamping range, max.
6 mm²
Solid, min. H05(07) V-U
0,5 mm²
Solid, max. H05(07) V-U
6 mm²
Flexible, min. H05(07) V-K
0,5 mm²
Flexible, max. H05(07) V-K
6 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
6 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,5 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
6 mm²
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      1076980000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9025930000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        15 mm
    • Recommended wire-end ferrule:
      9019140000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      9004060000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9025910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019170000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0186100000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      4 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0244100000
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      9019200000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      6 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        14 mm
    • Recommended wire-end ferrule:
      0533500000
    • Stripping length:
      • nominal:
        12 mm
    • Recommended wire-end ferrule:
      0191900000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
38 A
Rated current, max. number of poles (Tu=20°C)
38 A
Rated current, min. number of poles (Tu=40°C)
34 A
Rated current, max. number of poles (Tu=40°C)
34 A
Rated voltage for surge voltage class / pollution degree II/2
1 000 V
Rated voltage for surge voltage class / pollution degree III/2
1 000 V
Rated voltage for surge voltage class / pollution degree III/3
800 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
8 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
8 kV
Short-time withstand current resistance
3 x 1s with 420 A
Clearance, min.
10,4 mm
Creepage distance, min.
12,7 mm

Rated data acc. to UL 1059

Institut (cURus)
CURUS
Certificat Nº (cURus)
E60693
Tension nominale (groupe d'utilisation B / UL 1059)
600 V
Rated voltage (Use group C / UL 1059)
600 V
Tension nominale (groupe d'utilisation D / UL 1059)
600 V
Courant nominal (groupe d'utilisation B / UL 1059)
35 A
Courant nominal (groupe d'utilisation C / UL 1059)
35 A
Courant nominal (groupe d'utilisation D / UL 1059)
5 A
Section de raccordement de câble AWG, min.
AWG 24
Section de raccordement de câble AWG, max.
AWG 8
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Imballaggio
Box
VPE length
338 mm
VPE width
130 mm
Hauteur VPE
54 mm

Technical data - hybrid

Pitch in mm (Signal)
3.81 mm
Pitch in inches (Signal)
0.15 inch
Nombre de pôles (Signal)
6
L2 en mm
7,62 mm
L2 in inch
0,3 "
Number of rows (Signal)
2
Matériau des contacts (Signal)
CuMg
Surface du contact (Signal)
tinned
Layer structure of the plug contact (Signal)
1-3 µ Ni / 4-8 µ Sn
Rated voltage for overvoltage class/pollution severity level II/2 (Signal)
400 V
Rated voltage for overvoltage class/pollution severity level III/2 (Signal)
320 V
Rated voltage for overvoltage class/pollution severity level III/3 (Signal)
200 V
Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal)
4 kV
Rated impulse voltage for overvoltage class/pollution severity level III/2 (Signal)
4 kV
Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal)
4 kV
Short-time withstand current resistance (Signal)
3 x 1s with 80 A
Rated voltage (Use group B / CSA) (Signal)
300 V
Rated voltage (Use group C / CSA) (Signal)
50 V
Rated voltage (Use group D / CSA) (Signal)
300 V
Rated current (Use group B / CSA) (Signal)
9 A
Rated current (Use group C / CSA) (Signal)
9 A
Rated current (Use group D / CSA) (Signal)
9 A
Wire connection cross-section AWG (Signal)
AWG 24...AWG 16
Rated voltage (Use group B / UL 1059] (Signal)
300 V
Rated voltage (Use group C / UL 1059] (Signal)
50 V
Rated voltage (Use group D / UL 1059] (Signal)
300 V
Rated current (Use group B / UL 1059) (Signal)
5 A
Rated current (Use group C / UL 1059) (Signal)
5 A
Rated current (Use group D / UL 1059) (Signal)
5 A
Connector cross-section (Signal)
AWG 26...AWG 16

Conductors that can be connected - Hybrid

Clamping range, rated connection (Power)
0.5...10 mm²
Plage de raccordement, raccordement nominal
0.2...1.5 mm²
Connector cross-section (Power)
AWG 24...AWG 8
Connector cross-section AWG (Signal)
AWG 26...AWG 16
solid, H05(07) V-U (Power)
0.5...10 mm²
solid, H05(07) V-U (Signal)
0.14...1.5 mm²
flexible, H05(07) V-K (Power)
0.5...6 mm²
souple, H05(07) V-K
0.14...1.5 mm²
with wire-end ferrule with collar (Power)
0.5...6 mm²
avec embout à collier, DIN 46 228/4
0.25...1.5 mm²
avec embout, selon DIN 46 228/1
0.5...6 mm²
avec embout, selon DIN 46 228/1
0.25...1.5 mm²

Important note

Conformité IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Remarques
  • Technical specifications refer to the power contacts
  • Technical data of signal contacts: 50V / 5A, stripping length 8mm
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule with plastic collar to DIN 46228/4
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Additional pole combinations on request
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002638
ETIM 9.0
EC002638
ETIM 10.0
EC002638
ECLASS 14.0
27-46-03-02
ECLASS 15.0
27-46-03-02
