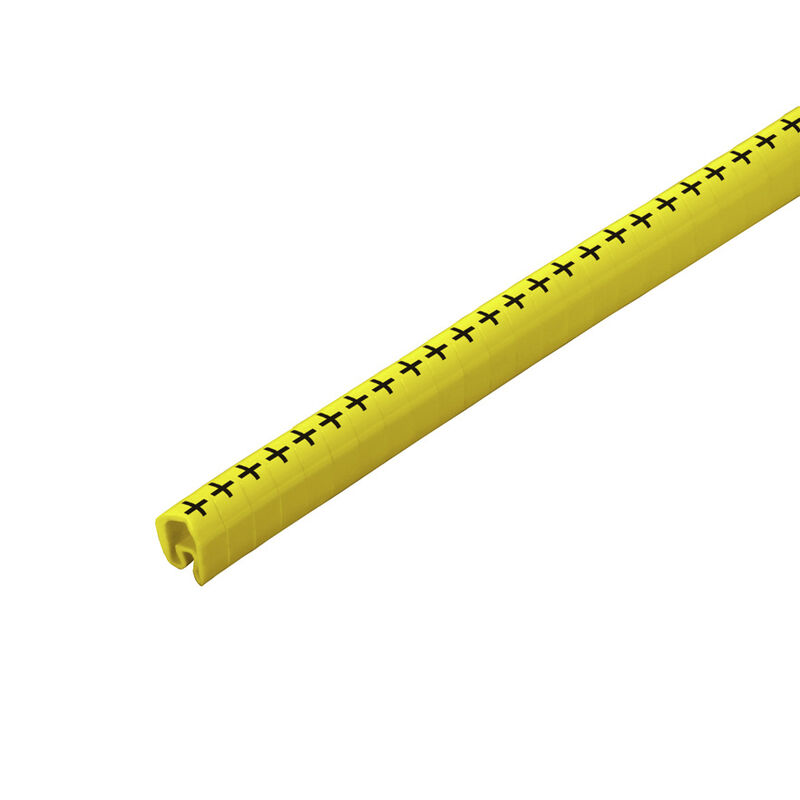

CableLine, Conductor and cable markers, 4 - 10 mm, 4 x 7 mm, yellow

Produkt ID 1568261738
Download datablad Produktdownloads Engineering-support
Anvendte produkter 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
CableLine, Conductor and cable markers, 4 - 10 mm, 4 x 7 mm, yellow
Order No.
1568261738
Type
CLI C 2-4 GE/SW + CD
GTIN (EAN)
4008190991777
Qty.
250 Styk

Dimensions and weights

Depth
8 mm
Depth (inches)
0,315 inch
Height
4 mm
Height (inches)
0,157 inch
Width
7 mm
Width (inches)
0,276 inch
Net weight
0,22 g

Temperatures

Operating temperature range
-30...80 °C

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
PVC, soft, without Cadmium
Colour
yellow
Colour of printing
black
Halogen
Yes
Imprint
+
Insulation cross-section, max.
10
Märkningsmetod
hot-embossing
Number of markers per combination
1 Reel = Conductor and cable markers
Number of markers per packaging unit
  • Form of supply:
    Reel
Operating temperature range
-30...80 °C
Operating temperature range, max.
80 °C
Operating temperature range, min.
-30 °C
Orientation of print
horizontal
Printed characters
Symbols
Recommended industries
Process
Machinery
UL 94 flammability rating
V-0
Version
CD
Width
7 mm
Вид печати
Standard
저항 코드에 따른 자재 컬러
4

Conductor and cable markers

Conductor O.D., max.
10 mm
Diametro esterno conduttore
4 - 10 mm
Diametro esterno del conduttore, min.
4 mm
Halogen
Yes
Leiteranschlussquerschnitt, max.
16 mm²
Sección de conexión del conductor, min.
2,5 mm²
Sezione di collegamento dei conduttori
2.5 - 16 mm²

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
