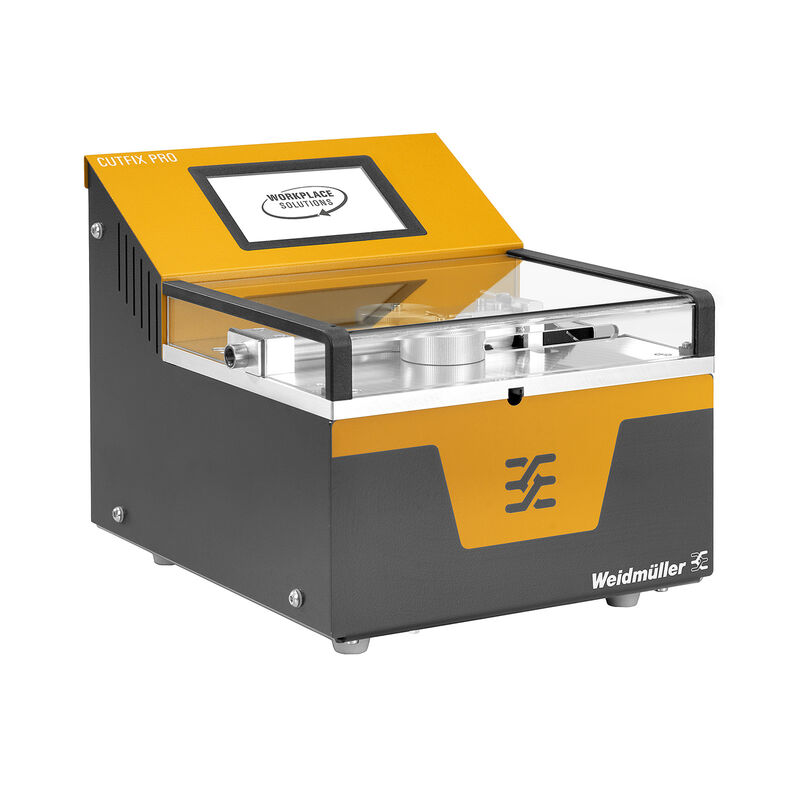

CUTFIX PRO

CUTFIX PRO

Automatic machines, Cutting machine

Product ID 2797190000
Gegevensblad downloaden Product Downloads
Toebehoren 1 Verwante producten 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Automatic cutting Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Automatic machines, Cutting machine
Order No.
2797190000
Type
CUTFIX PRO
GTIN (EAN)
4064675213192
Qty.
1  items

Dimensions and weights

Depth
250  mm
Depth (inches)
9,842  inch
Height
250  mm
Height (inches)
9,842  inch
Width
300  mm
Width (inches)
11,811  inch
Net weight
34.000  g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
d2df479e-2b79-4e98-adc7-b03577df98ae

Automatic cutting

Amount pre-selection, max.
Adjustable part quantity code
Aperture (max. diameter)
8 mm outer diameter
Connected load
0,1  kW
Display
LCD display
Drive
electrical
Electrical connection
100 - 240 V AC / 50/60 Hz
Flexible/solid individual conductors
max. 10 mm2 / max. 2.5 mm2
Keyboard
Touch display
Length pre-selection, max.
999.999  mm
Length pre-selection, min.
1  mm
Software
for data exchanging with IBM-compatible PC

Classifications

ETIM 6.0
EC002778
ETIM 7.0
EC002778
ETIM 8.0
EC002778
ETIM 9.0
EC002778
ETIM 10.0
EC002778
ECLASS 9.0
17-13-01-01
ECLASS 9.1
17-13-01-03
ECLASS 10.0
17-13-01-03
ECLASS 11.0
17-13-01-01
ECLASS 12.0
17-13-01-01
ECLASS 13.0
17-13-01-01
ECLASS 14.0
17-13-01-01
ECLASS 15.0
17-13-01-01
