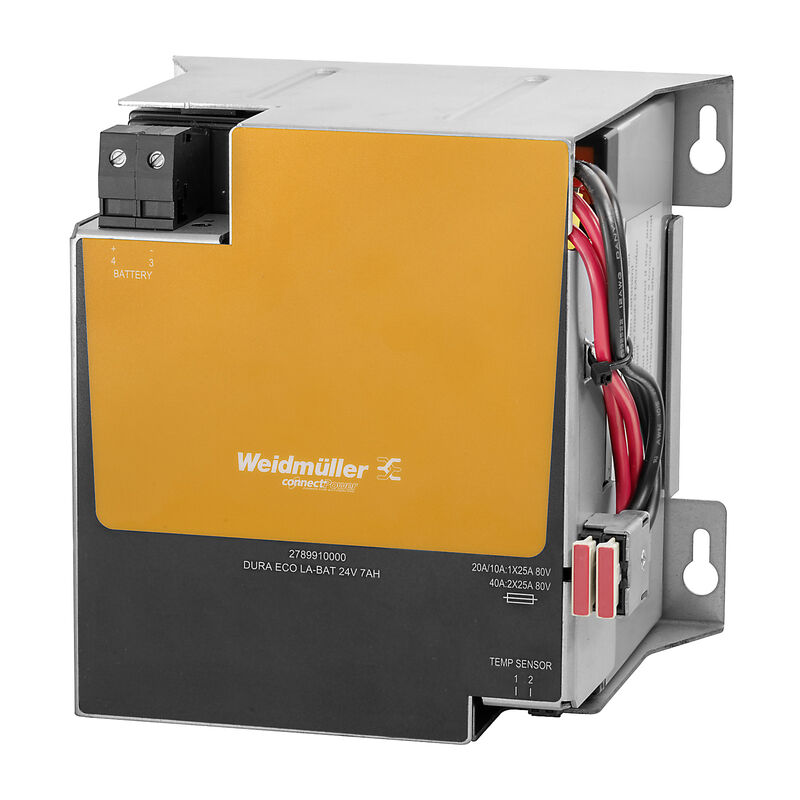

DURA ECO LA-BAT 24V 7AH
DURA ECO LA-BAT 24V 7AH

DURA ECO LA-BAT 24V 7AH

배터리

ID výrobku 2789910000
Stáhnout datový list Technická podpora Dokumenty ke stažení
Příslušenství 2 Příbuzné výrobky 5
Homologaciones 일반 주문 데이터 Dimensions and weights Temperature Termékek környezetvédelmi megfelelősége Interfaces de fonctionnement et entrées de commande Input Output General data Isolationskoordination Connection data (input) Connection data (signal) Классификации

Homologaciones

Approvals
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/a141b9cd-a4d9-451f-8b4d-e03428dc3481/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
UL File Number Search
[Web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E258476

일반 주문 데이터

Version
배터리
Order No.
2789910000
Type
DURA ECO LA-BAT 24V 7AH
GTIN (EAN)
4064675068662
Množství
1 ks

Dimensions and weights

Depth
135 mm
깊이 (인치)
5,315 inch
Height
158 mm
Высота (в дюймах)
6,22 inch
Width
162 mm
Width (inches)
6,378 inch
Čistá hmotnost
6.120 g

Temperature

Storage temperature
-15 °C...50 °C
Vlhkost
5…95 % RH

Termékek környezetvédelmi megfelelősége

RoHS Compliance Status
Non interessato
REACH SVHC
Lead 7439-92-1
SCIP
30bf869c-8adc-4ed2-ad02-c1fec963e943

Interfaces de fonctionnement et entrées de commande

Temperature probe
NTC 100 kΩ

Input

Charging current, max.
1,08 A
Nominal capacity
7 Ah
Rated input voltage
24 V DC

Output

Buffer time depending on current
  • Current:
    35 A
  • Buffer time:
    3 min
  • Current:
    27 A
  • Buffer time:
    5 min
  • Current:
    8,5 A
  • Buffer time:
    30 min
Output current, max.
50 A
Overload and short circuit protection
2x25 A fuse
Parallel connection option
Ja
Temperature probe
NTC 100 kΩ

General data

IP20
Ambient temperature
-15 °C...+50 °C
Humidity
5…95 % RH
Life expectancy
5,65 a
Shock wall acc. to IEC 68227
30 g
Vibration DIN rail/wall in accordance with IEC 68-2-6
–/0,7 g

Isolationskoordination

Protection class
III, with no ground connection, for SELV

Connection data (input)

Conductor cross-section, AWG/kcmil , max.
6 AWG
Conductor cross-section, AWG/kcmil , min.
24 AWG
Conductor cross-section, flexible , min.
0,5 mm²
Conductor cross-section, rigid , max.
16 mm²
Conductor cross-section, rigid , min.
0,5 mm²
Number of terminals
2 (+,−)
Tightening torque, max.
2,4 Nm
Tightening torque, min.
1,2 Nm
Wire connection cross section, flexible (input), max.
10 mm²

Connection data (signal)

Number of terminals
2
Wire connection cross-section, flexible (signal), max.
1,5 mm²
Wire connection cross-section, flexible (signal), min.
0,2 mm²
Wire connection method
Šroubové připojení s možností zapojit
Wire cross-section, AWG/kcmil , max.
16
Wire cross-section, AWG/kcmil , min.
24 mm²
Wire cross-section, solid , max.
1,5 mm²
Wire cross-section, solid , min.
0,2 mm²

Классификации

ETIM 8.0
EC002850
ETIM 9.0
EC002850
ETIM 10.0
EC002850
ECLASS 14.0
27-04-06-92
ECLASS 15.0
27-04-06-92
