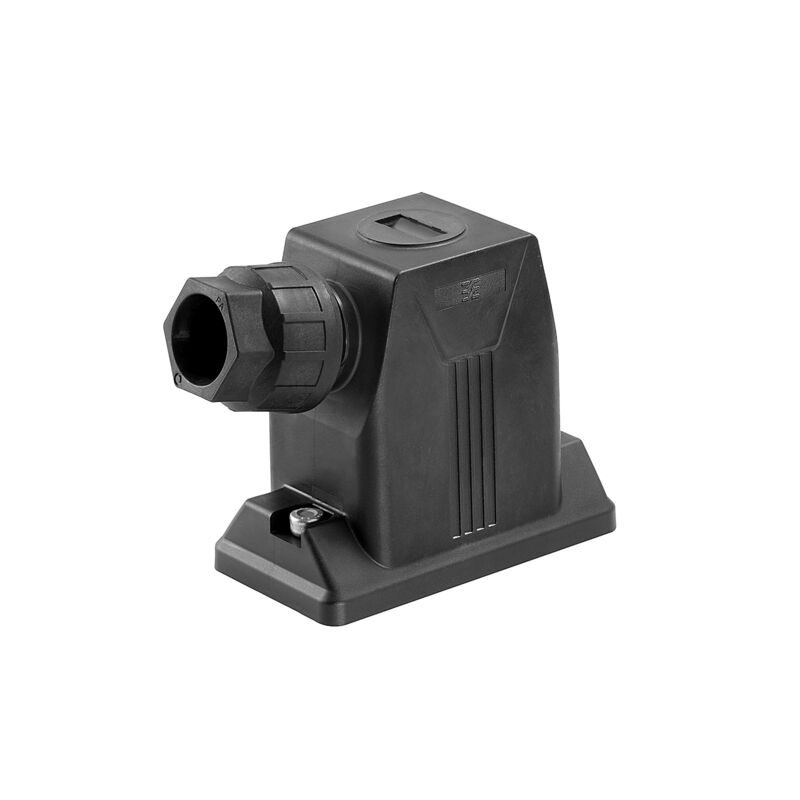

HDC enclosures, Installation size: 4, Protection degree: IP66, IP67, in plugged condition, Cable entry from side, Screw, , Size of cable entries: M 32

Produkt ID 2716760000
Download datablad Engineering-support Produktdownloads
Tilbehør 2 Anvendte produkter 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable Gland WMP Dimensions General data Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801

General ordering data

Version
HDC enclosures, Installation size: 4, Protection degree: IP66, IP67, in plugged condition, Cable entry from side, Screw, , Size of cable entries: M 32
Order No.
2716760000
Type
HDC 10B TSS 1M32 WMP
GTIN (EAN)
4050118803631
Qty.
1 Styk

Dimensions and weights

Height
97 mm
Height (inches)
3.819 inch
Net weight
149 g

Temperatures

Ambient temperature
-40 °C…100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable Gland WMP

Cable diameter, min.
11 mm
Cable diameter, max.
21 mm
AF size
30 mm
Size of cable entries
M 32

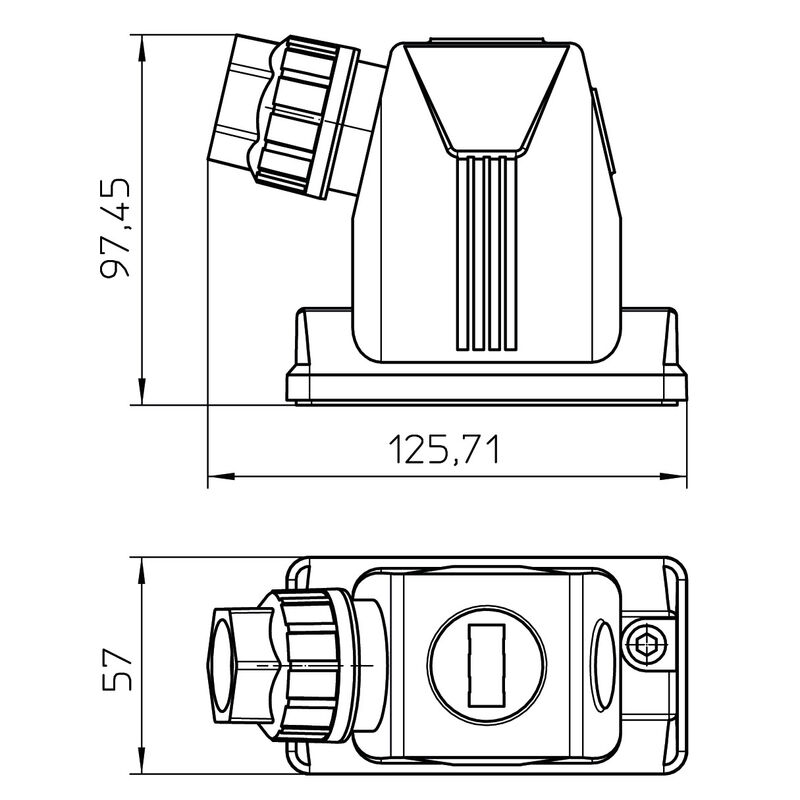

Dimensions

Cable entry
w. cable glands
Height of housing B
97 mm

General data

Protection degree
IP66
IP67
in plugged condition
Surface finish
untreated
UL 94 flammability rating
V-0

Version

BG
4
Colour (RAL)
RAL 9011
Design of locking system
Screw
Dimensiones de las entradas de cable
M 32
Kabelingång
w. cable glands
Meghúzási nyomaték
3 Nm
Number of cable glands
1
Numero entrate cavo laterali
1
Protection
without cover
Sealing
NBR
Suitable for ModuPlug®
Yes
Top part/bottom part/lid
upper part
Типоразмер установки
4
하우징 디자인
Cable entry from side

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
