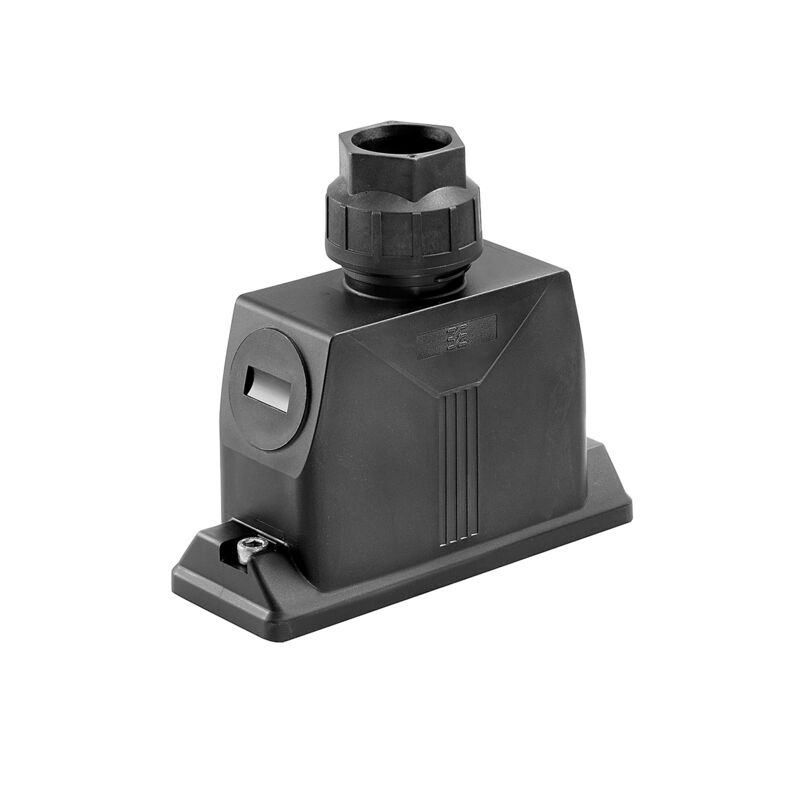

HDC enclosures, Installation size: 8, Protection degree: IP66, IP67, in plugged condition, Cable entry from top, Screw, , Size of cable entries: M 40

Ürün No. 2716740000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 2 İlgili ürünler 3
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable Gland WMP Dimensions General data Version Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801

General ordering data

Version
HDC enclosures, Installation size: 8, Protection degree: IP66, IP67, in plugged condition, Cable entry from top, Screw, , Size of cable entries: M 40
Order No.
2716740000
Type
HDC 24B TOS 1M40 WMP
GTIN (EAN)
4050118803617
Qty.
1 adet

Dimensions and weights

Net weight
185,68 g

Temperatures

Ambient temperature
-40 °C…100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable Gland WMP

Diamètre de câble, min.
19 mm
Kábelátmérő, max.
28 mm
AF size
36 mm
Size of cable entries
M 40

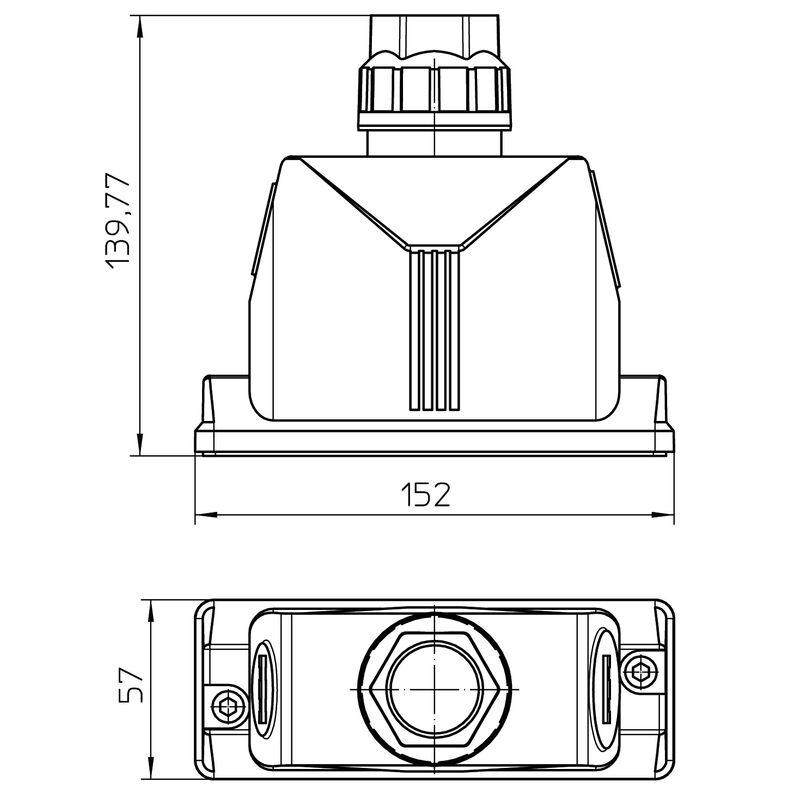

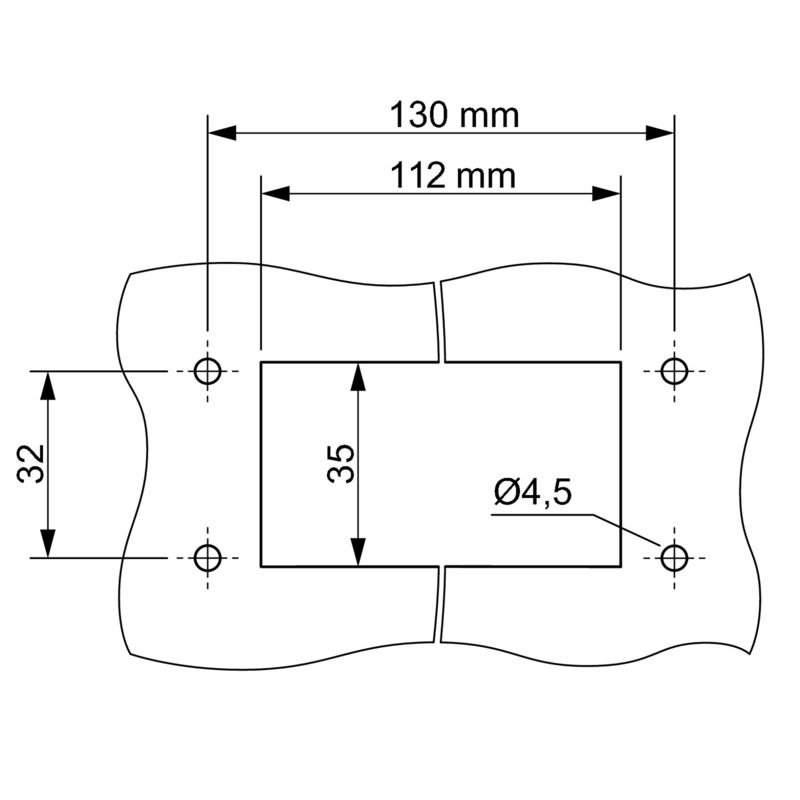

Dimensions

Entrada de cable
w. cable glands

General data

Grado inflamabilidad según UL 94
V-0
Superficie
untreated
Tipo de protección
IP66
IP67
in plugged condition

Version

BG
8
Cable entry
w. cable glands
Colour (RAL)
RAL 9011
Cover
without cover
Design of housing
Cable entry from top
Design of locking system
Screw
Indicado para ModuPlug®
Yes
Instalační velikost
8
Number of cable entry on top
1
Number of cable entry sideways
1
Number of cable glands
1
Sealing
NBR
Size of cable entries
M 40
Tightening torque
3 Nm
Top part/bottom part/lid
upper part

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
