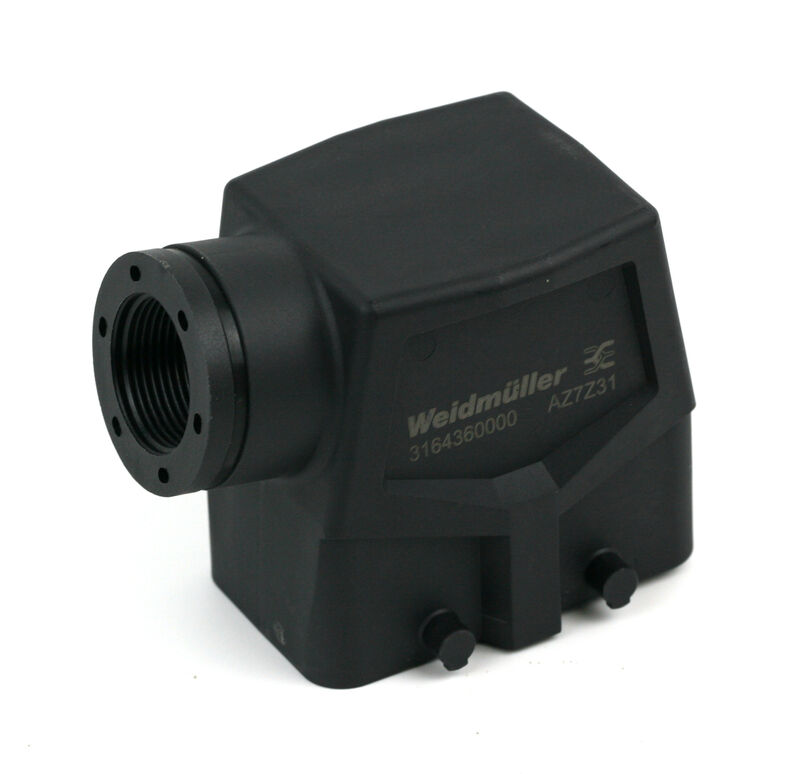

HDC 24D TSBU 1M25 BP
HDC 24D TSBU 1M25 BP

HDC 24D TSBU 1M25 BP

HDC enclosures, Installation size: 4, Protection degree: IP65, in plugged condition, Cable entry from side, Plug housing, Side-locking clamp on lower side, high, Size of cable entries: 1*M25, M 25, M 32

Product ID 3164360000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 6 Is accessoire van 3 Verwante producten 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

ROHS
Conform

General ordering data

Version
HDC enclosures, Installation size: 4, Protection degree: IP65, in plugged condition, Cable entry from side, Plug housing, Side-locking clamp on lower side, high, Size of cable entries: 1*M25, M 25, M 32
Order No.
3164360000
Type
HDC 24D TSBU 1M25 BP
GTIN (EAN)
4099987800587
Qty.
1 items

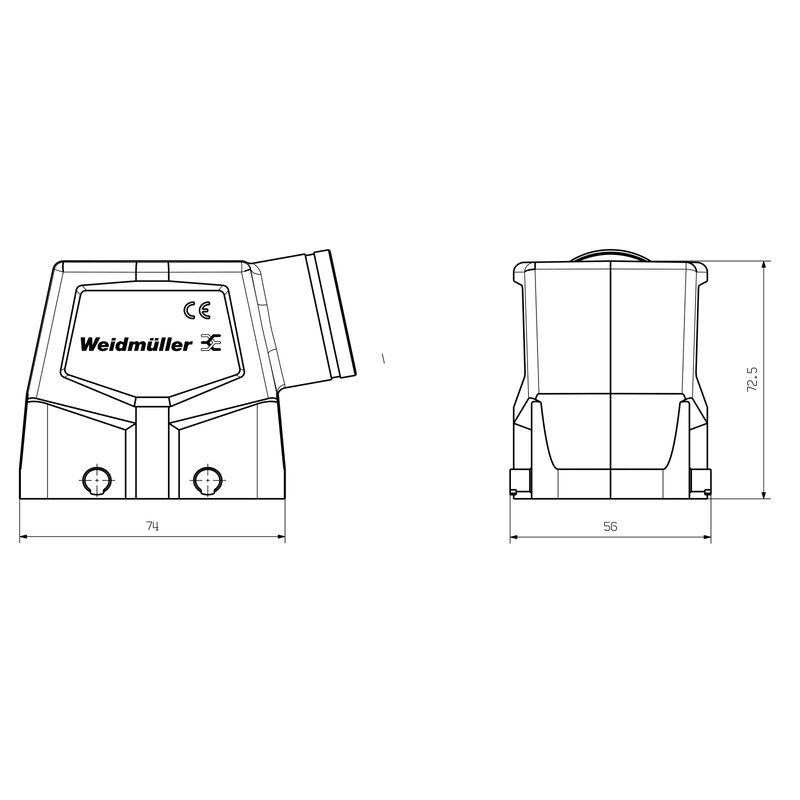

Dimensions and weights

Depth
74 mm
Depth (inches)
2,913 inch
Height
72,5 mm
Height (inches)
2,854 inch
Width
56 mm
Width (inches)
2,205 inch
Net weight
141 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions

Entrada de cable
w. thread

General data

Boîtiers CEM
No
Material capotas
Plastic
Materiale elemento di bloccaggio
Plastic
Protection degree
IP65
in plugged condition
Superficie
Plastic-coated

Version

BG
4
Cable entry
w. thread
Clamp version
Side-locking clamp
Color (RAL)
RAL 9011
Cover
without cover
Design
high
Design of housing
Cable entry from side
Plug housing
Design of locking system
Side-locking clamp on lower side
Indicado para ModuPlug®
Yes
Installation size
4
Internal thread
M 25
Number of cable entry on top
0
Number of cable entry sideways
1
Size of cable entries
1*M25
M 25
M 32
Top part/bottom part/lid
upper part
Type
Plug

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
