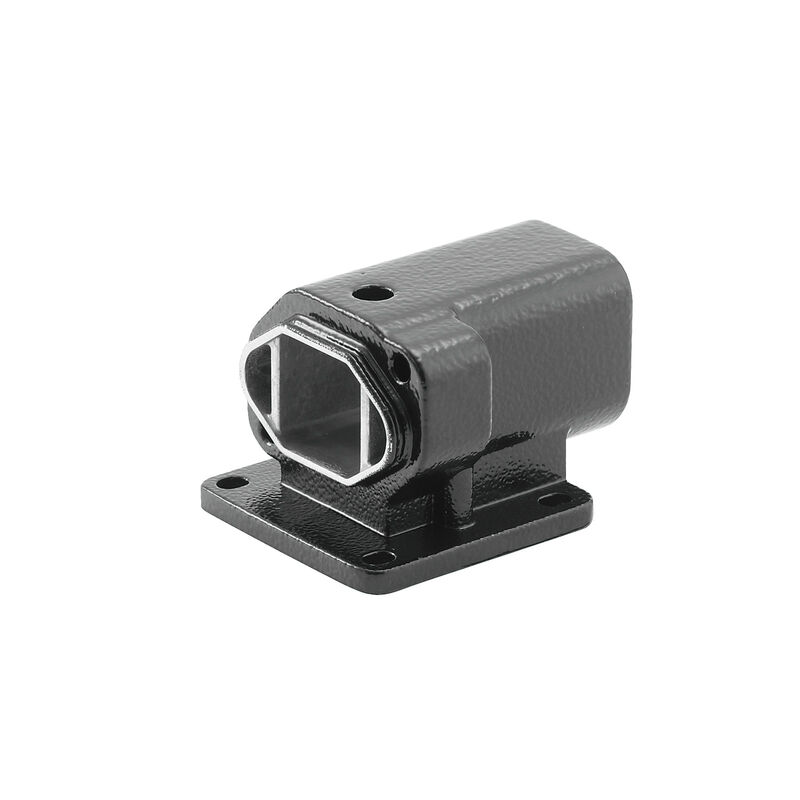

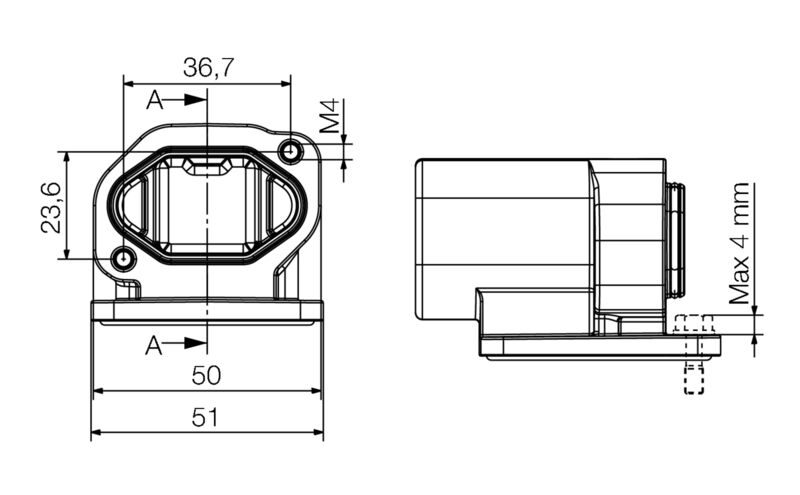

| Version | HDC enclosures, Size: 1, Protection degree: IP66 (in plugged condition), IP68 (in plugged condition), Bulkhead housing, Clamping yoke connection, Standard, Size of cable entries: M 20 |
| Order No. | 1081480000 |
| Type | HDC IP68 04A AWS 1M20 |
| GTIN (EAN) | 4032248844227 |
| Qty. | 1 items |
| Depth | 50 mm |
| Depth (inches) | 1,968 inch |
| Height | 44 mm |
| Height (inches) | 1,732 inch |
| Width | 67 mm |
| Width (inches) | 2,638 inch |
| Mounting dimension - height | 41 mm |
| Mounting dimension - width | 41 mm |
| Net weight | 135 g |
| Limit temperature | -50 °C ... 125 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Chemical resistance |
|
| Cable entry | w. thread |
| Height of housing B | 44 mm |
| Hole pitch length A2 | 41 mm |
| Total length housing | 50 mm |
| EMC housings | Yes |
| Housing main material | diecast aluminium |
| Protection degree |
IP66 (in plugged condition)
IP68 (in plugged condition) |
| Surface finish | Powder coating |
| BG | 1 |
| Cable entry | w. thread |
| Clamp version | Clamping yoke connection |
| Colour (RAL) | RAL 9011 |
| Design | Standard |
| Design of housing | Bulkhead housing |
| Design of locking system | Clamping yoke connection |
| Internal thread | M 20 |
| Number of cable entry on top | 0 |
| Number of cable entry sideways | 1 |
| Sealing | Silicone |
| Size | 1 |
| Size of cable entries | M 20 |
| Suitable for ModuPlug® | No |
| Top part/bottom part/lid | lower part |
| Type | Bulkhead (feed-through) |
| Product information | When mounting the housings, make sure that the flat gasket is correctly seated. |
| Approval/Certificate/Document of Conformity | |
| Engineering Data | |
| Eplan Data Portal | |
| CADENAS eCATALOG | |
| Product Change Notification | |
| Catalogues | |
| Brochures |
| ETIM 6.0 | EC000437 |
| ETIM 7.0 | EC000437 |
| ETIM 8.0 | EC000437 |
| ETIM 9.0 | EC000437 |
| ECLASS 9.0 | 27-44-02-02 |
| ECLASS 9.1 | 27-44-02-02 |
| ECLASS 10.0 | 27-44-02-02 |
| ECLASS 11.0 | 27-44-02-02 |
| ECLASS 12.0 | 27-44-02-02 |
| ECLASS 13.0 | 27-44-02-02 |
| ECLASS 14.0 | 27-44-02-02 |
| Approvals |   |
| ROHS | Conform |
