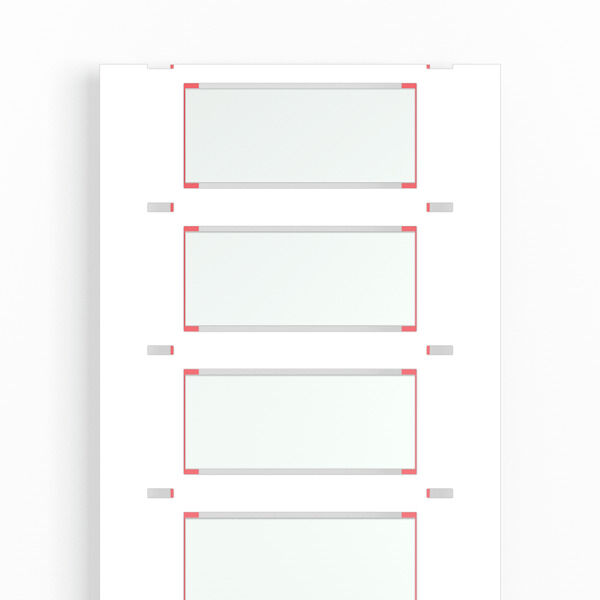

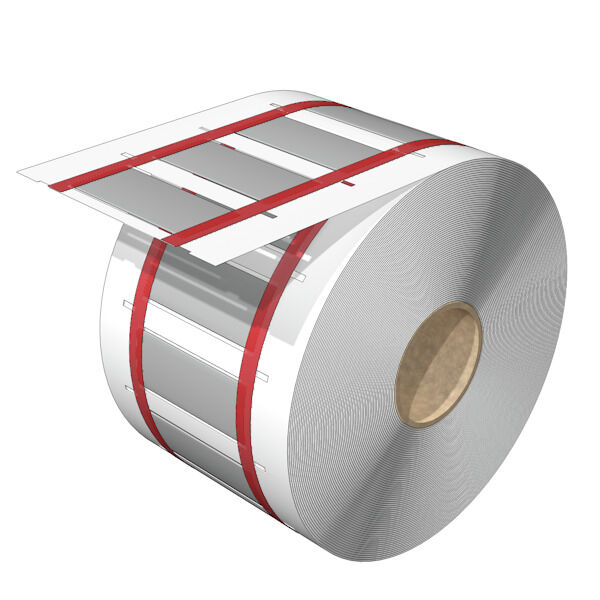

Conductor and cable markers, 4.2 - 12.7 mm, 50.8 x 20.9 mm, white

ID výrobku 2437730000
Stáhnout datový list Product Downloads Engineering Support
Aksesuarlar 3 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dati generali Markery przewodów i kabli Classifications

Approvals

ROHS
Conform

General ordering data

Version
Conductor and cable markers, 4.2 - 12.7 mm, 50.8 x 20.9 mm, white
Order No.
2437730000
Type
HS 4.2-12.7/50 MM W
GTIN (EAN)
4050118460780
Qty.
500 adet

Dimensions and weights

Depth
0,77 mm
Depth (inches)
0,03 inch
Height
50,8 mm
Height (inches)
2 inch
Width
20,9 mm
Width (inches)
0,823 inch
Net weight
1,3 g

Temperatures

Operating temperature range
-55...135 °C

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dati generali

Basic material
Poliolefina
Colour
white
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
[THM-TWINMARK](~/p/1140490000)
Halogen
Yes
Nombre par rouleau
500
Operating temperature range
-55...135 °C
Operating temperature range, max.
135 °C
Operating temperature range, min.
-55 °C
Printed characters
without
Recommended industries
Plant manufacture
Energy
Device manufacturer
Machinery
Type of printing
neutral
Width
20,9 mm

Markery przewodów i kabli

Conductor cross-section, max.
35 mm²
Conductor cross-section, min.
6 mm²
Conductor O.D.
4.2 - 12.7 mm
Conductor O.D., max.
12,7 mm
Conductor O.D., min.
4,2 mm
Cross-section for connected wire
6 - 35 mm²
Halogen
Yes
Rate of shrinkage
3:1
Recommended shrinking temperature
90 °C

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
