Wiring diagram

IE-C5DD4UG0025MCAXXX-X

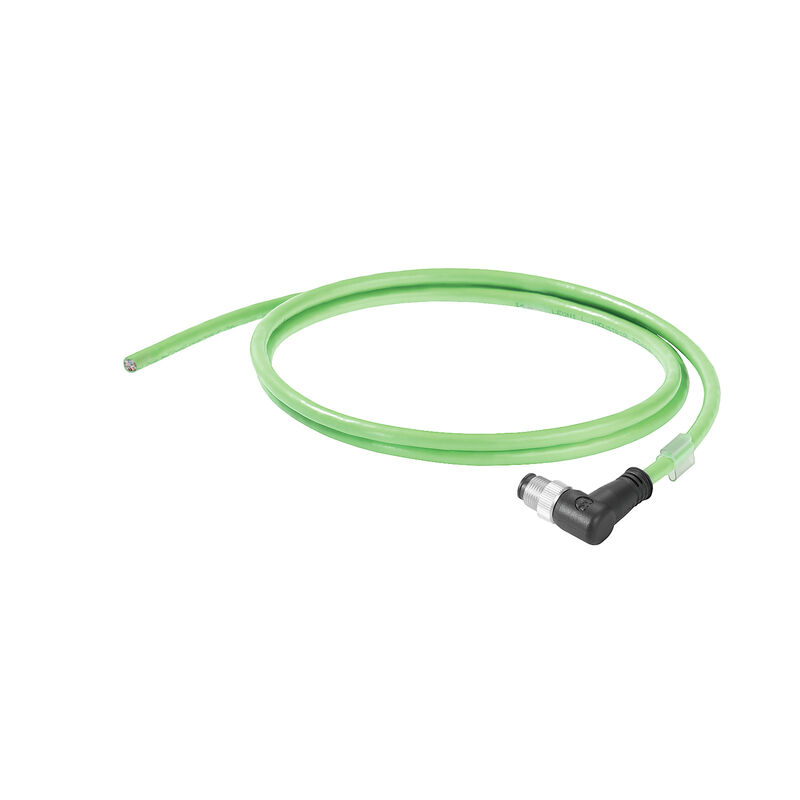

Dragline cable, PROFINET, M12 D-code – IP 67 angled pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 2.5 m

Produkt ID 1059750025
Download datablad Engineering-support
Tilbehør 8 Anvendte produkter 14
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Standardy specifické pro kabel Standards Cable structure Electrical properties of cable Propiedades mecánicas y propiedades de material cable Plug, left Plug, right Classifications

Approvals

ROHS
Conform

General ordering data

Version
Dragline cable, PROFINET, M12 D-code – IP 67 angled pin, Open, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 2.5 m
Order No.
1059750025
Type
IE-C5DD4UG0025MCAXXX-X
GTIN (EAN)
4050118656329
Qty.
1 Styk

Dimensions and weights

Length
2,5 m
Length (inches)
98,425 inch
Net weight
174,575 g

Temperatures

Storage temperature
-50 °C...70 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Standardy specifické pro kabel

Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Standards

Norm Isolationsmaterial
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Norm Leitermaterial
DIN EN 13602 Cu-ETP-A
Norm Schirmmaterial
DIN EN 13602 Cu-ETP-A..B

Cable structure

Anordnung Adern
Star-quad
Anzahl der Adern
4
Colour sequence or wires - wire pairs
white, yellow, blue, orange
Diameter of inner sheathing
3,9 mm
Füller
As central element
Gesamtschirm
Aluminium foil
Shielding braid made from copper wiring
Isolation
PE
Isolationsdurchmesser
1,5 mm
Leitermaterial
Stranded tin-plated copper wire
Litzen
7
Manteldurchmesser, max.
6,7 mm
Manteldurchmesser, min.
6,3 mm
Mantelfarbe
green (RAL 6018)
Normbezeichnungen
2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Querschnitt
4*AWG 22/7 - 0.32 mm²
Schirmung
SF/UTP
Sheathing material thickness
0,9 mm
Shielding braid thickness
0,13 mm
Stärke Aderisolation
0,38 mm
Werkstoff Mantel
PUR
Überdeckung Schirmgeflecht
85 %

Electrical properties of cable

Capacity at 1 kHz
52 nF/km
Category
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Delay skew
40 ns/100m
Loop resistance
120 Ω/km
Operating voltage (UL rating)
600 V
Operating voltage, UL
600 V
Resistance differential
3 %
Signal propagation time
5,3 ns/m
Speed
180 m/min
Test voltage: wire-wire-shield
2.000 Veff, 50 Hz, 1 min
Transfer impedance
20 mΩ/m a 10 MHz

Propiedades mecánicas y propiedades de material cable

Abrasion resistance
매우 좋음
Acceleration
4 m/s²
Bending cycles
3 Mio
Fire propagation
No
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
7.5 x cable diameter
Pulling force
≤ 150 N
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1
Silicone-free
Yes
Speed
180 m/min
UV-resistant
Yes

Plug, left

Plug left
M12, D-coded, IP67, male contact, angled 90°, plug, Plastic, shielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
