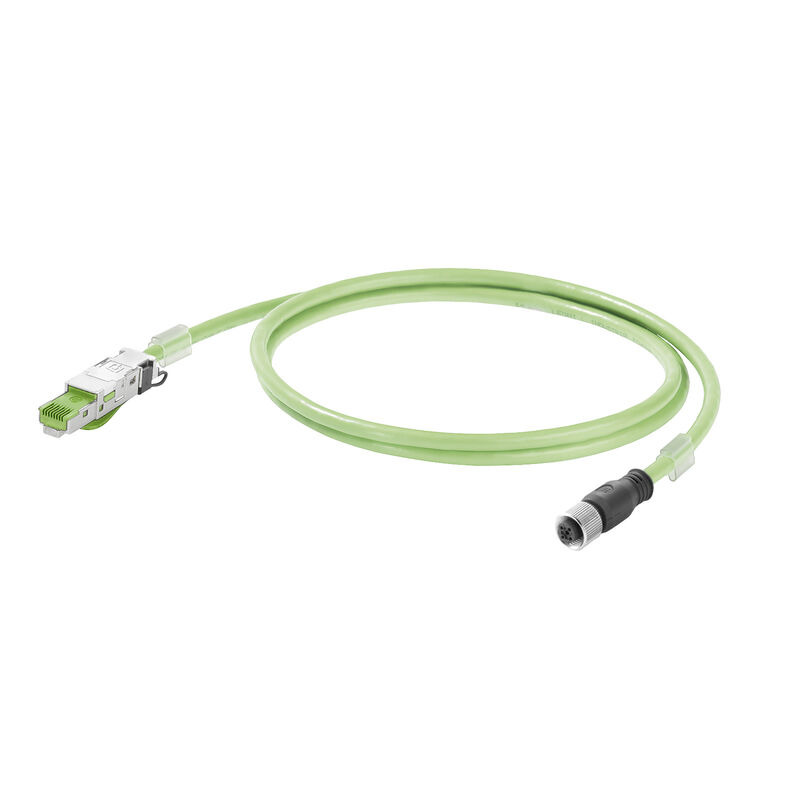

Dragline cable, PROFINET, M12 D-code – IP 67 straight socket, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 20 m

Product ID 1211080200
Gegevensblad downloaden Engineeringondersteuning
Verwante producten 10
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable specific standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug, left Plug, right Classifications

General ordering data

Version
Dragline cable, PROFINET, M12 D-code – IP 67 straight socket, RJ45 IP 20, Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B), PUR, 20 m
Order No.
1211080200
Type
IE-C5DD4UG0200MSSA70-E
GTIN (EAN)
4099987274425
Qty.
1 items

Dimensions and weights

Length
20 m
Length (inches)
787,402 inch
Net weight
1.000 g

Temperatures

Storage temperature
-50 °C...70 °C
Operating temperature
-40 °C...70 °C
Installation temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
67cf1078-beca-4687-860b-dc475a6ec24a

Cable specific standards

Standard, insulating material
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Standards

Norme de matériau d'isolation
DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
Standard, shielding material
DIN EN 13602 Cu-ETP-A..B
Standard, wire material
DIN EN 13602 Cu-ETP-A

Cable structure

Arrangement of wire cores
Star-quad
Complete shielding
Aluminium foil
Shielding braid made from copper wiring
Cross-section
4*AWG 22/7 - 0.32 mm²
Diameter of inner sheathing
3,9 mm
Filler
As central element
Insulation
PE
Insulation cross-section
1,5 mm
Material sheath
PUR
Number of wires
4
Overlap of shielding braid
85 %
Secuencia de los colores conductores – pares de conductores
white, yellow, blue, orange
Sheath diameter, max.
6,7 mm
Sheath diameter, min.
6,3 mm
Sheathing colour
green (RAL 6018)
Sheathing material thickness
0,9 mm
Shielding
SF/UTP
Shielding braid thickness
0,13 mm
Standard designations
2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
Strands
7
Wire core insulation thickness
0,38 mm
Wire material
Stranded tin-plated copper wire

Electrical properties of cable

Capacità a 1 kHz
52 nF/km
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Czas przebiegu sygnału
5,3 ns/m
Delay skew
40 ns/100m
Kategória
Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Motståndsdifferens
3 %
Operating voltage (UL rating)
600 V
Operating voltage, UL
600 V
Transfer impedance
20 mΩ/m at 10 MHz
Velocità
180 m/min
Испытательное напряжение: провод–провод–экран
2000 Veff, 50 Hz, 1 min
루프 저항
120 Ω/km

Mechanical and material properties of cable

Abrasion resistance
very good
Acceleration
4 m/s²
Bending cycles
3 Mio
Fire propagation
No
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
5 x cable diameter
Min. bending radius, repetitive
7.5 x cable diameter
Pulling force
≤ 150 N
Resistance to oils
in accordance with IEC 60811-2-1
Resistance to spread of flame
in accordance with IEC 60332-1
Silicone-free
Yes
Speed
180 m/min
UV-resistant
Yes

Plug, left

Plug left
M12, IP67, female contact, straight, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-07
