IE-C7FS8LR-305M

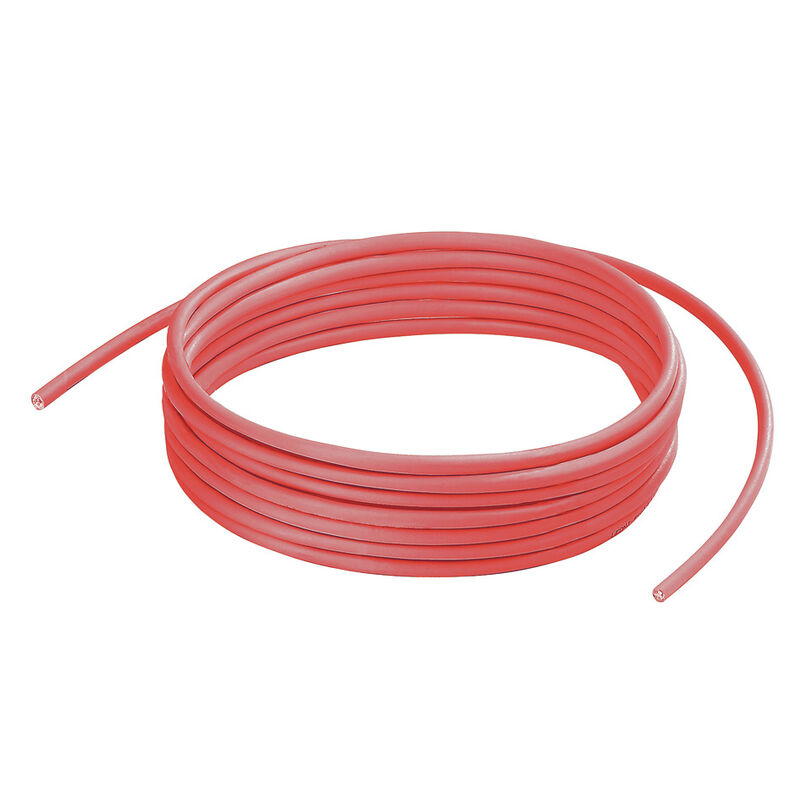

System cable, Cat.7 (ISO/IEC 11801), LSZH, 305 m

Item No. 1287910000
Download data sheet Product Downloads
Related products 15
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical specifications for cable Cable specific standards General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Classifications Approvals

General ordering data

Version
System cable, Cat.7 (ISO/IEC 11801), LSZH, 305 m
Order No.
1287910000
Type
IE-C7FS8LR-305M
GTIN (EAN)
4050118079012
Qty.
1  items
Packaging
as cable ring in carton

Dimensions and weights

Length
305  m
Length (inches)
12,007.874  inch
Net weight
12,300  g

Temperatures

Storage temperature
-20 °C...60 °C
Operating temperature
-20 °C...60 °C
Installation temperature
0 °C...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%

Technical specifications for cable

Halogen
No
Insulation
PE
Number of wires
8
Resistance to spread of flame
in accordance with IEC 60332-1
Sheathing colour
red
Test voltage: wire-wire-shield
2.5 kV / DC for 2 sec

Cable specific standards

Generic communication cable facilities
ISO / IEC 11801:2002
EN 50173-1:2007
Impervious to smoke
to IEC 60754-2

General standards

Certificate no. (cULus)
E349758

Standards

Generic communication cable facilities
ISO / IEC 11801:2002
EN 50173-1:2007
Impervious to smoke
to IEC 60754-2

Cable structure

Arrangement of wire cores
Twisted pair
Colour sequence or wires - wire pairs
white - blue, white - orange, white - green, white - brown
Complete shielding
Shielding braid made from copper wiring
Copper diameter
0.43  mm
Cross-section
4*2*AWG 27/7 - 4*2*0.1 mm²
Insulation
PE
Insulation cross-section
1  mm
Material sheath
LSZH
Number of wires
8
Overlap of shielding braid
60  %
Sheath diameter
6.0 mm
Sheathing colour
red
Shielding
S/FTP
Strands
7
Wire material
Non-insulated copper wire

Electrical properties of cable

Capacity at 1 kHz
44  nF/km
Category
Cat.7 (ISO/IEC 11801)
Characteristic impedance
100 ± 5 Ω at 100MHz
Coupling attenuation up to 1000 MHz
80  dB
Coupling resistance at 10 MHz / m
5  mΩ
Delay skew
2.5  ns/100m
Loop resistance
170  Ω/km
Operating voltage
125 V max.
Resistance differential
5  %
Separating class according to EN 50174-2
d
Shield attenuation up to 1000 MHz
60  dB
Test voltage: wire-wire-shield
2.5 kV / DC for 2 sec

Mechanical and material properties of cable

Halogen
No
Impervious to smoke
to IEC 60754-2
Min. bending radius, once only
5 x cable diameter
Pulling force
max. 40 N
Resistance to spread of flame
in accordance with IEC 60332-1

Classifications

ETIM 6.0
EC000830
ETIM 7.0
EC003249
ETIM 8.0
EC003249
ETIM 9.0
EC003249
ETIM 10.0
EC003249
ECLASS 9.0
27-06-18-05
ECLASS 9.1
27-06-90-90
ECLASS 10.0
27-06-18-01
ECLASS 11.0
27-06-18-01
ECLASS 12.0
27-06-18-01
ECLASS 13.0
27-06-18-01
ECLASS 14.0
27-06-18-01
ECLASS 15.0
27-06-18-01
