IE-SR-2TX-WL-4G-US-V

IE-SR-2TX-WL-4G-US-V

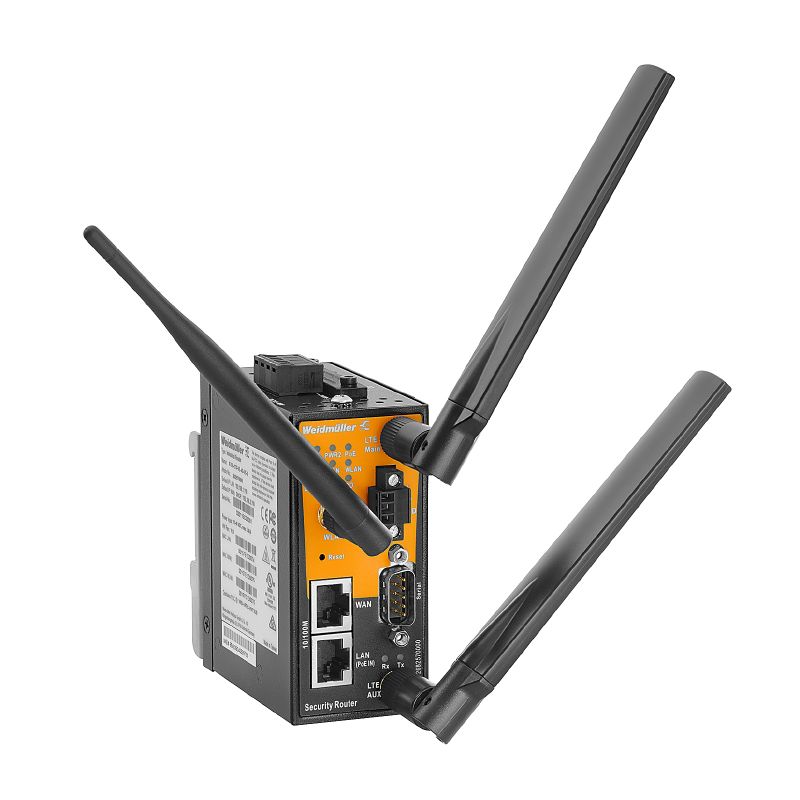

Security/NAT/VPN/U-link Router, with integrated multi-band modem (4G/3G), US-model, Fast Ethernet, 2x RJ45 10/100BASE-T(X), 1x DB9 male for RS-232/422/485, IP30, -25 °C...70 °C

Product ID 2682580000
Gegevensblad downloaden Engineering Support Software Support Product Downloads
Toebehoren 15 Verwante producten 21
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cellular Operator Certification Mobile radio interface EMC conformity and approvals Environmental conditions Guarantee Interfaces Management features MTBF Power supply Routing Features Serial communication parameters Technical data Technology WLAN interface Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

Version
Security/NAT/VPN/U-link Router, with integrated multi-band modem (4G/3G), US-model, Fast Ethernet, 2x RJ45 10/100BASE-T(X), 1x DB9 male for RS-232/422/485, IP30, -25 °C...70 °C
Order No.
2682580000
Type
IE-SR-2TX-WL-4G-US-V
GTIN (EAN)
4050118692136
Qty.
1  items

Dimensions and weights

Depth
81  mm
Depth (inches)
3,189  inch
Height
95  mm
Height (inches)
3,74  inch
Width
45  mm
Width (inches)
1,772  inch
Net weight
437  g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-25 °C...70 °C
Humidity
5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c, 7a, 7cI
REACH SVHC
Lead 7439-92-1
Lead monoxide 1317-36-8
SCIP
9229992a-00b9-4096-8962-200a7f33e289

Cellular Operator Certification

Cellular Operator Certification
[Link to verizon open development certification](https://opendevelopment.verizonwireless.com/device-showcase/device/21247)

Mobile radio interface

Frequency band
LTE-FDD:
B2
B4
B5
B12
B13
B14
B66
B71
WCDMA: B2,B4,B5
Transmission rate mobile radio
  • LTE category:
    CAT 4
  • Download rate, max.:
    150 Mbit/s
  • Upload rate, max.:
    50 Mbit/s
Wireless module
multi-band modem (4G/3G)
Region:
North America

EMC conformity and approvals

EMC standards
EN 55032
EN 55024
FCC Part 15 Subpart B Class A
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz bis 1 Ghz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0,5 kV; Signal: 1 kV
IEC 61000-4-6 CS: 3 Vrms
Free fall
According to IEC 60068-2-31
Safety standard
SELV according to EN 62368-1
UL 61010-1
UL 61010-2-201
Shock
according to IEC 60068-2-27
Vibration
according to IEC 60068-2-6

Environmental conditions

Humidity
5 to 95 % (non-condensing)
Operating altitude
  • Altitude, max.:
    2.000 m
  • Note:
    in acc. with UL
  • Altitude, max.:
    6.000 m
  • Note:
    for restrictions, see the manufacturer's declaration for operating altitude in section downloads
Operating temperature, max.
70  °C
Operating temperature, min.
-25  °C
Storage temperature, max.
85  °C
Storage temperature, min.
-40  °C

Guarantee

Time interval
5 years

Interfaces

Connector for external antennas
2x SMA female
1x RP-SMA female
Digital inputs
1x
5 to 30 V for logic "1"
0 to 2 V for logic "0“
Digital outputs
1x
with a current capacity of 0.2 A at 30 V DC
Function reset button
<5 sec: System reboot and set LAN IP to factory Default
>5 sec: Factory default
Number of ports
2x RJ45 10/100BASE-T(X)
1x DB9 male for RS-232/422/485
Number of SIM-Card slots
2
SIM-Card slot type
Mini-SIM (ID-000 format)

Management features

Device configuration
Webbrowser (HTTP/HTTPS)
SNMP v2c
Command Line Interface (Telnet/SSH)
Upload of a configuration file via web-interface
SMS control commands
Monitoring function
SNMP v2c
Syslog
Event based warning via E-Mail
Event based warning via relay
Event based warning via SNMP trap
Event based warning via SMS
Device information and mobile radio status via SMS request
IP-address management
Static
DHCP-Client
DHCP-Server (pool-based)
DHCP-Relay
DNS-Relay
Security functions
Access Control List (MAC-based) for WLAN Access Point mode
Time synchronization management
NTP server
NTP client
Operating modes
WLAN Access Point
WLAN Client
Virtual COM mode
TCP Server mode
TCP Client mode
UDP Server/Client mode

MTBF

MTBF
  • According to Standard:
    Telcordia SR-332
  • Operating time (hours), min.:
    353.679 h

Power supply

Connection type
1 removable 4-pin terminal block
Current consumption
  • Voltage:
    12 V
  • Current:
    0,46 A
  • Voltage:
    24 V
  • Current:
    0,22 A
  • Voltage:
    48 V
  • Current:
    0,11 A
Overload current protection
Yes
Reverse polarity protection
Yes
Voltage supply
12/24/48 V DC
2 redundant inputs
or 48 V DC Power-over-Ethernet (IEEE 802.3af)
Voltage supply range
  • Voltage type:
    DC
  • Voltage, min.:
    10,8 V
  • Voltage, max.:
    52,8 V

Routing Features

Firewall functions
Stateful Packet Inspection Firewall (Layer-3)
NAT functions
Source / Destination NAT (Port / Host / Network)
Routing functions
IPv4 routing
Static and dynamic IP Routing
VPN functions
u-link client
OpenVPN (Server or Client)
IPSec (Initiator or Responder)

Serial communication parameters

Baud rate
110 bit/s to 460800 bit/s
Data bits
7
8
Parity
none
odd
even
Mark
Space
Stop bits
1
2

Technical data

Housing main material
Metal
Protection degree
IP30
Speed
Fast Ethernet
Type of mounting
DIN rail
Wall mounting

Technology

Standard
IEEE 802.3 for 10BASE-T
IEEE 802.3u for 100BASE-TX
IEEE 802.3af for Power-over-Ethernet
IEEE 802.11b/g/n for Wireless LAN

WLAN interface

Data security
64-bit and 128-bit WEP encryption, WPA/WPA2 Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)
Transmission rate WLAN
  • Standard:
    IEEE 802.11b
  • max.:
    11 Mbit/s
  • min.:
    1 Mbit/s
  • Standard:
    IEEE 802.11g
  • max.:
    54 Mbit/s
  • min.:
    6 Mbit/s
  • Standard:
    IEEE 802.11n
  • max.:
    150 Mbit/s
  • min.:
    6,5 Mbit/s

Important note

Product information
Not compatible with the SCM card IE-EBR-SMARTCARD-SR 2909820000.
