IE-SW-BL05-4TX-1ST

This product will soon be unavailable.

Last order date: /Date(1801263600000)/

Alternative product: 2908140000

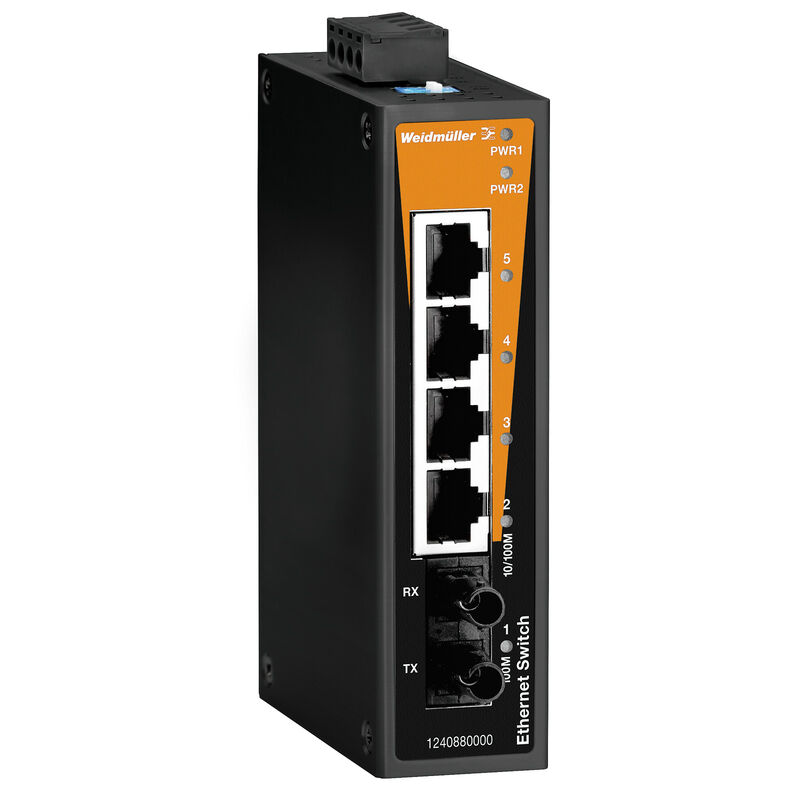

Network switch, unmanaged, Fast Ethernet, Number of ports: 4 x RJ45, 1 * ST Multi-mode, IP30, -10 °C...60 °C

Item No. 1240880000
Open in Configurator
Download data sheet Engineering Support Product Downloads
Accessories 4 Related products 20
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance EMC conformity and approvals Environmental conditions Fibre optic transceiver characteristics Guarantee Interfaces Management features MTBF Power supply Switch characteristics Technical data Technology Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/4a92d911-d582-40e3-85fc-c9e9b159e140/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/77c071f4-46bd-4b7f-8f24-3c61d44584d2/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197
Certificate no. (cULusEX)
E223527

General ordering data

Version
Network switch, unmanaged, Fast Ethernet, Number of ports: 4 x RJ45, 1 * ST Multi-mode, IP30, -10 °C...60 °C
Order No.
1240880000
Type
IE-SW-BL05-4TX-1ST
GTIN (EAN)
4050118028829
Qty.
1 items
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1801263600000)/
Alternative product
[2908140000](~/p/2908140000)

Dimensions and weights

Depth
70 mm
Depth (inches)
2.756 inch
Height
115 mm
Height (inches)
4.528 inch
Width
30 mm
Width (inches)
1.181 inch
Net weight
175 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-10 °C...60 °C
Humidity
5 to 95 % (non-condensing)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9229992a-00b9-4096-8962-200a7f33e289

EMC conformity and approvals

EMC standards
EN 55032
EN 55035
FCC Part 15 Subpart B Class A
IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz - 6 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF: 100A/m
Explosive risk zone
UL/cUL, Class I, Division 2, Groups A, B, C and D
ATEX Zone 2 Ex ec IIC T4 Gc
EN IEC 60079-0
EN IEC 60079-7
Free fall
According to IEC 60068-2-32
Safety standard
UL 61010-1
UL 61010-2-201
EN 62368-1
Ship use
DNV
Shock
according to IEC 60068-2-27
Vibration
according to IEC 60068-2-6

Environmental conditions

Humidity
5 to 95 % (non-condensing)
Operating temperature, max.
60 °C
Operating temperature, min.
-10 °C
Storage temperature, max.
85 °C
Storage temperature, min.
-40 °C

Fibre optic transceiver characteristics

Transmission rate
100 Mbps
Transceiver type
Multimode
Connector type
ST-Duplex
Transmission distance, typ.
5 km
Wavelength
  • typ.:
    1,300 nm
  • Wavelength:
    TX
  • min.:
    1,260 nm
  • max.:
    1,360 nm
  • Wavelength:
    RX
  • min.:
    1,100 nm
  • max.:
    1,600 nm
Receive power
  • min.:
    -32 dBm
  • max.:
    -3 dBm
Transmission power
  • min.:
    -20 dBm
  • max.:
    -10 dBm
Link-budget
12 dB

Guarantee

Time interval
5 years

Interfaces

Fibre-optic ports
100BaseFX ports (ST connector)
Multimode
Function DIP switch
1x for enabling/disabling the broadcast storm protection
QoS (on/off)
MAC frame filtering (on/off)
LED indicator
PWR1
PWR2
10/100M (TP-Port)
100M (fibre-optic port).
Number of ports
4 x RJ45
1 * ST Multi-mode
RJ45 ports
10/100BaseT(X)
auto negotiation
Full-/half-duplex mode
Auto MDI/MDI-X port

Management features

Filter för nätverkstrafik
Quality of Service (QoS)
Industrial protocol support
PROFINET device acc. to conformance class A

MTBF

MTBF
  • According to Standard:
    Telcordia (Bellcore), GB
  • Operating time (hours), min.:
    3,293,423 h
  • Ambient temperature:
    25 °C

Power supply

Connection type
1 removable 4-pin terminal block
Protezione da sovracorrente
1.1 A
Reverse polarity protection
Available
Tápfeszültség
12/24/48 V DC
2 redundant inputs
Диапазон напряжения питания
  • Voltage type:
    DC
  • Voltage, min.:
    9.6 V
  • Voltage, max.:
    60 V
전류 소비량
0.11 A at 24 V

Switch characteristics

Bandwidth backplane
1 Gbit/s
MAC table size
2 K
Packet buffer size
768 kBit
Priority queues
4

Technical data

Geschwindigkeit
Fast Ethernet
Housing main material
Aluminium
Montageart
DIN rail
Panel (with optional mounting kit)
Schutzart
IP30
Switch
unmanaged

Technology

Data switching
Store and Forward
Standard
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1p for Class of Service / Quality of Service (CoS/QoS)
Řízení toku
IEEE 802.3x flow control
Back pressure flow control

Classifications

ETIM 8.0
EC000734
ETIM 9.0
EC000734
ETIM 10.0
EC000734
ECLASS 14.0
19-17-04-02
ECLASS 15.0
19-17-04-02
