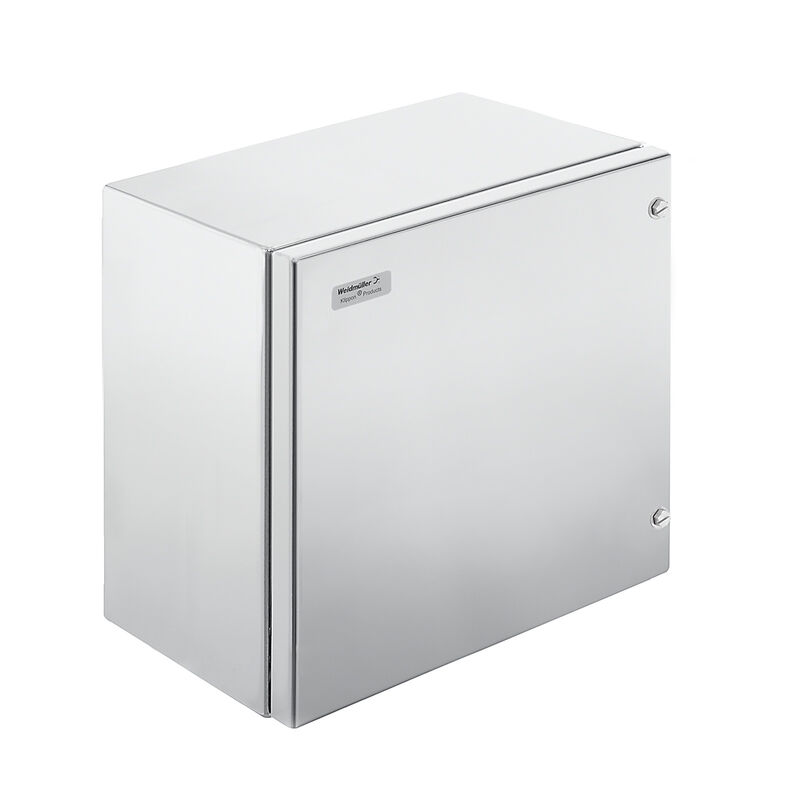

Klippon EBi HS (Essential Box industrial - Hinged Screws), Enclosures, Height: 300 mm, Width: 300 mm, Depth: 200 mm, Gland plates: Bottom, Basic material: Stainless steel 1.4301 (304), untreated, silver

Product ID 8000090351
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 11 Verwante producten 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, left Cable glands, right Cable glands, top/bottom Certifikatnummer kapsling General information horizontal assembly vertical assembly Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Klippon EBi HS (Essential Box industrial - Hinged Screws), Enclosures, Height: 300 mm, Width: 300 mm, Depth: 200 mm, Gland plates: Bottom, Basic material: Stainless steel 1.4301 (304), untreated, silver
Order No.
8000090351
Type
KEBIHS303020S2N1 AL
GTIN (EAN)
4064675855651
Qty.
1 items

Dimensions and weights

Depth
200 mm
Depth (inches)
7,874 inch
Height
300 mm
Height (inches)
11,811 inch
Width
300 mm
Width (inches)
11,811 inch
Net weight
6.461,626 g

Temperatures

Operating temperature
-40 °C...85 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Cable glands, left

M12
72
M16
45
M20
28
M25
18
M32
15
M40
8

Cable glands, right

M12
72
M16
45
M20
28
M25
18
M32
15
M40
8

Cable glands, top/bottom

M12
55
M16
36
M20
21
M25
18
M32
8
M40
6

Certifikatnummer kapsling

Declaration of Conformatiy No. (DoC LVD)
DE PS2650 220428 001ISS01

General information

Espesor de la carcasa
1,5 mm
Material thickness of cover
1,5 mm
Material thickness of flange
3 mm
Operating temperature, max.
85 °C
Silicona
No
Üzemi hőmérséklet, min.
-40 °C
글랜드 플레이트
Bottom
기본 재질
Stainless steel 1.4301 (304)
보호 등급
IP66
실링 자재
Chloroprene
인클로저 장착
Installation through the housing rear wall
참고: 보호 등급
IP protection is only given after wall mounting using the enclosed sealing washers.
충격 저항
10 J version standard
커버 부착
M5 hexagonal screw with slot and 10mm distance across flats + hinge
표면 마감
untreated
플랜지 플레이트
Yes

horizontal assembly

WDU 10 / ZDU 10
1x20
WDU 16 / ZDU 16
1x16
WDU 2,5 / ZDU 2,5 / IDU 2,5
2x40
WDU 35 / ZDU 35
1x12
WDU 4 / ZDU 4
2x33
WDU 6 / ZDU 6
2x25

vertical assembly

WDU 10 / ZDU 10
1x20
WDU 16 / ZDU 16
1x17
WDU 2,5 / ZDU 2,5 / IDU 2,5
1x41
WDU 35 / ZDU 35
1x12
WDU 4 / ZDU 4
1x34
WDU 6 / ZDU 6
1x25

Classifications

ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
