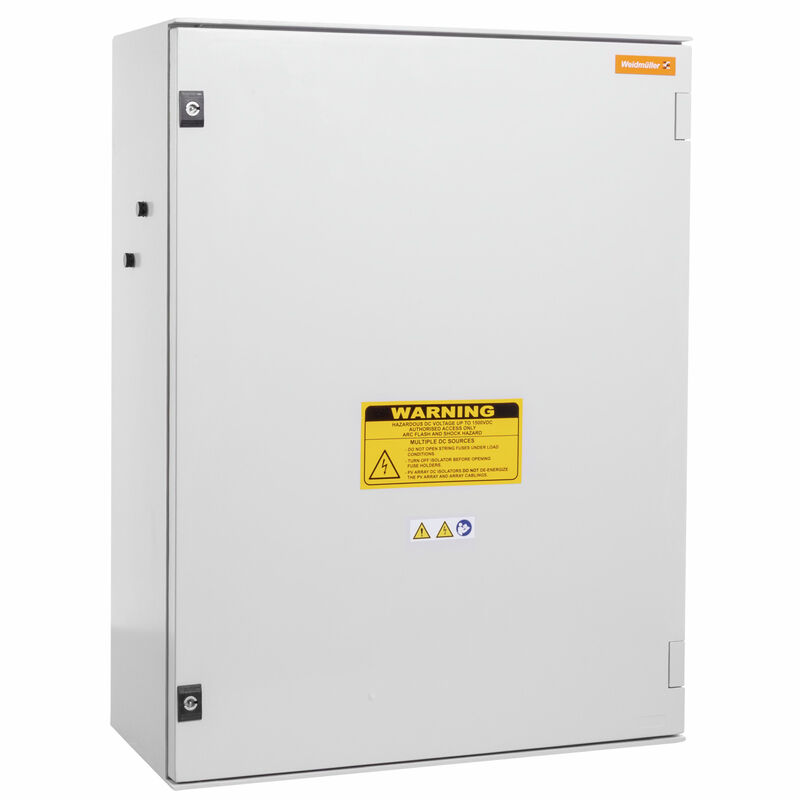

Photovoltaics, Assembled enclosure, Combiner Box, 1500 V, With fuse holder, Surge protection II, Cable gland, for wall mounting, Switch disconnector, Portrait, Central Inverter

Ürün No. 8000078882
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
İlgili ürünler 24
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance DC villamos tulajdonságok DC inputs DC outputs DC string monitoring Housing Norms and standards Guarantee Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Photovoltaics, Assembled enclosure, Combiner Box, 1500 V, With fuse holder, Surge protection II, Cable gland, for wall mounting, Switch disconnector, Portrait, Central Inverter
Order No.
8000078882
Type
PV 224S0F3CXXV0O0TXPX15PWW
GTIN (EAN)
4064675468912
Qty.
1 adet

Dimensions and weights

Depth
300 mm
Depth (inches)
11.811 inch
Height
847 mm
Height (inches)
33.346 inch
Width
636 mm
Width (inches)
25.039 inch
Net weight
22,476.427 g

Temperatures

Ambient temperature
-20 °C…45 °C
Operating temperature
-20ºC to +45 ºC

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
No SVHC above 0.1 wt%

DC villamos tulajdonságok

Earthing
Direttamente al VPU
Kapcsolási kapacitás
400 A (DC21B 1500 V)
Protezione contro le sovratensioni lato DC
1500 V type II without remote contact
Tensión nominal
1,500 V

DC inputs

Connection DC input cable (+)
Screw connection
Connection DC input cable (-)
Screw connection
Connection type, DC input cable
Cable gland
DC Input + & -
  • Wire connection:
    • Type of connection:
      M16 Cable gland
  • Cable entry:
    • Number of cable entries:
      48
    • Průměr kabelu, min.:
      5 mm
    • Cable diameter, max.:
      10 mm
Functional earth connector
  • Cable entry:
    • Liczba wejść kablowych:
      1
    • Średnica kabla, min.:
      6 mm
    • Диаметр кабеля, макс.:
      12 mm
  • Kabelanslutning:
    • Type of connection:
      M20 Cable gland
Fuse type
Empty fuse holder
Fuse-link standard
gPV (EN 60269-6)
Fused poles of string
+/-
Number of conduit inlets
51
Number of DC inputs
24
Number of inputs
24
Position of the fuses
positive and negative inputs
Säkringsskydd
15 A
16 A
20 A
25 A
30 A
32 A
Type of fuse
Empty fuse holder
Вставка предохранителя
10 x 85 mm

DC outputs

Collegamento cavo di uscita DC
M10 bolt and nut connection
DC 출력 수
2
Load circuit breaker with auxiliary contact
No
Uscita DC + & -
  • Wire connection:
    • Type of connection:
      M40 Cable gland
    • Wire cross-section, min.:
      150 mm²
    • Wire cross-section, max.:
      300 mm²

DC string monitoring

Monitoring function
Non monitored

Housing

IP66
Type of mounting
Wall mounting

Norms and standards

Standards
EN 61439-2:2011
IEC 61439-2 ed 3.0

Guarantee

Time interval
5 years

Classifications

ETIM 8.0
EC003857
ETIM 9.0
EC003857
ETIM 10.0
EC003857
ECLASS 14.0
22-57-02-92
ECLASS 15.0
22-57-02-92
