SAIE-M12S-4S-H5.5TL
SAIE-M12S-4S-H5.5TL
Dimensioned drawing
L (board-to-board distance) = 5.5mm
SAIE-M12S-4S-H5.5TL
PCB design
SAIE-M12S-4S-H5.5TL
Front panel section
SAIE-M12S-4S-H5.5TL
Pole scheme
Pin

SAIE-M12S-4S-H5.5TL

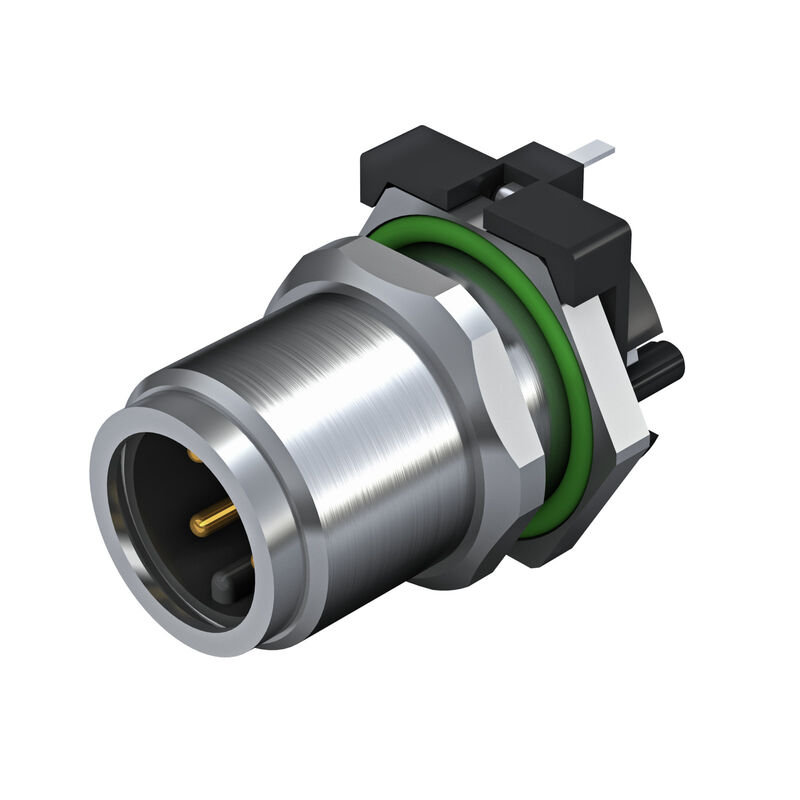

Built-in plugs, M12, Mounting thread: M 12, Number of poles: 4, Strand / cable length:

Produkt ID 2423330000
Download datablad Engineering-support
Anvendte produkter 24
Approvals General ordering data Dimensions and weights Environmental Product Compliance Технические данные вставного разъема печатной платы General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Versión
Built-in plugs, M12, Mounting thread: M 12, Number of poles: 4, Strand / cable length:
Código
2423330000
Tipo
SAIE-M12S-4S-H5.5TL
GTIN (EAN)
4050118431575
CPZ
10 Styk

Dimensions and weights

순중량
8,3 g

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant with exemption
Exención RoHS (si procede/conocida)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Технические данные вставного разъема печатной платы

Coding
A-kodad
Housing surface
nickel-plated
Housings
M12 pin
Installation height
5,5 mm
Number of poles
4
Připojení stínění
Yes
Rosca de montaje
M12
Type of mounting
Rear panel mounting
Nennspannung
250 V
Nennspannung
250 V (4-pole) / 60 V (5-pole)
Nominal current
4 A
Rated current
4 A
Temperature range
-30…80 °C
Protection degree
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Filettatura del collegamento
M12
Tightening torque
M12: 0.8 Nm
장착 나사산
M 12
Mounting torque
  • max.:
    1,2 Nm
Zakres momentu dokręcania przy montażu
1.2 Nm
Сопротивление изоляции
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Number of poles
4
Housing main material
CuZn
nickel-plated
Connection thread
M12
Contact material
Cu-alloy
Поверхность контакта
Au (Gold)
Type of mounting
Rear panel mounting
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Érintkező anyaga
Cu-alloy
Contact surface
Au (Gold)

System parameters

Insulation resistance
100 MΩ
Number of poles
4
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
