SAIL-7/8BG-5-2.0U
SAIL-7/8BG-5-2.0U
Dimensioned drawing
Straight socket
SAIL-7/8BG-5-2.0U
Pole scheme
Female
SAIL-7/8BG-5-2.0U
Wiring diagram

SAIL-7/8BG-5-2.0U

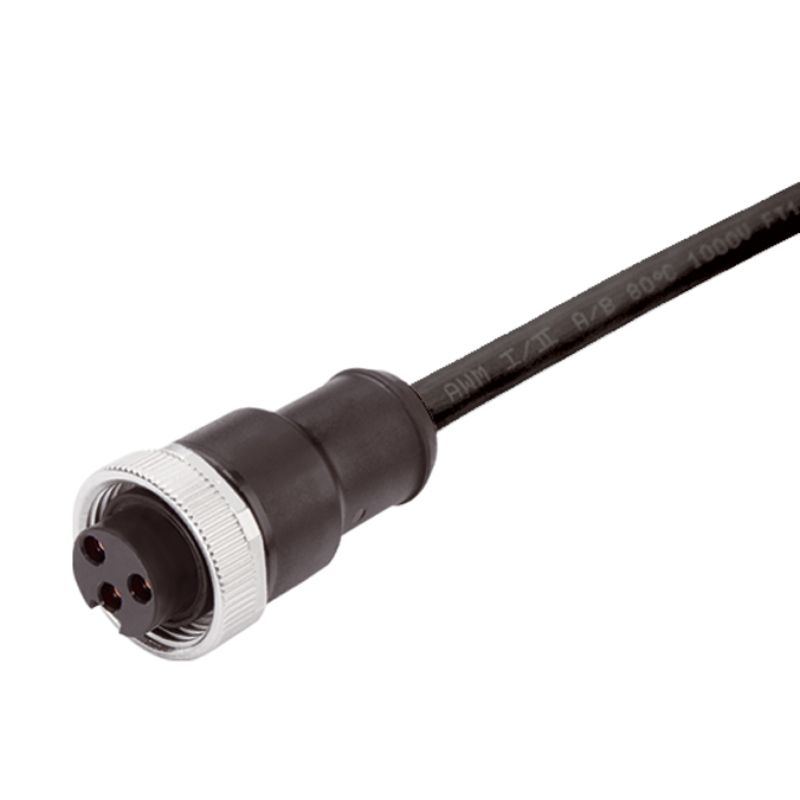

Sensor/actuator line, One end without connector, 7/8", Number of poles : 5 (4 + PE), 2 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 1292190200
Veri sayfasını indir Mühendislik desteği
İlgili ürünler 15
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, 7/8", Number of poles : 5 (4 + PE), 2 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1292190200
Type
SAIL-7/8BG-5-2.0U
GTIN (EAN)
4050118088328
Qty.
1 adet

Dimensions and weights

Net weight
200 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Aislamiento
TPM
Cable length
2 m
Colour coding
brown
white
blue
black
Green/yellow
Core cross-section
1,5 mm²
Geschirmt
No
Hajlítási ciklusok
5 Mio
Halógenos
No
Lunghezza cavo configurabile
No
Number of poles
5 (4 + PE)
Outer cladding in accordance with UL AWM style
20234 (80 °C / 1000 V)
Outside diameter
8.7 mm ± 0.2 mm
PE function
Yes
Rayon de courbure, mobile
7.5 x cable diameter
Resistant to welding beads
No
Sheathing colour
black
Sieciowane radiacyjnie
No
Temperature range, moving
-20...80 °C
Torsion resistance
0 °/m
Vhodné pro nosiče kabelů
Yes
Стойкость к сварочным искрам
No
静止时的温度范围
-50...80 °C
외피 재질
PUR

General technical data

Coding
none
Connection thread
7/8"
Contact material
CuZn
Contact surface
Au (Gold)
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
9 A
Nominal voltage
300 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP68
when screwed in
Rated impulse voltage
2.500 V
Rated voltage (UL)
600 V
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Diecast zinc
Version
Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
300 V
Rated current
9 A (4- and 5-pole), 12 A (3-pole)
Volume resistance
≤3 mΩ

General standards

Certificate no. (cULus)
E307231

Plug, left

Plug left
7/8", IP68, female contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
