SAIL-M12GM12W-S3-5.0P

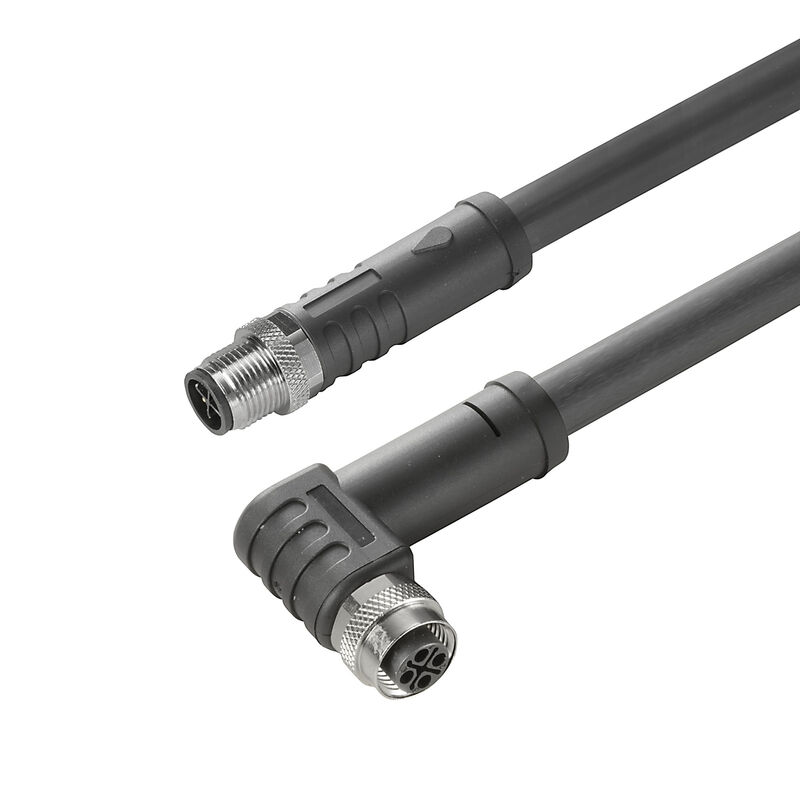

Power cable, Connecting line, M12 / M12, Number of poles : 3 (2 + PE), 5 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 2050100500
Veri sayfasını indir Product Downloads
İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Datos técnicos del cable Datos técnicos generales Electrical properties Normes générales Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E310075

General ordering data

Version
Power cable, Connecting line, M12 / M12, Number of poles : 3 (2 + PE), 5 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
2050100500
Type
SAIL-M12GM12W-S3-5.0P
GTIN (EAN)
4050118441406
Qty.
1 adet

Dimensions and weights

Net weight
300 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Datos técnicos del cable

Acceleration
5 m/s²
Bending cycles
10 Mio
Bending radius, min., moving
7,5 x diamètre du câble
Bending radius, min., stationary
4 x diamètre du câble
Cable length
5 m
Colour coding
파란색
갈색
녹색/노란색
Configurable cable length
No
Core cross-section
1,5 mm²
Halogen
No
Insulation
PP
Irradiation crosslinked
No
Number of poles
3 (2 + PE)
Outer cladding in accordance with UL AWM style
20234 (80 °C / 1000 V)
Outside diameter
8.5 mm ± 0.3 mm
PE function
Yes
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
5 m/s
Suitable for cable carriers
Yes
Temperature range, moving
-40...80 °C
Temperature range, stationary
-50...80 °C
Welding spark resistance
No

Datos técnicos generales

AF size
13 mm
Coding
S-coded
Connection thread
M12 / M12
Contact surface
förgylld
Housing main material
PUR
Insulation resistance
108 Ω
LED
No
Nominal current
12 A
Nominal voltage
600 V
Protection degree
IP67
when screwed in
Steckzyklen
≥ 100
Temperature range of housing
-40 … +85 ° C
Tightening torque
M12: 1.0 Nm
Verschmutzungsgrad
3
Version
pin, straight - socket, 90°

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
600 V

Normes générales

Certificate no. (cULus)
E310075
Connector standard
IEC 61076-2-111

Standards

Connector standard
IEC 61076-2-111

Plug, left

Plug left
M12, S-coded, IP67, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, S-coded, IP67, female contact, angled 90°, Plastic, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
