SAIL-M8BG-4-20U
SAIL-M8BG-4-20U
Dimensioned drawing
Male, straight
SAIL-M8BG-4-20U
Pole scheme
Socket
SAIL-M8BG-4-20U
Wiring diagram

SAIL-M8BG-4-20U

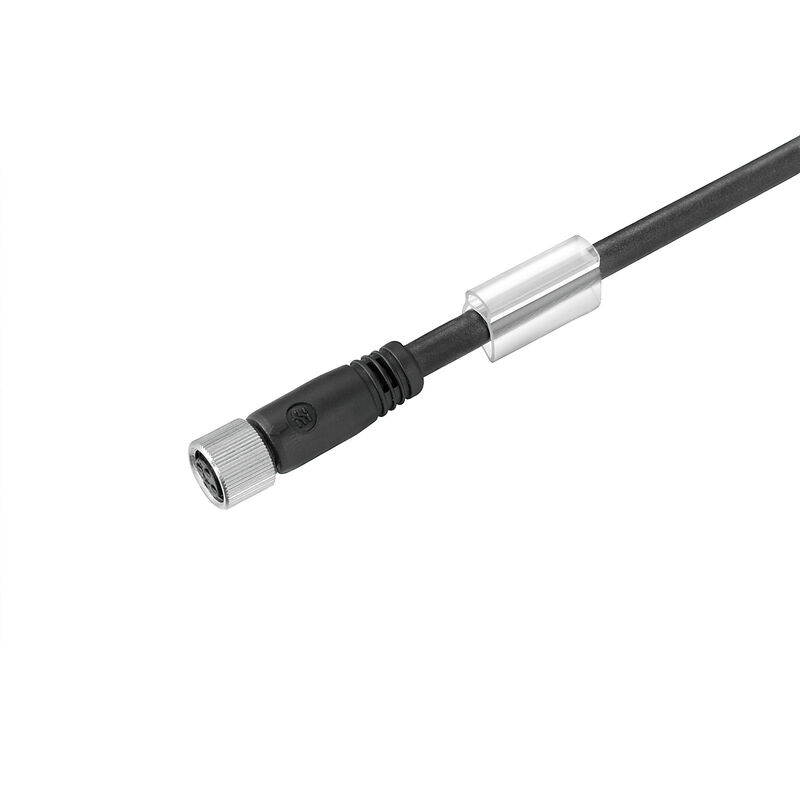

Sensor/actuator line, One end without connector, M8, Number of poles : 4, 20 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 9457852000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Toebehoren 6 Verwante producten 21
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M8, Number of poles : 4, 20 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457852000
Type
SAIL-M8BG-4-20U
GTIN (EAN)
4032248753529
Qty.
1 adet

Dimensions and weights

Net weight
434.72 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Aceleración
5 m/s²
Aislamiento
PP
Apantallado
No
Cable length
20 m
Ciclos de flexión
12 Mio
Core cross-section
0.25 mm²
Halógenos
No
Hydrolysis and microbe resistant
Yes
Köpeny anyaga
PUR
Length of torsion
1 m
Lunghezza cavo configurabile
No
Number of poles
4
Number of wires
4
Outside diameter
4.4 mm ± 0.2 mm
Radio de flexión mín., con movimiento
10 x cable diameter
Radio de flexión mín., fijo
5 x cable diameter
Resistance to oils
in accordance with IEC 60811:404
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Sheathing colour
black
Suitable for cable carriers
Yes
Temperature range, moving
-25...80 °C
Vitesse
3.33 m/s
Диапазон температур, стацион.
-50...80 °C
Жила в соответствии с UL; проводниковые материалы для бытовых приборов (AWM)
10493 (80 °C / 300 V)
Наружная оболочка в соответствии с UL; проводниковые материалы для бытовых приборов (AWM)
20549 (80 °C / 300 V)
Облучение с перекрестными связями
No
Прочность при кручении
180 °/m
Стойкость к сварочным искрам
No
Устойчивые к каплям сварочного металла
No
Цветовая кодировка
brown
white
blue
black
Циклы изгиба при скручивании
> 5 Mio.
무 LABS
Yes

General technical data

IP65
IP66
IP67
IP68
when screwed in
IP69
Coding
A-coded
Connection thread
M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
30 V
Plugging cycles
≥ 100
Pollution severity
3
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M8: 0.5 - 0.6 Nm
Version
Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
30 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-104

Standards

Connector standard
IEC 61076-2-104

Plug, left

Plug left
M8, IP69, female contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
