SAIL-M8WM8G-3-10U
SAIL-M8WM8G-3-10U
Dimensioned drawing
Male, angled
SAIL-M8WM8G-3-10U
Dimensioned drawing
Male, straight
SAIL-M8WM8G-3-10U
Pole scheme
Male
SAIL-M8WM8G-3-10U
Pole scheme
Socket
SAIL-M8WM8G-3-10U
Wiring diagram
Schaltbild
SAIL-M8WM8G-3-10U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M8WM8G-3-10U

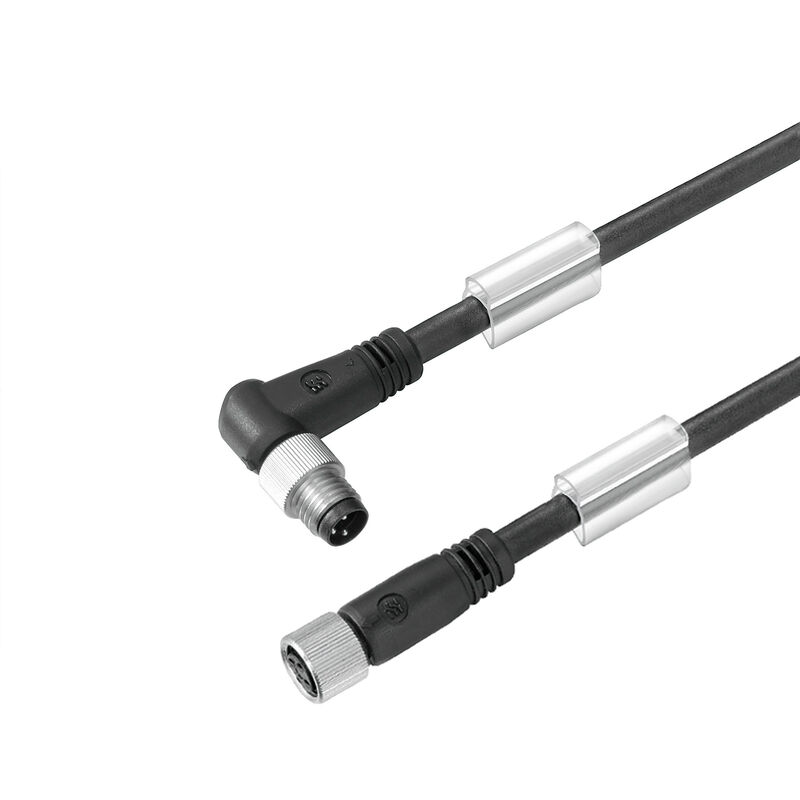

Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 3, 10 m, pin, angled - bush straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Product ID 1073021000
Gegevensblad downloaden Productdownloads Engineeringondersteuning
Toebehoren 6 Verwante producten 8
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, Connecting line, M8 / M8, Number of poles : 3, 10 m, pin, angled - bush straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1073021000
Type
SAIL-M8WM8G-3-10U
GTIN (EAN)
4032248831234
Qty.
1 items

Dimensions and weights

Diameter
3,6 mm
Net weight
187 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Alogeni
No
Bending cycles at torsion
> 5 Mio.
Colore della guaina
black (similar to RAL 9005)
Colour coding
brown
blue
black
Drain wire integrated
No
Hydrolysis and microbe resistant
Yes
Idoneità all'installazione con catene portacavi
Yes
Irradiation crosslinked
No
Isolamento
PP
Kärna i enlighet med UL AWM-stil
10493 (80 °C / 300 V)
Length of torsion
1 m
Lunghezza del cavo
10 m
Number of poles
3
Outside diameter
3.6 mm + 0.15 mm
Resistant to welding beads
No
Resistenza agli olii
Yes
Schermato
No
Sezione del conduttore
0,25 mm²
Temperature range, moving
-25...60 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
180 °/m
Welding spark resistance
No
Наружная оболочка в соответствии с UL; проводниковые материалы для бытовых приборов (AWM)
20549 (80 °C / 300 V)
가속
5 m/s²
구부림 반경, 최소, 고정
5 x cable diameter
구부림 반경, 최소, 이동
10 x cable diameter
구부림 주기
5 Mio
구성 가능 케이블 길이
No
속도
3,33 m/s
외피 재질
PUR
화염 내성
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2

General technical data

Coding
A-coded
Connection thread
M8 / M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
IP69
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
M8: 0.5 - 0.6 Nm
Version
pin, angled - bush straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
60 V

General standards

Connettori a norma
IEC 61076-2-104
N° Certificato (cULus)
E307231

Standards

Csatlakozó, standard
IEC 61076-2-104

Plug, left

Plug left
M8, IP69, male contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
M8, IP69, female contact, straight, Plastic, unshielded

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
