SAIL-VSC-5.0U
SAIL-VSC-5.0U

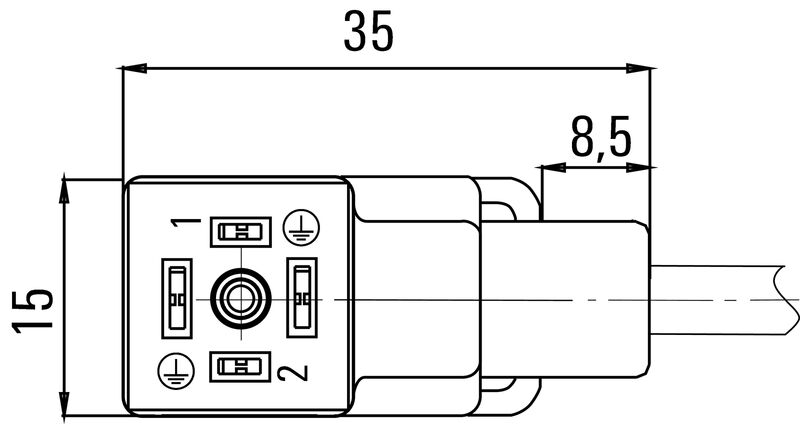

Dimensioned drawing
SAIL-VSC-5.0U
Pole scheme
SAIL-VSC-5.0U
Wiring diagram

SAIL-VSC-5.0U

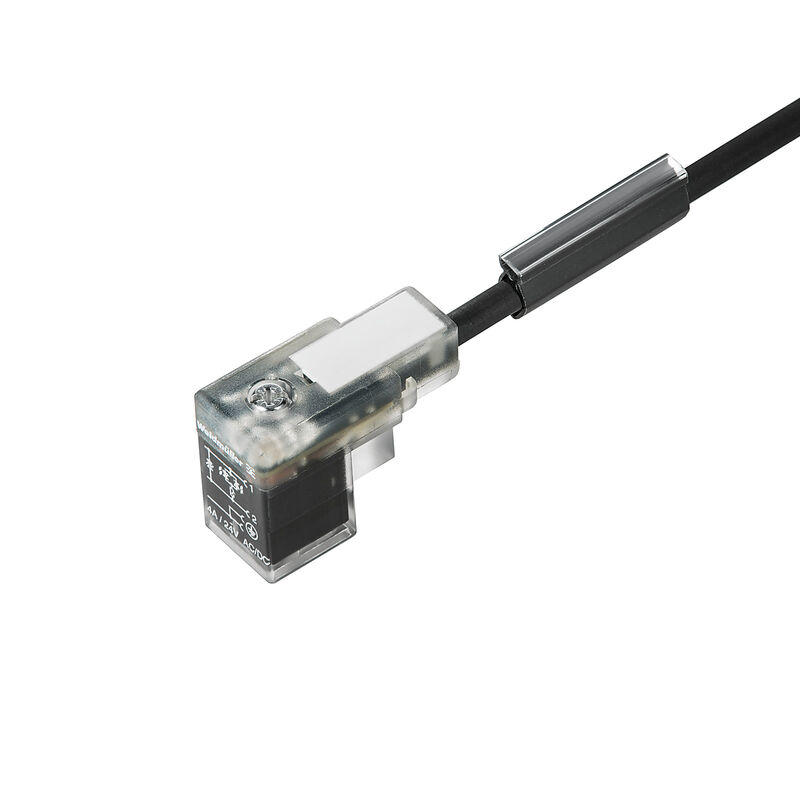

Valve cable (assembled), One end without connector - valve plug, Industrial design C (9.4 mm), Cable length: 5 m, PUR, black

Produkt ID 9457920500
Download datablad Produktdownloads
Anvendte produkter 5
Approvals General ordering data Dimensions and weights Environmental Product Compliance 케이블의 기술 사양 일반 기술 데이터 Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Valve cable (assembled), One end without connector - valve plug, Industrial design C (9.4 mm), Cable length: 5 m, PUR, black
Rendelési szám
9457920500
Type
SAIL-VSC-5.0U
GTIN (EAN)
4032248229475
Qty.
1 items

Dimensions and weights

Net weight
141,68 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

케이블의 기술 사양

Acceleration
5 m/s²
Bending cycles
2 Mio
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Colore della guaina
black
Colour coding
brown
blue
Green/yellow
Core cross-section
0,5 mm²
Ekranowane
No
Idoneità all'installazione con catene portacavi
Yes
Insulation
PP
Lunghezza del cavo
5 m
Number of poles
3
Outside diameter
4.6 mm ± 0.2 mm
Resistant to welding beads
No
Sheath material
PUR
Speed
200 m/s
Temperature range, moving
-25...80 °C
Temperature range, stationary
-50...80 °C
Torsion resistance
0 °/m
Welding spark resistance
No
Галогены
No

일반 기술 데이터

All valve plugs are fitted with protective circuits
Zener diode
Coding
Industrial design C (9.4 mm)
Connection thread
Miscellaneous
Contact material
CuZn
Contact surface
tinned
LED
Yes
Meghúzási nyomaték
Mounting screw M3: 0.4 Nm
M2.5 mounting screw: 0.3 Nm
Nominal current
4 A
Nominal voltage
24 V
Protection degree
IP67
when screwed in
Temperature range of housing
-25…+80 °C
Version
One end without connector - valve plug

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-12
ECLASS 15.0
27-06-03-12
