SAIL-ZW-VSA-1.0U
Product image
SAIL-ZW-VSA-1.0U

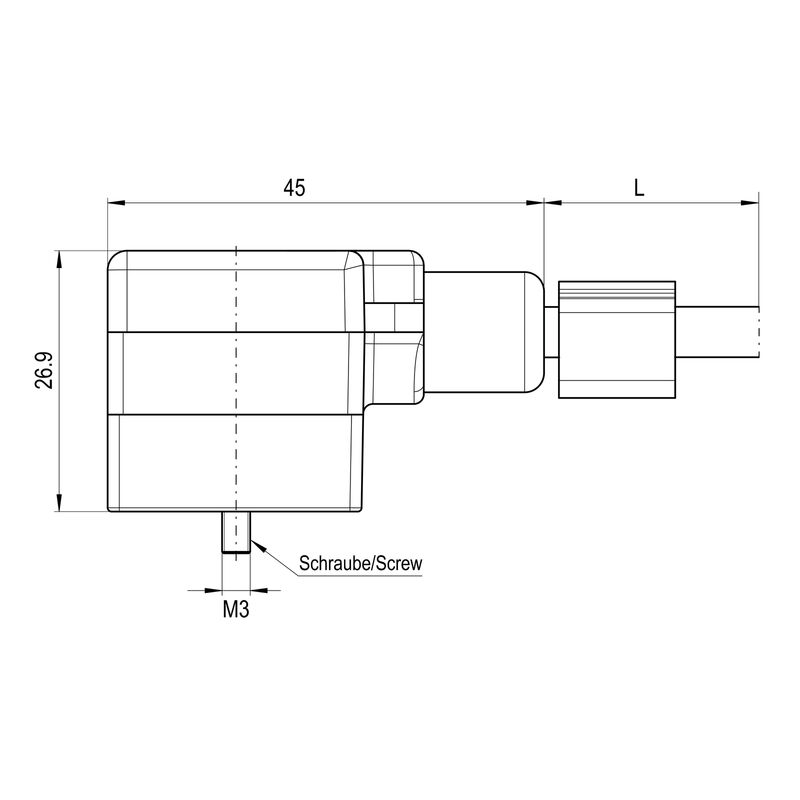

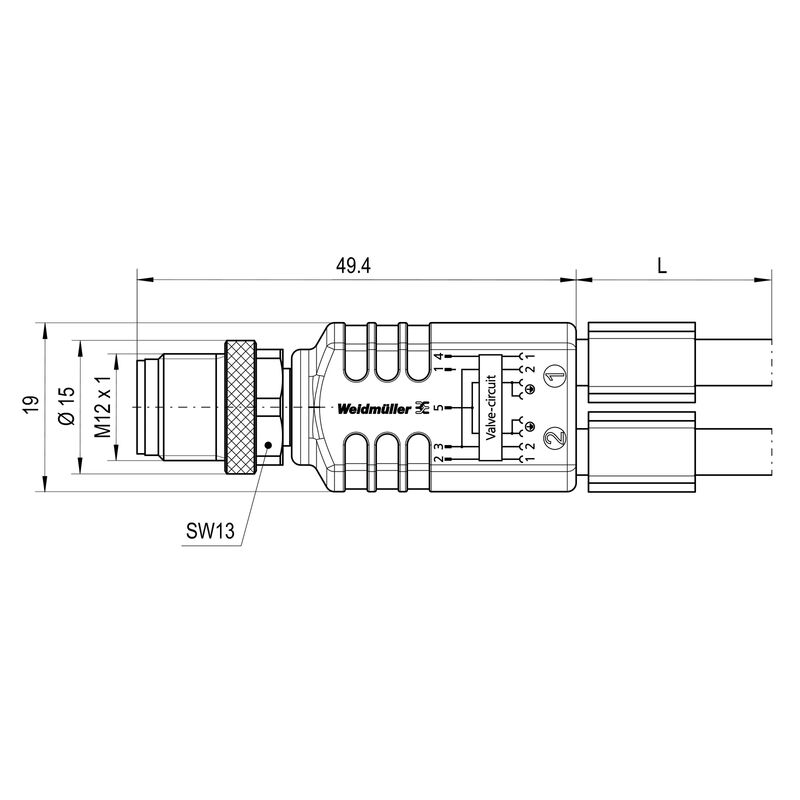

Dimensioned drawing
SAIL-ZW-VSA-1.0U

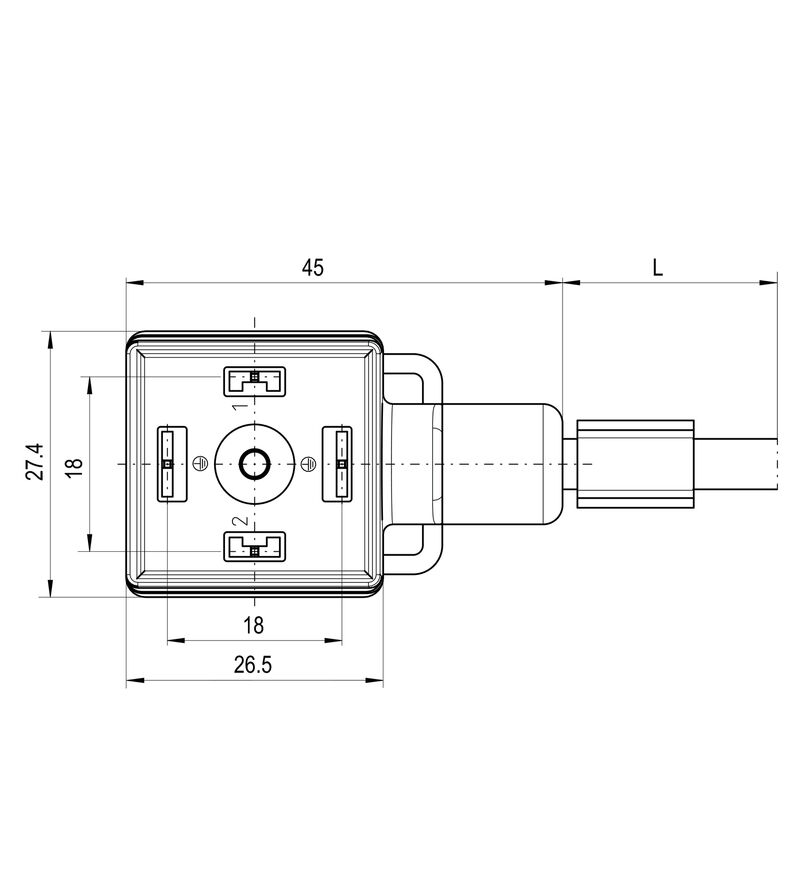

Dimensioned drawing
SAIL-ZW-VSA-1.0U
Pole scheme
SAIL-ZW-VSA-1.0U
Pole scheme
M12, pin, A-coded

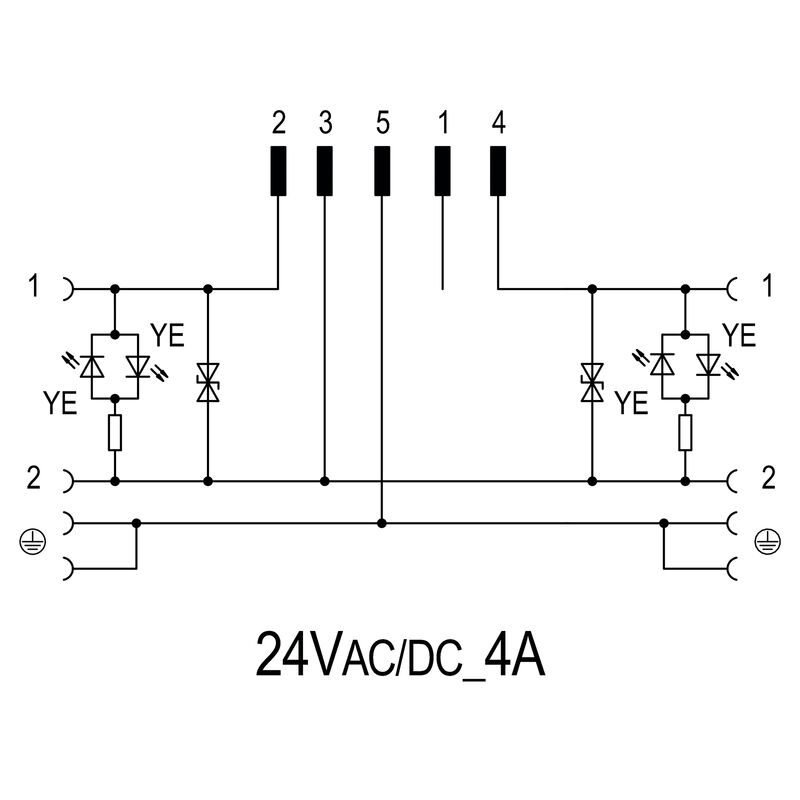

SAIL-ZW-VSA-1.0U
Wiring diagram

SAIL-ZW-VSA-1.0U

Valve cable (assembled), Straight plug - valve plug, Design A (18 mm), M12 = A-coded, Cable length: 1 m, PUR, black

Item No. 1332340100
Download data sheet
Related products 3
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Valve cable (assembled), Straight plug - valve plug, Design A (18 mm), M12 = A-coded, Cable length: 1 m, PUR, black
Référence
1332340100
Type
SAIL-ZW-VSA-1.0U
GTIN (EAN)
4050118137668
Qty.
1 items

Dimensions and weights

Net weight
170 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Barva opláštění
black
Cable length
1 m
Cykly ohybu
3 Mio
Halogen
No
Materiál pláště
PUR
Nombre de pôles
5
Odolnost proti zkrutu
180 °/m
Plage de température, en mouvement
-30...90 °C
Poloměr ohybu, min., pohyblivý
10 x cable diameter
Poloměr ohybu, min., stacionární
5 x cable diameter
Průřez jádra
0.34 mm²
Stíněný
No
Temperature range, stationary
-40...90 °C
Tropicalisé (résistant aux perles de soudure)
Yes
Vhodné pro nosiče kabelů
Yes
Zrychlení
5 m/s²

General technical data

AF size
13 mm
All valve plugs are fitted with protective circuits
Suppressor diode
Coding
Design A (18 mm)
M12 = A-coded
Connection thread
M12 plug
Contact material
CuSn
silver-plated
CuZn
Gold-plated
LED
Yes
Nominal current
4 A
Nominal voltage
24 V
Plugging cycles
≥ 100
Protection degree
IP65
IP67
IP68
when screwed in
Temperature range of housing
-30…+90 °C
Threaded ring material
Brass, nickel-plated
Tightening torque
Mounting screw M3: 0.4 Nm
M12: 1.0 Nm
Version
Straight plug - valve plug
