Properties

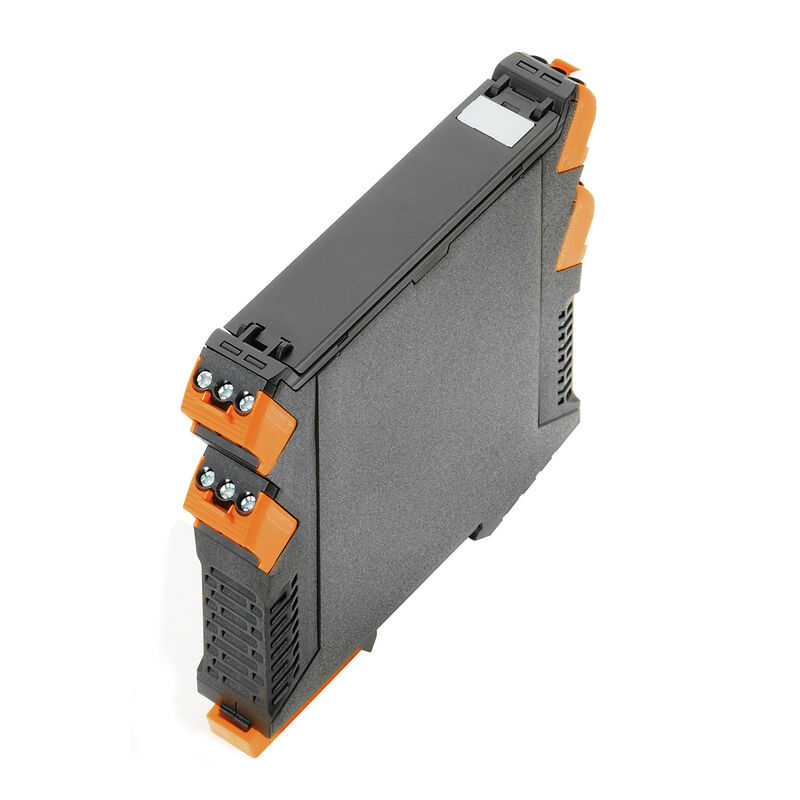

| Version | Electronics housing sample, OMNIMATE Housing - series CH20M black, Sample kit for developers, consisting of individual parts incl. female plug, unmounted, Enclosure set, Connection technology, Width: 17.5 mm |
| Order No. | 1255820000 |
| Type | SAMPLE CH20M17 3/3 PCB |
| GTIN (EAN) | 4050118048629 |
| Qty. | 1 items |
| Depth | 114 mm |
| Depth (inches) | 4.488 inch |
| Height | 117.2 mm |
| Height (inches) | 4.614 inch |
| Width | 17.5 mm |
| Width (inches) | 0.689 inch |
| Length | 113.6 mm |
| Length (inches) | 4.472 inch |
| Net weight | 116.82 g |
| Installation temperature | -25 °C...85 °C |
| Humidity | 5 - 93% rel. humidity, Tu = 40°C, no condensation |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| tested acc. to standard |
IEC 60664-1
IEC 61984 |
| Rated current, max. number of poles (Tu=20°C) | 10 A |
| Rated current, max. number of poles (Tu=40°C) | 9 A |
| Rated voltage for surge voltage class / pollution degree II/2 | 400 V |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Clearance, min. | 3 mm |
| Creepage distance, min. | 3.2 mm |
| Comparative Tracking Index (CTI) | 400 ≤ CTI <600 |
| Insulating material | PA 66 GF 30 |
| Insulating material group | II |
| Material |
Plastic
PA 66 GF 30 |
| Surface finish | untreated |
| UL 94 flammability rating | V-0 |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Encapsulation option | No |
| Protection degree | IP20 in installed state |
| PCB thickness | 1.6 mm |
| Tolerance for the PCB shape | ±0.1 mm |
| Tolerance of circuit board thickness | ±0.15 mm |
| Number of connection levels | 3 |
| Number of PCBs, max. | 1 |
| Number of ventilation openings | 0 |
| Number of poles | 18 |
| Cross-connection | No |
| Type of contact to PCB | Solder connection, direct |
| Type of connection | Clamping yoke |
| Flip cover mountable | Yes |
| Marker integrateable | Yes |
| Safety lock | sealable |
| Cut out as preperation for functional port integrated | No |
| Color of clip-on foot | orange |
| Cross-connection | No |
| Number of connection levels | 3 |
| Number of poles | 18 |
| Stripping length | 8 mm |
| Blade size | 0.6 x 3.5 mm |
| Tightening torque, min. | 0.4 Nm |
| Tightening torque, max. | 0.5 Nm |
| Clamping range, min. | 0.13 mm² |
| Clamping range, max. | 2.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire connection cross section AWG, max. | AWG 14 |
| Solid, min. H05(07) V-U | 0.2 mm² |
| Solid, max. H05(07) V-U | 2.5 mm² |
| Stranded, max. H07V-R | 2.5 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, min. | 0.25 mm² |
| w. plastic collar ferrule, DIN 46228 pt 4, max. | 2.5 mm² |
| w. wire end ferrule, DIN 46228 pt 1, min. | 0.25 mm² |
| w. wire end ferrule, DIN 46228 pt 1, max. | 2.5 mm² |
| Max. clamping range | 2.5 mm² |
| Product information | Circuit board contour, restricted zones, and other information for the design in of the circuit board can be found in the category connection technology under the corresponding male headers in the downloads. |
| Engineering Data |
[CAD data -- PCB_position_70149_LP-POSITION_17MM](https://mdcop.weidmueller.com/mediadelivery/asset/900_188764)
[CAD data -- Pin_header_pin_length_CH20M_A_OV_PCB-SHL_70315](https://mdcop.weidmueller.com/mediadelivery/asset/900_188765) |
| User Documentation |
[Guideline customerspecific housings](https://mdcop.weidmueller.com/mediadelivery/asset/900_177964)
[Guideline kundenspezifische Gehäuse](https://mdcop.weidmueller.com/mediadelivery/asset/900_177965) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257)
[FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-27-02 |
| ECLASS 13.0 | 27-19-03-01 |
| ECLASS 14.0 | 27-19-03-01 |
| ROHS | Conform |
