Egenskaber

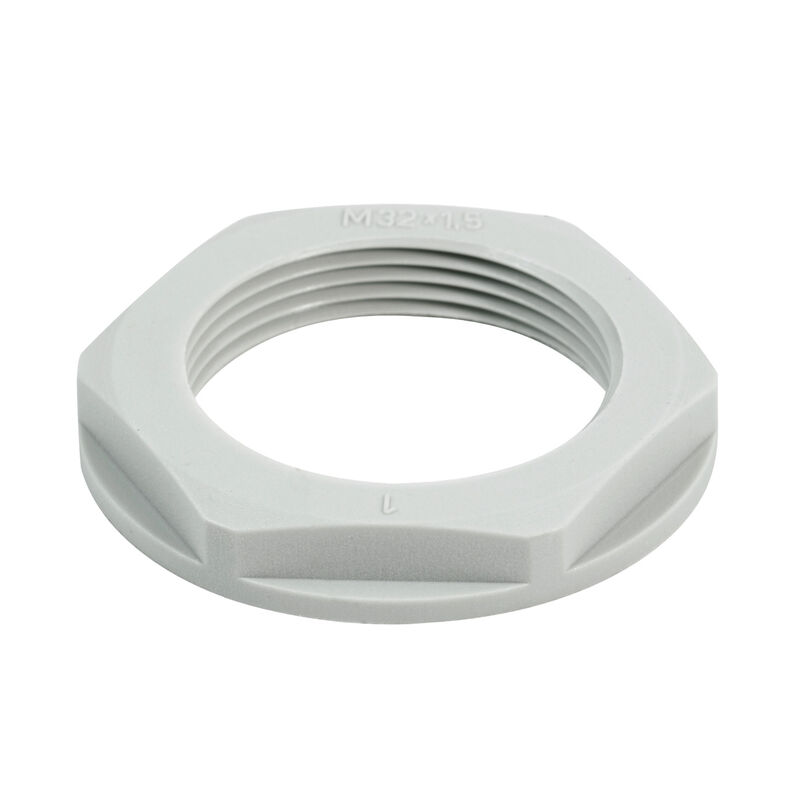

| Version | SKMU PA (plastic locknut), Locknut, M 63, 8 mm, Polyamid 6 (PA6 - GF30) |
| Order No. | 1772510000 |
| Type | SKMU M63 - K GR |
| GTIN (EAN) | 4032248130252 |
| Qty. | 10 Styk |

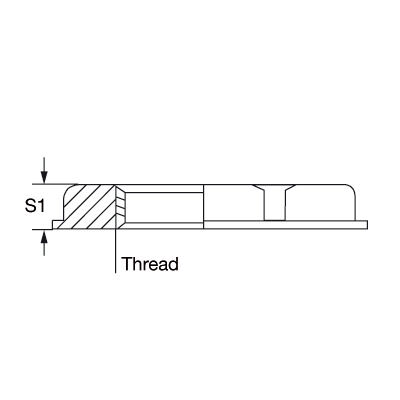

| Height | 8 mm |
| Height (inches) | 0,315 inch |
| Net weight | 4,1 g |
| Operating temperature | -40 °C...100 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| AF size 1 | 75 mm |
| Cable glands | M 63 |
| External thread | M 63 |
| Halogen | No |
| Internal thread | M 63 |
| Length of thread | 8 mm |
| Material | Polyamid 6 (PA6 - GF30) |
| O.D. | 116,55 mm |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| Pitch of thread | 1,5 mm |
| Silicone | No |
| Thickness | 8 mm |
| UL 94 flammability rating | HB |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_54442) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1772510000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1772510000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000940 |
| ETIM 7.0 | EC000940 |
| ETIM 8.0 | EC000940 |
| ETIM 9.0 | EC000940 |
| ECLASS 9.0 | 27-14-44-24 |
| ECLASS 9.1 | 27-14-44-24 |
| ECLASS 10.0 | 27-14-44-24 |
| ECLASS 11.0 | 27-14-44-24 |
| ECLASS 12.0 | 27-14-08-07 |
| ECLASS 13.0 | 27-14-08-07 |
| ECLASS 14.0 | 27-14-08-07 |
| Approvals |  |
| ROHS | Conform |
