製品情報
注文番号 | 2666080000 |

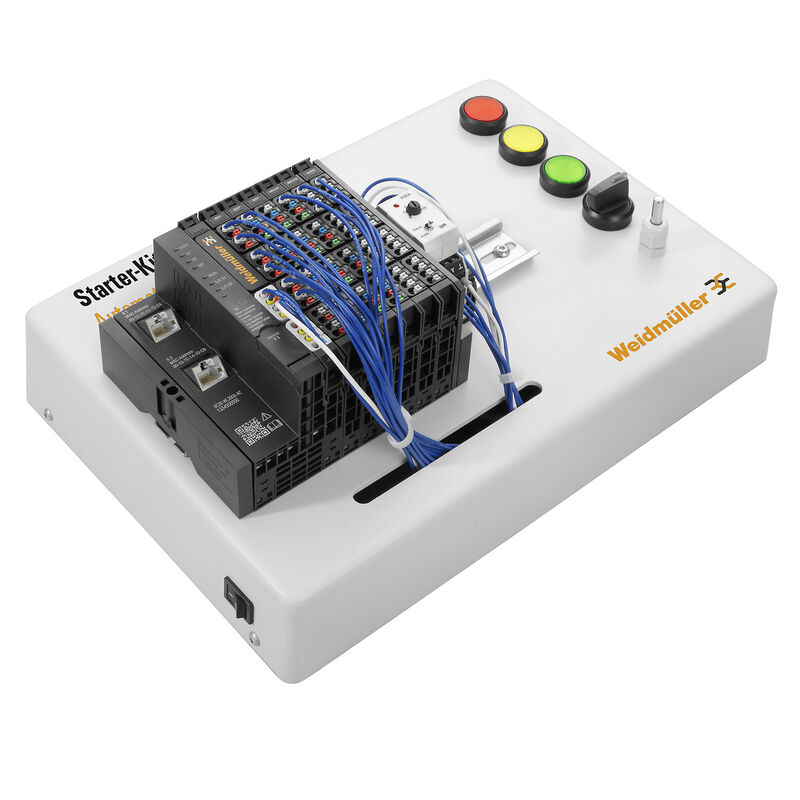

種別 | STARTERKIT-UC20-WL2000-AC |
GTIN (EAN) | 4050118681536 |
数量 | 1 items |
正味重量 | 800 g |
RoHS 対応状況 | 準拠 (免除あり) |
RoHS 適用除外(該当する場合/既知の場合) | 7a, 7cI |
REACH SVHC | Lead 7439-92-1 |
SCIP | 8eb7beda-d24b-434b-95c4-ddc050faf33c |
エンジニアリングデータ |
[CAD data -- Engineering Drawing - STARTERKIT-UC20-WL2000-AC](https://mdcop.weidmueller.com/mediadelivery/asset/900_102551)
[CAD data -- Wiring diagram - STARTERKIT-UC20-WL2000-AC](https://mdcop.weidmueller.com/mediadelivery/asset/900_102555) [Quick start guide -- Modbus - Understanding Coils and Register](https://mdcop.weidmueller.com/mediadelivery/asset/900_246227) [Quick start guide -- Starter-Kit | u-control Quick Start Guide for Starter-Kit Web - Three-state Temperature Controller](https://mdcop.weidmueller.com/mediadelivery/asset/900_246236) [Setup of Procon Web ES on u-OS](https://mdcop.weidmueller.com/mediadelivery/asset/900_298810) |
ソフトウェア | [Project Examples and Templates -- Example program Project Dekora.ucp](https://mdcop.weidmueller.com/mediadelivery/asset/900_102554) |
ユーザ文書 |
[Weidmüller software license agreement V1.0](https://mdcop.weidmueller.com/mediadelivery/asset/900_96935)
[Quickstartguide for Starterkits u-control](https://mdcop.weidmueller.com/mediadelivery/asset/900_102547) [Project setup guide - u-create studio - EN](https://mdcop.weidmueller.com/mediadelivery/asset/900_157675) [Quick reference / Instruction inlay - u-control web hardware](https://mdcop.weidmueller.com/mediadelivery/asset/900_206393) |
カタログ | [Catalogues in PDF-format](LINK/Catalog.html) |
ETIM 6.0 | EC000236 |
ETIM 7.0 | EC000236 |
ETIM 8.0 | EC000236 |
ETIM 9.0 | EC000236 |
ECLASS 9.0 | 27-24-22-07 |
ECLASS 9.1 | 27-24-22-07 |
ECLASS 10.0 | 27-24-22-07 |
ECLASS 11.0 | 27-24-22-07 |
ECLASS 12.0 | 27-24-22-07 |
ECLASS 13.0 | 27-24-22-07 |
ECLASS 14.0 | 27-24-22-07 |
ROHS | 適合 |
