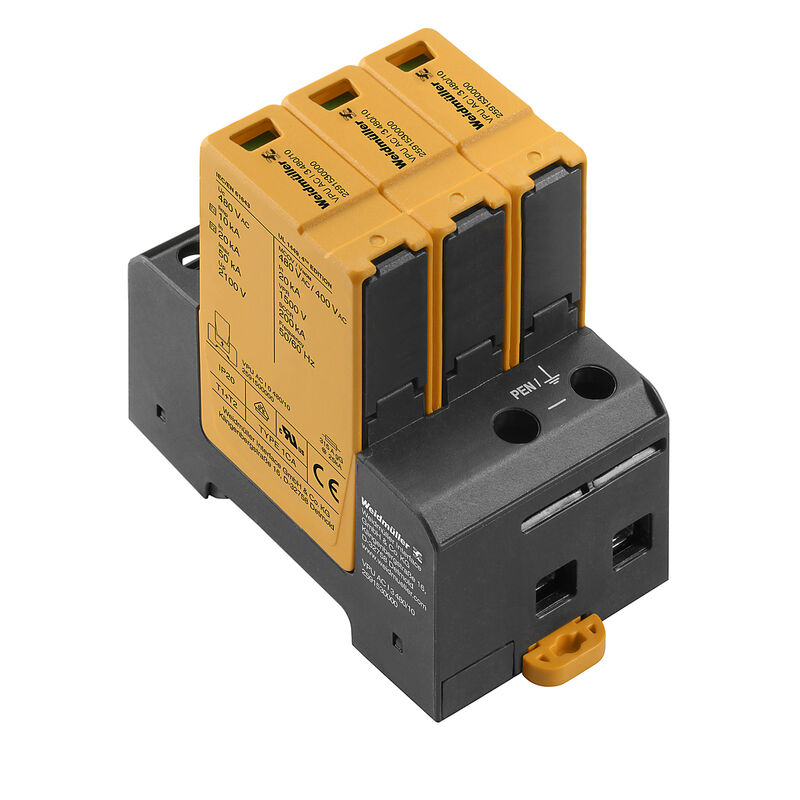

VPU AC I 3 480/10
VPU AC I 3 480/10
Symbole électrique
Schematic circuit diagram

VPU AC I 3 480/10

Surge voltage arrester, Low voltage, Surge protection, TN-C

Référence produit 2591530000
Ouvrir dans le configurateur
Fiche technique Engineering Support Product Downloads
Tartozékok 4 Pótalkatrészek 2 Kapcsolódó termékek 3
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Rated data UL General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Data připojení Electrical data General data Guarantee Important note Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[Sito web UL](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E3542610000

General ordering data

Version
Surge voltage arrester, Low voltage, Surge protection, TN-C
Order No.
2591530000
Type
VPU AC I 3 480/10
GTIN (EAN)
4050118599411
Qty.
1 items

Dimensions and weights

Depth
91 mm
Depth (inches)
3,583 inch
Height
90 mm
Height (inches)
3,543 inch
Width
54 mm
Width (inches)
2,126 inch
Net weight
565 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Probability of failure

MTBF
15 a

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Température ambiante (fonctionnement), max.
85 °C
Rated Voltage UN
400 V
MCOV (L/N-PE)
480 V
SCCR
200 kA
In
20 kA
Kategorie
SPD TYPE 1CA
Temperatura ambiente (funcionamiento), min.
-40 °C
Nr certyfikatu (cURus)
E3542610000
MODE
all modes
VPR (L-L)
2 500 V
VPR (L-PE)
1 500 V
Voltage type
AC

General data

Affichage fonction optique
green = OK; red = arrester is defective - replace
Brennbarkeitsklasse nach UL 94
V-0
Einsatzhöhe
≤ 4000 m
Farbe
orange
black
Forme
Installation housing; 3TE
Insta IP 20
Nosná lišta
TS 35
Schutzart
IP20 in installed state
Segment
Power distribution
Version
Surge protection

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
IV

Rated data IEC / EN

Discharge current Imax (8/20µs) wire-PE
50 kA
Discharge current In (8/20µs) wire-PE
20 kA
Energy coordination (≤10 m)
Type I
Type II
Type III
Follow-on current extinguishing capability Ifi
Not available due for technical reasons
Frequency range, max.
60 Hz
Frequency range, min.
50 Hz
Integrated back-up fuse
No
Leakage current at Un
0,6 mA
Lightning test current Iimp (10/350 µs) (L-PE)
10 kA
Low voltage network
TN-C
Mains voltage
400 V / 690 V
Max. continuous voltage, Uc (AC)
480 V
Number of poles
3
Protection level Up at IN (L/N-PE)
≤ 2.1 kV
Rated voltage (AC)
400 V
Requirements category acc. to IEC 61643-11
Type I
Type II
Requirements class, acc. to EN 61643-11
T1
T2
Response time / fallback time
≤ 25 ns
Short-circuit current rating ISCCR
50 kA
Signalling contact
No
Standards
IEC 61643-11
EN 61643-11
UL 1449
Temporary surge voltage (over-voltage) - TOV
762 V
Voltage type
AC

Data připojení

Longueur de dénudage
18 mm
Vezetékcsatlakozás-technika
Screw connection
Type of connection
Screw connection
Longueur de dénudage, raccordement nominal
18 mm
Tightening torque, min.
3 Nm
조임 토크, 최대
4,5 Nm
Clamping range, rated connection
16 mm²
Clamping range, min.
1,5 mm²
Clamping range, max.
35 mm²
Wire cross-section, solid, min.
1,5 mm²
Wire cross-section, solid, max.
35 mm²
Wire connection cross section, finely stranded, min.
1,5 mm²
Wire connection cross section, finely stranded, max.
25 mm²
Connection cross-section, stranded, min.
1,5 mm²
Connection cross-section, stranded, max.
35 mm²

Electrical data

Type de tension
AC

General data

Nombre de pôles
3
Degré de protection
IP20 in installed state
Colour
orange
black

Guarantee

Période
5 years

Important note

Product information
For use in DC applications, please use the fuse of SIBA Type NH2XL aR/aSF DC 1500 V
Notes
Only applicable to IT power systems where the earth on the distribution transformer is interconnected with the earth on the consumer side (RE=RA in Figure 44.A1 of IEC 60634-4-44:2018).

Product images

Classifications

ETIM 8.0
EC001457
ETIM 9.0
EC001457
ETIM 10.0
EC001457
ECLASS 14.0
27-17-12-04
ECLASS 15.0
27-17-12-04
