VPU AC II 0 750/35
VPU AC II 0 750/35
Electric symbol
Circuit diagram

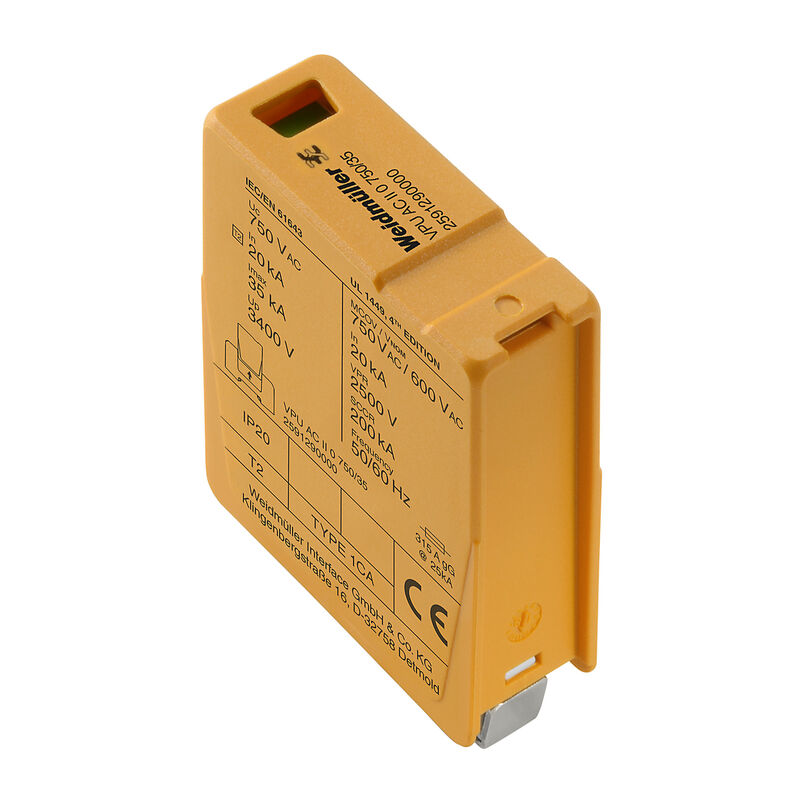

VPU AC II 0 750/35

Spare arrester, Surge protection, Single-phase, TN

Ürün No. 2591290000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 3 İlgili ürünler 9
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Connection data, remote alert General data Rated data IEC / EN Connection data Electrical data General data Guarantee Product images Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/756ea985-024d-4142-85a7-acc2e9775394/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E354261

General ordering data

Változat
Spare arrester, Surge protection, Single-phase, TN
N. d’ordine
2591290000
유형
VPU AC II 0 750/35
GTIN (EAN)
4050118599640
Кол.
1 adet

Dimensions and weights

Mélység
64 mm
Depth (inches)
2,52 inch
Posizione verticale
45 mm
Height (inches)
1,772 inch
Larghezza
18 mm
Width (inches)
0,709 inch
Čistá hmotnost
84 g

Temperatures

Temperatura di magazzinaggio
-40 °C...85 °C
Temperatura ambiente
-40 °C…85 °C
Temperatura d'esercizio
-40 °C...85 °C
습도
5 - 95% rel. humidity

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Omgivningstemperatur (drift), max.
85 °C
Номинальное напряжение, UN
600 V
VPR (L/N-PE)
2.500 V
MCOV (L/N-PE)
750 V
SCCR
200 kA
In
20 kA
Categoría
SPD TYPE 1CA
Környezeti hőmérséklet (működési), min.
-40 °C
Certificate No. (cURus)
E354261
VPR (L-PE)
2.500 V
Voltage type
AC

Connection data, remote alert

Connection type
PUSH IN

General data

Colour
orange
Design
Installation housing; 1TE
Mounting rail
TS 35
Operating altitude
≤ 2000 m
≤ 4000 m
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP20 in installed state
Segment
Power distribution
UL 94 flammability rating
V-0
Version
Surge protection

Rated data IEC / EN

Capacidad de extinción de corriente de seguimiento Ifi
Follow current need not be taken into account
Combined pulse UOC
6 kV
Discharge current (type III)
3 kA
Discharge current Imax (8/20µs) wire-PE
35 kA
Discharge current In (8/20µs) wire-PE
20 kA
Energy coordination (≤10 m)
Type II
Type III
Frequency range, max.
60 Hz
Frequency range, min.
50 Hz
Fuse protection
No Fuse neccessary ≤315 A gG
Integrated back-up fuse
No
Leakage current at Un
0,3 mA
Low voltage network
Single-phase
TN
Max. continuous voltage, Uc (AC)
750 V
Number of poles
1
Protection level Up at IN (L/N-PE)
≤ 3.4 kV
Rated voltage (AC)
690 V
Requirements category acc. to IEC 61643-11
Type II
Type III
Requirements class, acc. to EN 61643-11
T2
T3
Response time / fallback time
≤ 25 ns
Short-circuit current rating ISCCR
25 kA
Signalling contact
No
Standards
IEC61643-11, EN61643-11
UL 1449
IEC 61643-11
EN 61643-11
Voltage type
AC

Connection data

Stripping length
18 mm
Type of connection
Plug-in connection
Screw connection
Wire cross-section, solid, min.
1,5 mm²
Wire cross-section, solid, max.
35 mm²
Wire connection cross section, finely stranded, max.
25 mm²

Electrical data

Voltage type
AC

General data

Number of poles
1
Protection degree
IP20 in installed state
Colour
orange

Guarantee

Time interval
5 years

Product images

Classifications

ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 14.0
27-17-12-02
ECLASS 15.0
27-17-12-02
