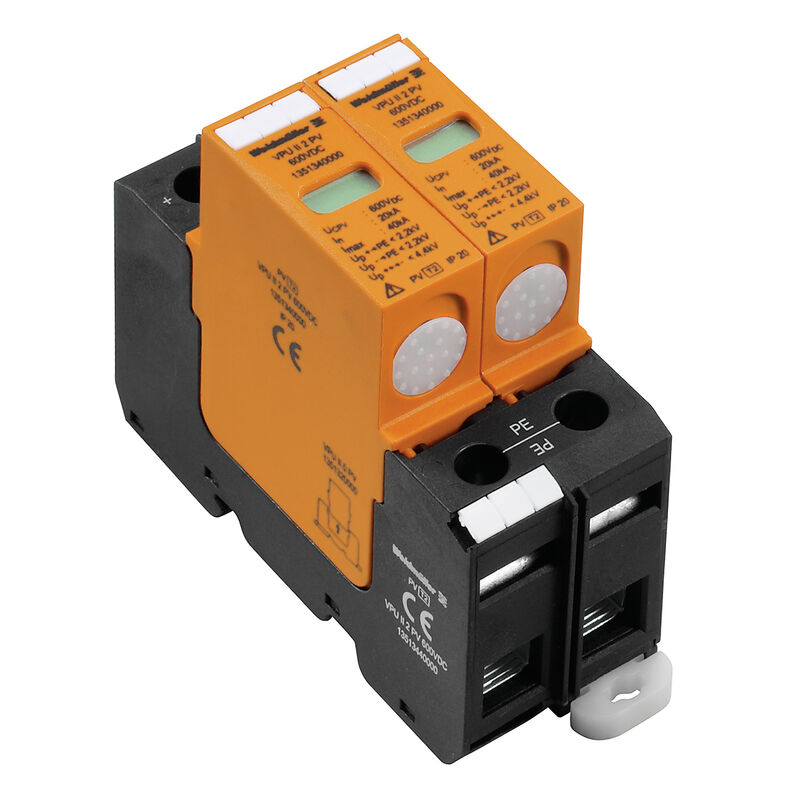

VPU II 2 PV 600V DC
VPU II 2 PV 600V DC
Electric symbol
Circuit diagram

VPU II 2 PV 600V DC

Dette produkt er snart ikke længere tilgængeligt.

Alternative produkt: 2857060000

Surge voltage arrester, Low voltage, without telecomm. contact

Produkt ID 1351340000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 1 Reservedele 1 Anvendte produkter 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Insulation coordination acc. to EN 50178 Photovoltaic technical data Rated data IEC / EN Connection data Electrical data General data Classifications Tender specification sheets

Approvals

Сертификаты
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Surge voltage arrester, Low voltage, without telecomm. contact
Order No.
1351340000
Type
VPU II 2 PV 600V DC
GTIN (EAN)
4050118158731
Qty.
1 Styk
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1774908000000)/
Alternative product
[2857060000](~/p/2857060000)

Dimensions and weights

Djup
69 mm
Depth (inches)
2,717 inch
Height
94 mm
Height (inches)
3,701 inch
Width
35,6 mm
Width (inches)
1,402 inch
Mounting dimension - height
75 mm
Net weight
290 g

Temperatures

Storage temperature
-40 °C...80 °C
Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Colour
black
orange
Design
Installation housing; 2TE
Insta IP 20
Mounting rail
TS 35
Operating altitude
≤ 2000 m
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP20
UL 94 flammability rating
V-0
Version
without telecomm. contact

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Photovoltaic technical data

Ableitstrom In (8/20 µs)
12.5 kA
Anforderungsklasse
Type II
Einsatzhöhe im geerdeten PV-System
≤ 2000 m
Max. kontinuierliche Betriebsspannung DC UCPV-Modus +/- , -/PE , +/PE
600 V
Nivel de protección Up (-/PE)
≤ 2.2 kV
Operating height in ungrounded PV system
≤ 2000 m
Schutzpegel Up (+/-)
≤ 4.4 kV
Schutzpegel Up (+/PE)
≤ 2.2 kV
Short-circuit curent ISCPV
200 A
Spannung der PV Anlage, max. UCPV
600 V
Standards
EN 50539-11
Total discharge current Itotal ( 8/20µs)
40 kA

Rated data IEC / EN

Leckstrom bei Un
30 µA
Nombre de pôles
2
Norme
EN 50539-11
Signalling contact
No
Temps de réponse / temps de réaction
≤ 25 ns
Tensione permanente DC max.
600 V
Tensión nominal (DC)
600 V
Tensión PV conforme a IEC 60364-7-712
<600 V
Typ SPD
T2
Voltage type
DC
Встроенный резервный предохранитель
No
방전 전류 In (8/20µs) 와이어-PE
20 kA

Connection data

Stripping length
15 mm
Type of connection
Screw connection
Stripping length, rated connection
15 mm
Tightening torque, min.
2 Nm
Tightening torque, max.
3 Nm
Clamping range, rated connection
16 mm²
Clamping range, min.
1,5 mm²
Clamping range, max.
35 mm²
Wire cross-section, solid, min.
1,5 mm²
Wire cross-section, solid, max.
16 mm²
Wire connection cross section, finely stranded, min.
1,5 mm²
Wire connection cross section, finely stranded, max.
25 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
50 mm²
Connection cross-section, stranded, min.
1,5 mm²
Connection cross-section, stranded, max.
50 mm²

Electrical data

Voltage type
DC

General data

Number of poles
2
Protection degree
IP20
Colour
black
orange

Classifications

ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 14.0
27-17-90-90
ECLASS 15.0
27-17-90-90

Tender specification sheets

Long specification
Multi-pole surge voltage arrestor according to the requirements of Class II acc. to IEC 50539-11. Consisting of V0 material, the arrestor serves as overvoltage protection and is used in applications according to IEC 50539-12. The use of a high-performance varistor meets the inspection requirements for Class II surge protection systems on the basis of the standards. The arrestor is installed in the vicinity of the equipment that needs protection, in a commercially available installation/electrical distribution enclosure. With thermal separation device on the varistor. If protection is no longer available, the colour in the display window changes from green to red. Rated voltage: 600 VAC In/max (8/20 µs): 20/40 kA, protection level < 2.2 kV l, type: Weidmüller VPU II 2 PV 600 V/40 kA, Order No. 1351340000 or equivalent
Short specification
Class II arrester with In/Imax: 20/40 kA suitable for 600 V PV systems. Protection level < 2.2 kV. Type: Weidmüller VPU II 2 PV 600 V/40 kA Order no. 13513400000 or equivalent
