ZQV 4N/5 BL
Obrázek výrobku

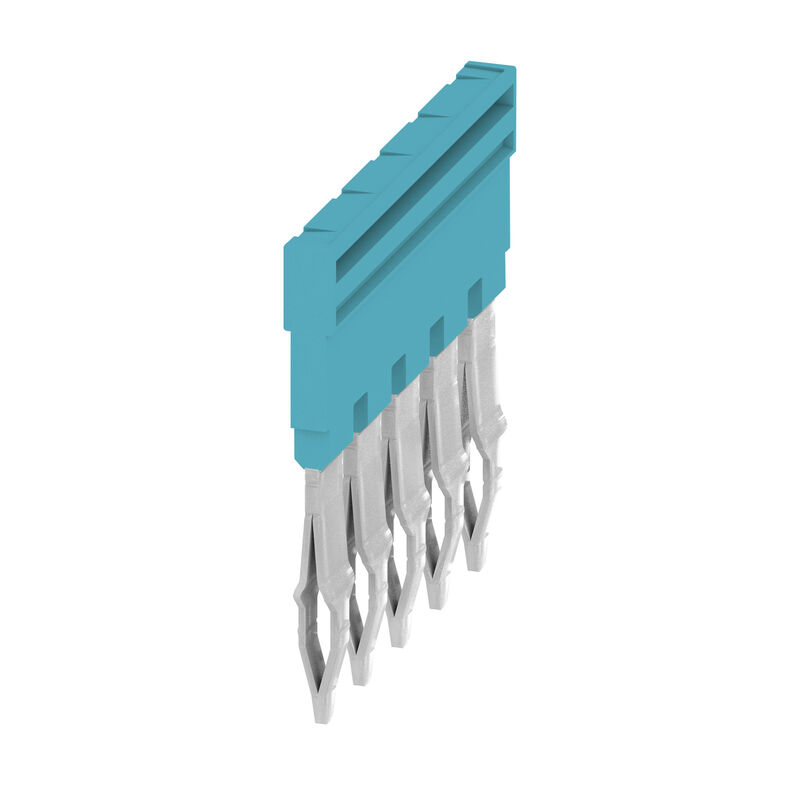

ZQV 4N/5 BL

Cross-connector (terminal), Plugged, blue, 32 A, Number of poles: 5, Pitch in mm (P): 6.10, Insulated: Yes, Width: 28.2 mm

Produkt-ID 1528140000
Ladda ner datablad Mühendislik desteği Ürün İndirmleri
aksesuarıdır 466 Münferit parçaları 1 İlgili ürünler 460
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Additional technical data Dimensions General Rating data Important note Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/63e27dd8-88d2-46a7-9840-58fe3637ac20/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/d1a278f5-5acb-4199-8c83-b599817086bc/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/106d65db-9035-4009-8a4b-55480269373e/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Wersja
Cross-connector (terminal), Plugged, blue, 32 A, Number of poles: 5, Pitch in mm (P): 6.10, Insulated: Yes, Width: 28.2 mm
Order No.
1528140000
Тип
ZQV 4N/5 BL
GTIN (EAN)
4050118333015
Qty.
60 adet

Dimensions and weights

Глубина
27,95 mm
Depth (inches)
1,1 inch
Высота
2,8 mm
Height (inches)
0,11 inch
Ширина
28,2 mm
Width (inches)
1,11 inch
Net weight
1,433 g

Temperatures

Lagertemperatur
-25 °C...55 °C
Omgivningstemperatur
-5 °C…40 °C
Drifttemperatur
-60 °C...130 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
blue
UL 94 flammability rating
V-0

Additional technical data

Explosion-tested version
Yes
Type of fixing
Plugged

Dimensions

Pitch in mm (P)
6,1 mm

General

Number of poles
5

Rating data

Rated voltage
400 V
Nominal current
32 A

Important note

Produktinformation
Due to stability and temperature reasons It is only possible to break out 60% of contact elements. The usage of cross connectors reduces the rated voltage to 400 V.The voltage reduced to 25 V if cut cross connection with blank cut edges are used.

Classifications

ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
