AK 4/O.ZA

AK 4/O.ZA

Tämä tuote ei ole pian enää saatavana.

Available until: 30.06.2026

Alternative product: 0294360000

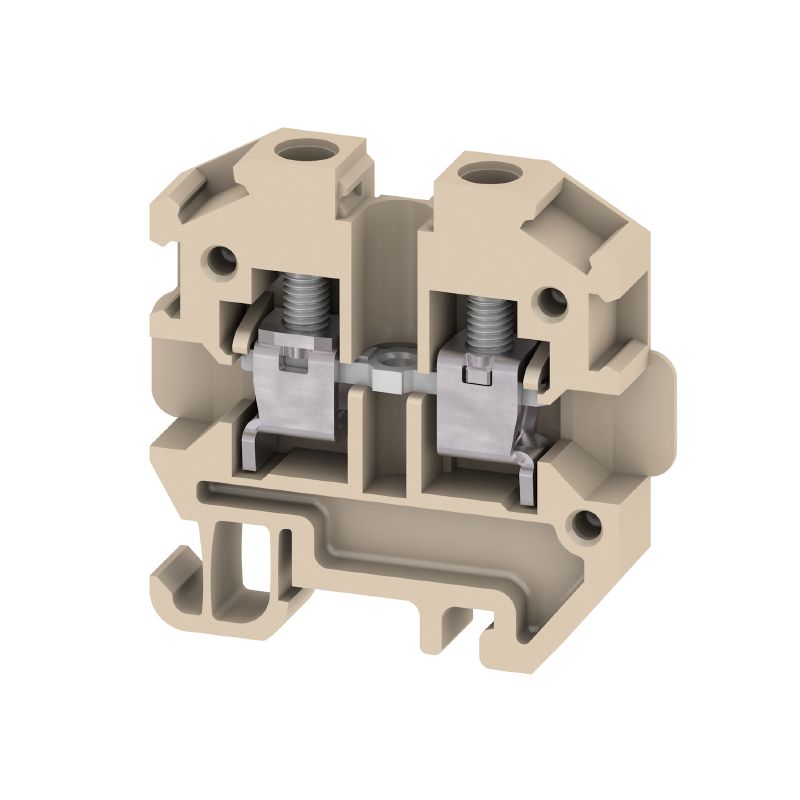

Průchozí svorkovnice, Šroubové připojení, béžová / žlutá, 4 mm², 32 A, 690 V, Počet připojení: 2

Tuotteen tunnus 0489560000
Avaa konfiguraattorissa
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 12 Samankaltaiset tuotteet 51
Approvals Všeobecné objednací údaje Dimensions and weights Teploty Shoda produktu s prostředím Material data Specifikace systému Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) Dimensions General Rating data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Shoda

Všeobecné objednací údaje

Version
Průchozí svorkovnice, Šroubové připojení, béžová / žlutá, 4 mm², 32 A, 690 V, Počet připojení: 2
Order No.
0489560000
Type
AK 4/O.ZA
GTIN (EAN)
4008190049737
Qty.
100 items
Delivery status
This article will no longer be available in the future.
Available until
30.06.2026
Alternative product
[0294360000](~/p/0294360000)

Dimensions and weights

Depth
33 mm
Hloubka (v palcích)
1,299 inch
Height
36,5 mm
Höhe (inch)
1,437 inch
Width
6 mm
Width (inches)
0,236 inch
Net weight
6,39 g

Teploty

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
연속 작동 온도, 최소
−50 °C
Continuous operating temp., max.
100 °C

Shoda produktu s prostředím

RoHS Compliance Status
V souladu bez výjimky
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
PA 66
Colour
beige / yellow
UL 94 flammability rating
V-2

Specifikace systému

Version
Šroubové připojení
na šroubovací propojku
Jeden konec bez konektoru
Nutná koncová deska
Yes
Количество независимых точек подключения
1
Number of levels
1
Number of clamping points per level
1
Number of potentials per tier
1
Levels cross-connected internally
Nej
PE connection
No
Mounting rail
TS 15
N-Funktion
No
PE function
No
Fonction PEN
No

Additional technical data

Lati aperti
right
Numero di morsetti uguali
10
rodzaj montażu
Snap-on
폭발 테스트 버전
No

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

6 mm²
Blade size
0.6 x 3.5 mm
Clamping range, min.
0,13 mm²
Clamping screw
M 3
Connection cross-section, finely stranded, min.
0,13 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,13 mm²
Connection direction
on side
Gauge to IEC 60947-1
A3
Number of connections
2
Stripping length
8 mm
Tightening torque, max.
0,8 Nm
Tightening torque, min.
0,6 Nm
Torque level with DMS electric screwdriver
2
Twin wire-end ferrules, max.
1,5 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 24
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13 mm²
Wire connection cross-section, solid core, max.
6 mm²
Wire connection cross-section, solid core, min.
0,13 mm²

Dimensions

TS 15 offset
16 mm

General

Mounting rail
TS 15
Number of poles
1
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 24

Rating data

Rated cross-section
4 mm²
Rated voltage
690 V
Tensión nominal DC
690 V
Nominal current
32 A
Current at maximum wires
41 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1 mΩ
Rated impulse withstand voltage
8 kV
Pérdida de potencia según la norma IEC 60947-7-x
1,02 W
Pollution severity
3

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
